XIMEA MT023 Industrial camera

  • Category: Camera
Operating System:
Operating System:
Self or Bus Powered:
Self Powered
Self or Bus Powered:
Bus Powered
Number of Thunderbolt Ports:
Thunderbolt Version:

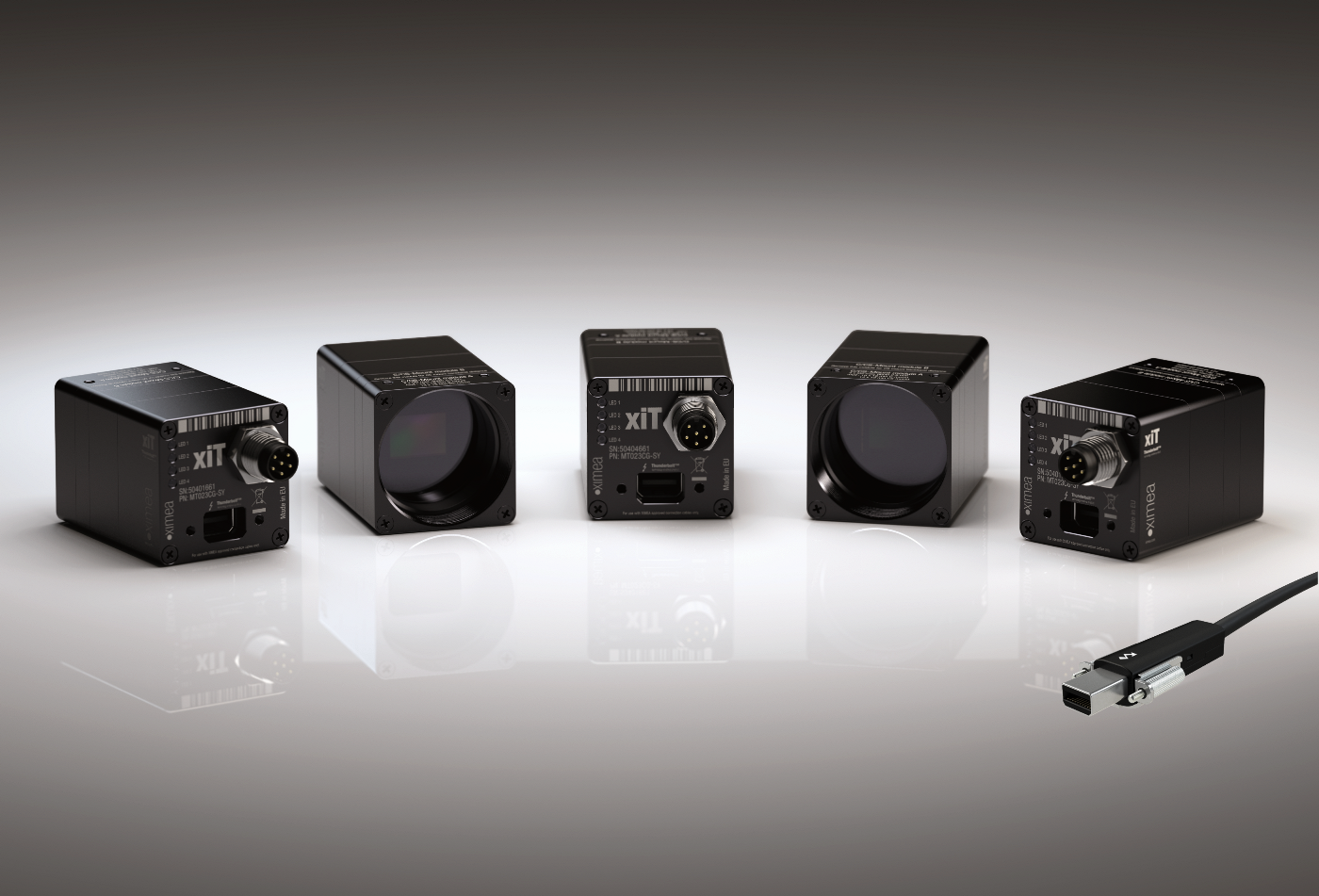

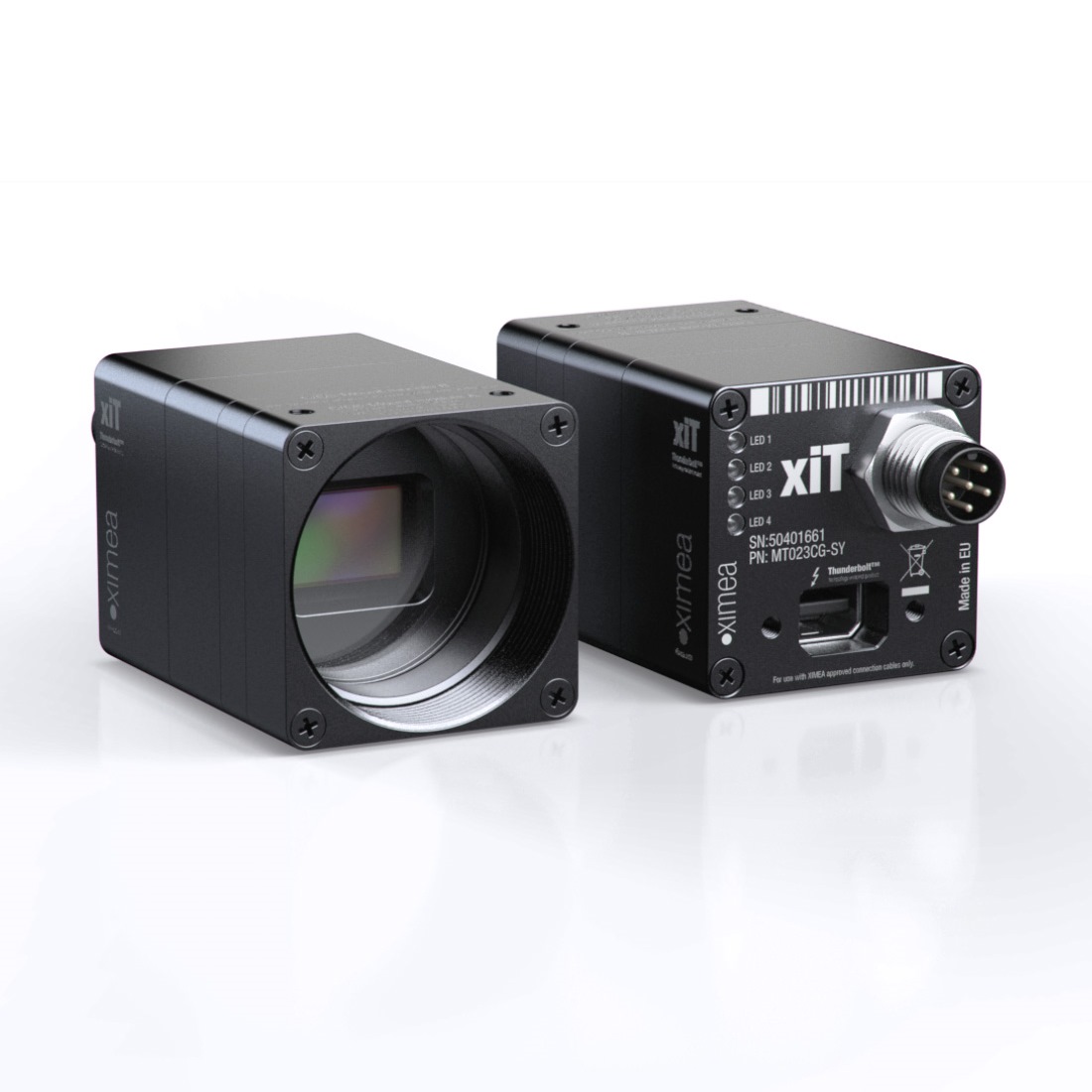

Thunderbolt™ enabled camera with Sony IMX174 CMOS sensor for industrial and scientific use. Featuring technology called Pregius™ these new sensors deliver outstanding images and with help of Thunderbolt™10Gbit/s throughput the camera is capable to provide full resolution of 2.3Mpix at 12bit/pix 128fps, or 10bit/pix at 165fps.
Compact and robust design results in 26x26x38 mm and 46 grams with 4.5 Watt power consumption that is supplied by the Thunderbolt™ cable in the bus powered mode thus removing the need for additional power cables or frame grabbers. External power supply in self-powered mode is also possible and enables the use of fiber optic cables increasing distance range up to 60m.
