Thunderbolt 3 Docking Station 8K, USB Type-C

  • Category: Adapter/Expansion, Dock
Operating System:
Operating System:
Self or Bus Powered:
Self Powered
Self or Bus Powered:
Bus Powered
Number of Thunderbolt Ports:
Thunderbolt Version:
Thunderbolt 3

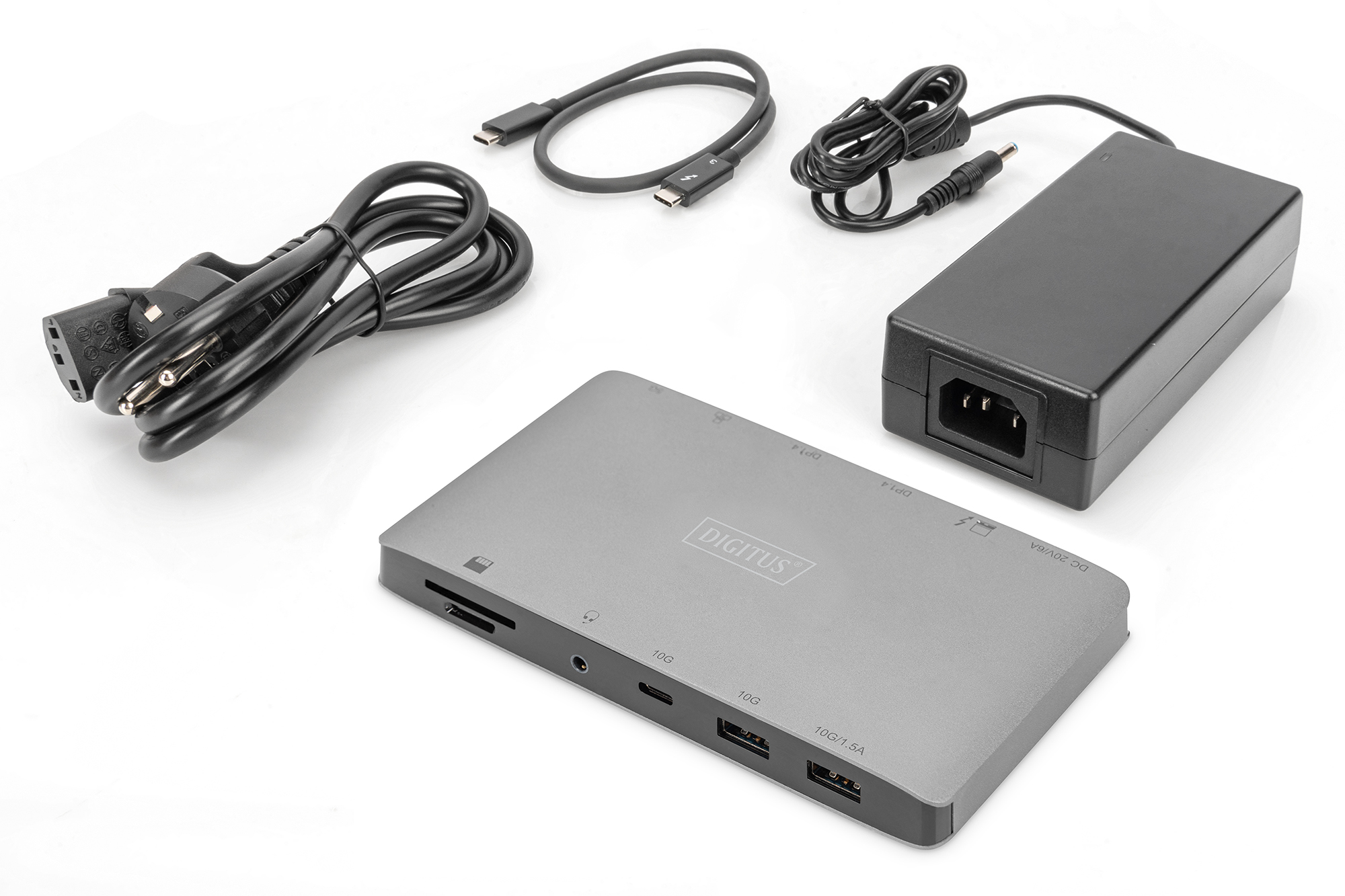

This is a Thunderbolt Certified all-in-one Thunderbolt™ 3 Docking. With Intel Thunderbolt 3Titan Ridge solution, this docking enables you to extend your TBT3/Multi-Function DisplayPort (MFDP) Type-C host to be multiple ports like video/USB/Ethernet/SD/Micro SD/audio ports which can be connected to displays, USB devices, Ethernet source, memory cards, headset, offering an integrated solution for high quality office working and home entertainment. Besides, a 120W power adapter is provided to support the functioning of this product and meanwhile charge for the host.

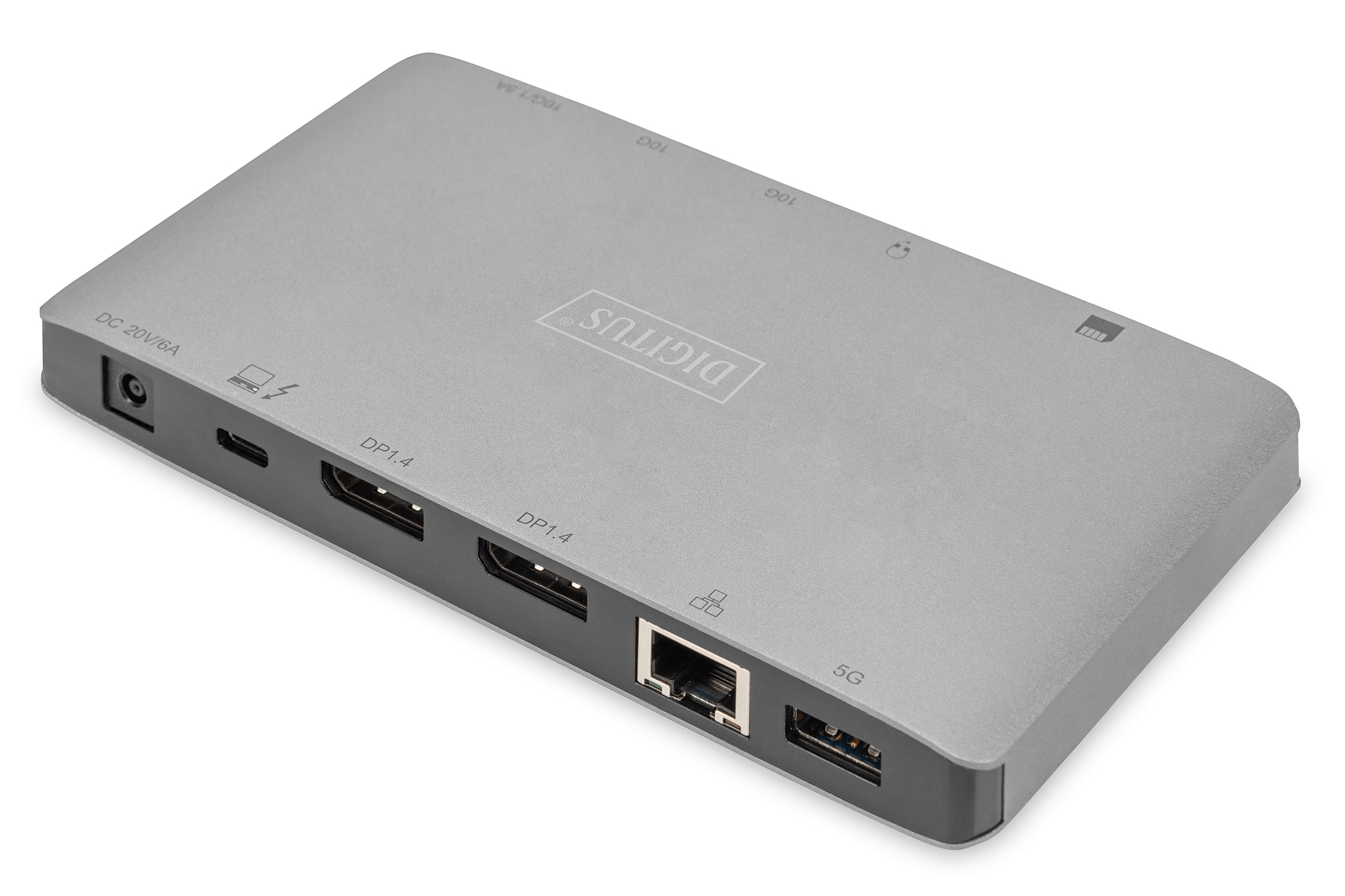

Input Thunderbolt™ 3 Receptacle x1
DC Power Jack x1
Output DisplayPort Receptacle x2
RJ45 Receptacle x1
USB3.2-A 5GReceptacle x1
USB3.2-A 10GReceptacle x2
USB Type-C 10GReceptacle x1
Audio 3.5mm combo jack x1
SD3.0 socket x1
MSD3.0 socket x1
