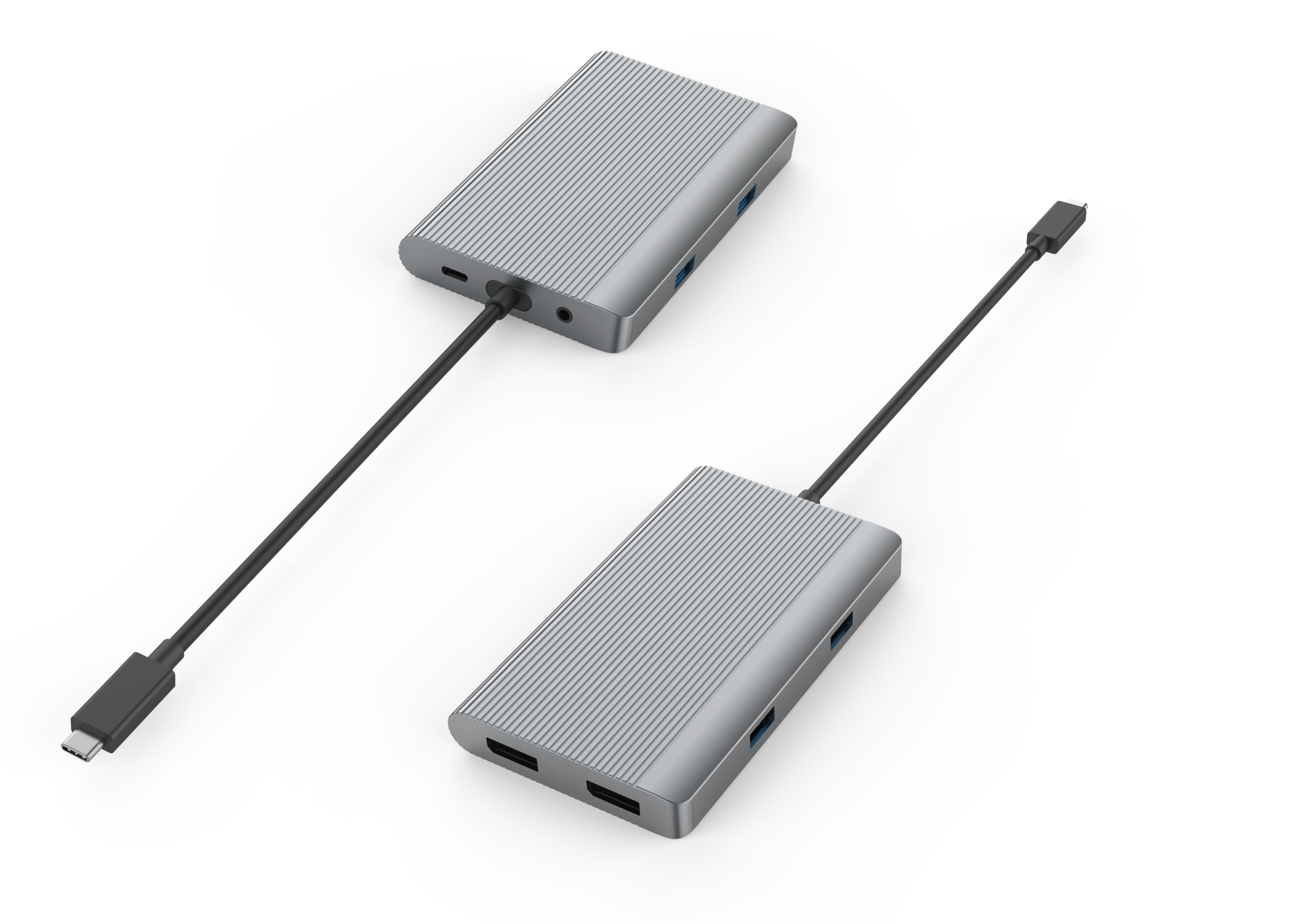

Thunderbolt™ 3 Portable Dock with PD Charging (Model: TB3-DOCK05)

  • Category: Dock
Operating System:
Operating System:
Self or Bus Powered:
Self Powered
Self or Bus Powered:
Bus Powered
Number of Thunderbolt Ports:
Thunderbolt Version:
Thunderbolt 3

Product Description:
This is a Thunderbolt certified Portable Dock for extending Thunderbolt 3 port to be multiple ports, supporting DP1.4 video max 8K, USB3.2 Gen2 data transmission max 10Gbps and Hi-Res max 384KHz audio. This dock supports PD Charging with max 60W host charging. Besides, it also supports both self-power and bus-power for charging.

Input: Thunderbolt™ 3 Receptacle x1
USB3.1-A 10G Receptacle x2
DisplayPort Receptacle x2
3.5mm Audio combo jack x1
USB Type-C Receptacle x1

Support to work on Thunderbolt 3 host, not support to work on Type-C host;
Thunderbolt 3 Male: Titan Ridge Solution, max 40Gbps bandwidth (video+data) and max 60W PD Charging for host ( when 75W or above PD charger is connected);
DisplayPort Femalex2: support DisplayPort 1.4, output max 8K/30Hz+4K/30Hz or dual max 4K/60Hz;
USB-A Female 10GX2: 1) when PD adapter is connected, 2 USB-A support max 10Gbps data transmission; 2) when PD adapter is not connected, one USB-A supports max 10Gbps, another USB-A supports USB2.0 with max 480Mbps,first come, first serve.
Note: USB2.0 function will not recover automatically to be USB 10G, to recover the 10G function when PD adapter is connected, please re-plug the 10G USB device. 3) support max 900mA downstream charging as USB 3.1 port; 4) support max 500mA downstream charging as USB2.0 port;
Audio 3.5mm combo jack: support phone out with digital audio max 44.1/48/96/192KHz/384KHz Sample Rate, 16/24/32-bit sampling rate; mic in with digital audio max 96KHz/24bit sampling rate; support CTIA&OMTP auto detection;
Type-C Femalex1 (PD Charging): 15W is reserved for the function of this product, the rest power will be used for charging host; support max 60W host charging (when 75W or above power is connected). Note: To avoid data loss or corruption, it is suggested not to plug out PD adapter while working.

Operation Temperature: 0℃ to +45℃
Storage Temperature: 0℃ to +70℃
Size: 124*75*14(mm)
Weight: 196.2g
