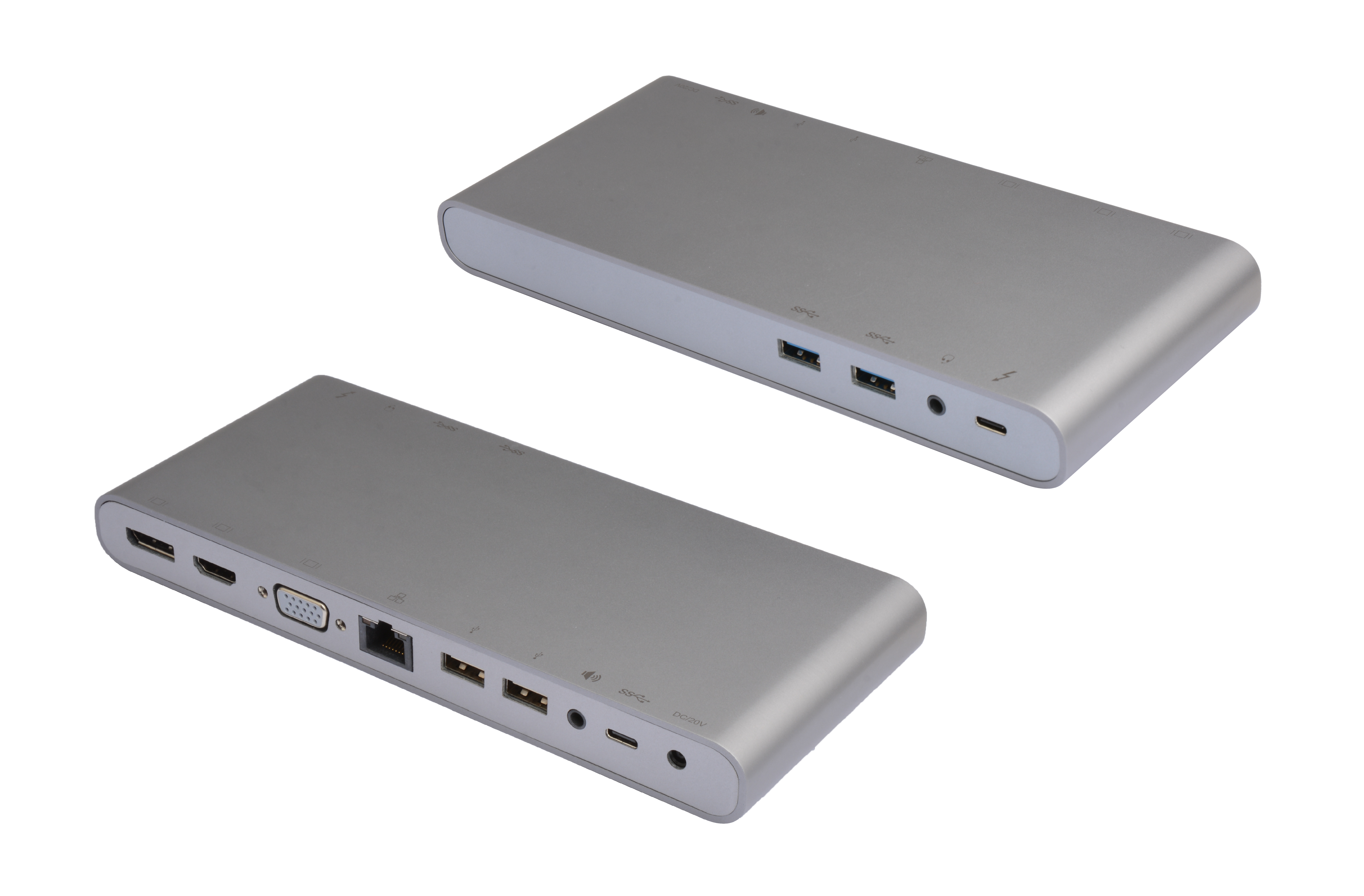

Thunderbolt™ 3 Docking (Model: TB3-DOCK01)

  • Category: Dock
Operating System:
Operating System:
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
Thunderbolt Version:
Thunderbolt 3

Product Description:
This Thunderbolt™ 3 Docking offers integrated solution for power, data, Ethernet, audio and video. It allows you to connect Thunderbolt™ 3 based Mac and Windows PC to HDMI, VGA, DisplayPort display for video transmission, four USB-A and one Type-C female ports for data transmission, one stereo port to connect to headset, one audio output to connect to amplifier, one RJ45 port to get access to network. For the three video ports, HDMI and DisplayPort or VGA and DisplayPort can show different pictures independently under MST mode, HDMI and VGA are alternative and HDMI is priority. This docking can work on two 4k/60Hz. Besides, it has one DC port for power supply with max 120W.

Thunderbolt™ 3 Female x1
DC Power Jack x1
DisplayPort Female x1
HDMI Female x1
VGA Female x1
RJ45 Female x1
USB3.0-A Female x2
USB2.0-A Female x2
USB Type-C Female x1
Stereo & Mic Jack x1
Stereo Jack x1

Support Thunderbolt™ 3 Female input, via a certified Thunderbolt™ 3 40G cable connect to Thunderbolt™ 3 Host;
Support Thunerbolt™ 3 Host with Windows 10, MacOS 10.12 and lower versions;
Support max 40Gbps Bandwidth, video + data;
Support three video output, DisplayPort, HDMI and VGA. The HDMI and VGA are alternative; HDMI has high priority then VGA;
Support dual 4K/60Hz different videos output via DisplayPort and HDMI;
Support two USB3.0-A and a Type-C port with max 5Gbps data transmission;
Support two USB2.0-A port with max 480Mbps data transmission;
Support RJ45 port with 10/100/1000Mbps bandwidth;
Front stereo port supports both microphone and headphone;
Backside stereo port supports speaker box or amplifier, this port will be disabled when the front stereo port is connected;
DC Jack supports 120W(20V/6A) power input, and there is 60W(20V/3A) power supply for the Host.

Operation Temperature: 0℃ to +45℃
Storage Temperature: 0℃ to +70℃
Size: 195*85*22 (mm)
Weight: 430g
