• Category: Adapter/Expansion
Abaco Systems, Inc.
Operating System:
Self or Bus Powered:
Bus Powered
Thunderbolt Version:
Thunderbolt 3

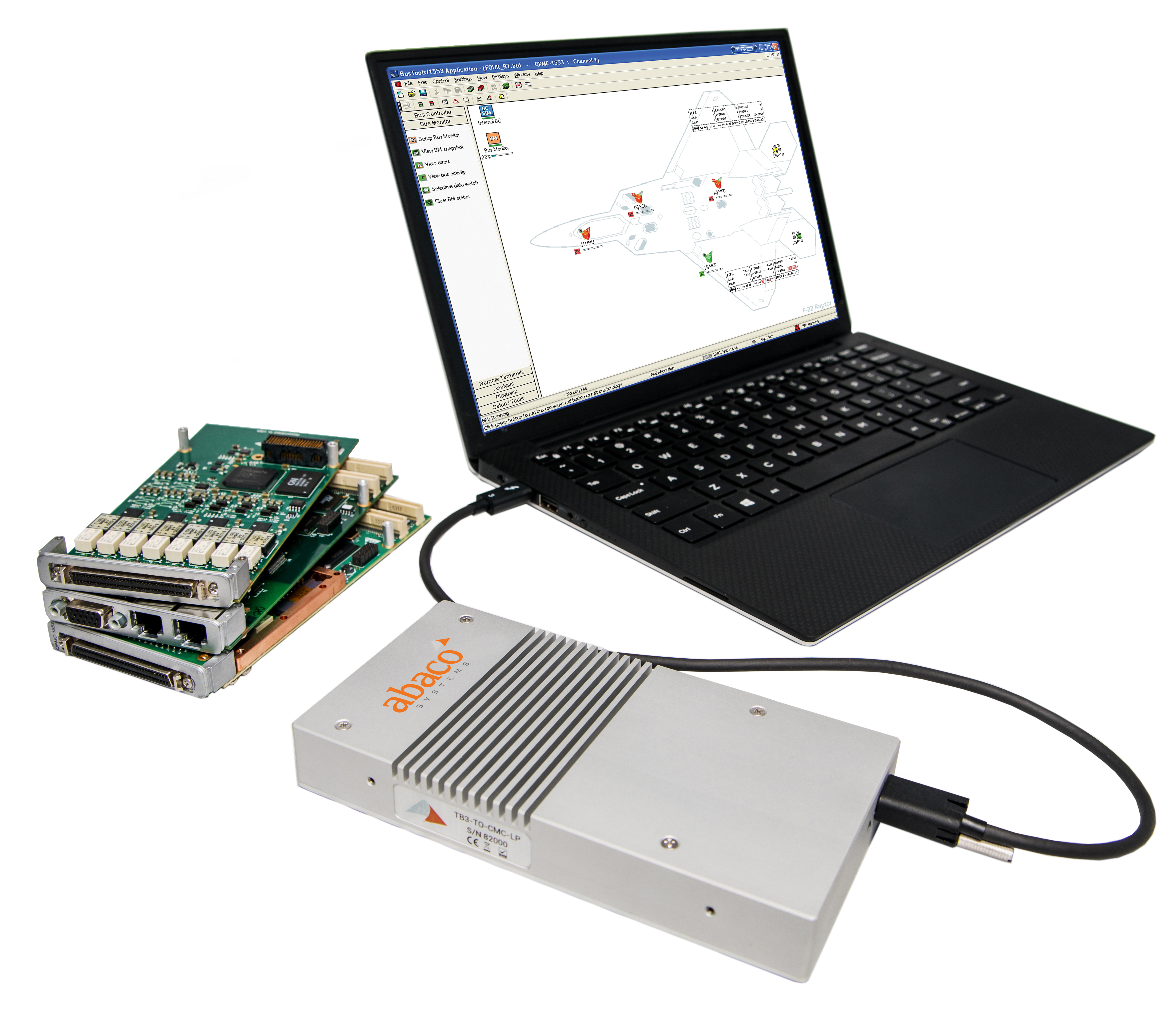

For the first time the vast array of readily available XMC and PMC modules have been freed from the confines of a SBC (Single Board Computer) or carrier card. The TB3-TO-CMC-LP can host any front I/O Common Mezzanine Card (PMC or XMC) with low host latency and high bandwidth thanks to the 40 Gbps transfer speed of Thunderbolt™3. The TB3-TO-CMC-LP enables the deployment of XMC or PMC modules in systems previously unable to host them (laptops, Small Form Factor PCs, and other computers lacking add-in slots).
• 1 PCIe XMC site or 1 PMC site (VITA 42, IEEE 1386 & VITA 20)
• PCI Express Base 3.0, x2 lane
• PCI Local Bus 3.0, 3.3V PCI I/O, 32-bit address, 32-bit data, 33/66 MHz
• Silent operation- conductively cooled
• Bus powered, no external supply required
• Compact, rugged enclosure (165 x 85 x 25 mm)
• 0 to 85°C operation
• Secure cable retention – prevents accidental disconnect
• Optional bulkhead mount
• Optional heatsink for conductively cooled boards
• Works with existing software & Thunderbolt compatible driver
