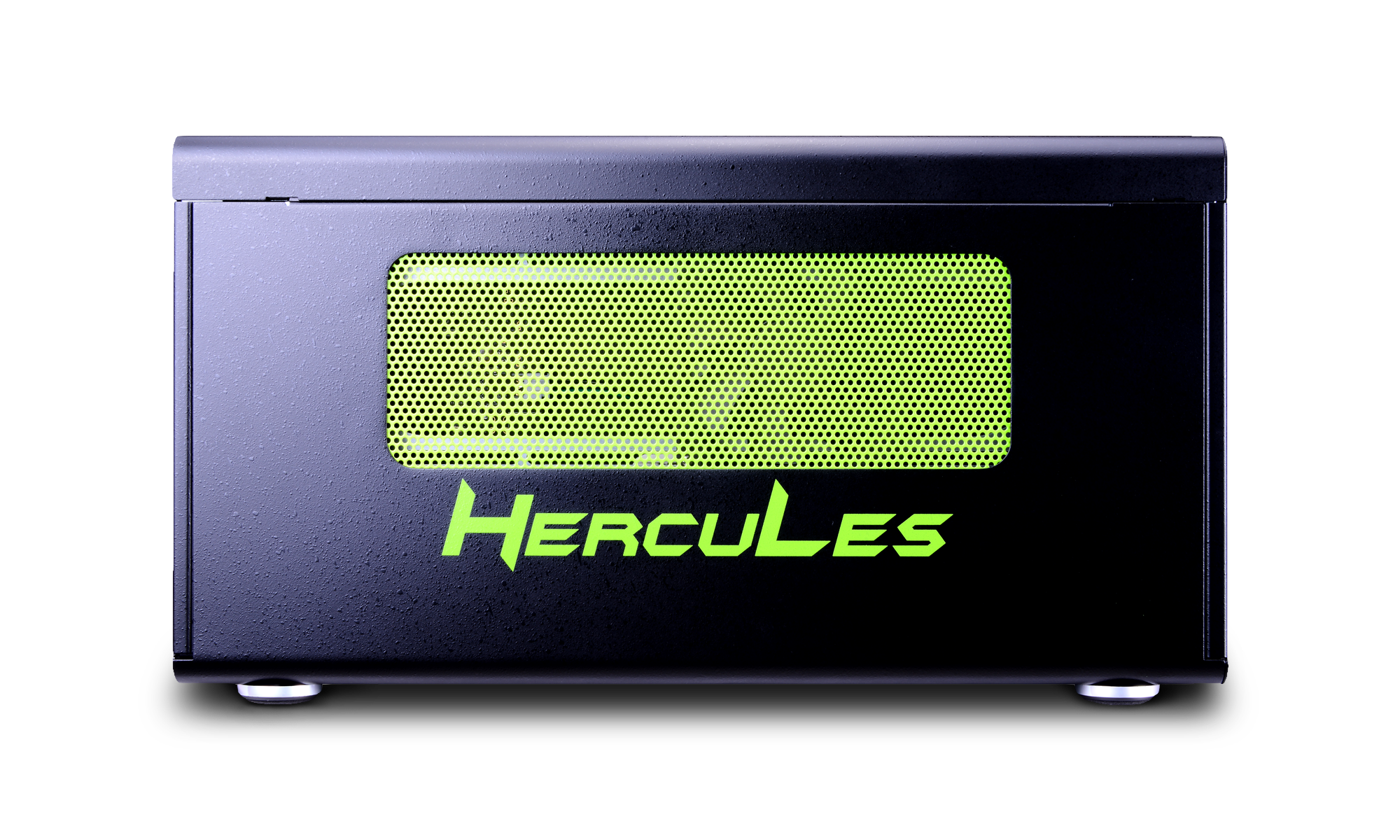

Netstor HL23T-PRO

  • Category: eGFX
Operating System:
Operating System:
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
Thunderbolt Version:
Thunderbolt 3

Product Overview:

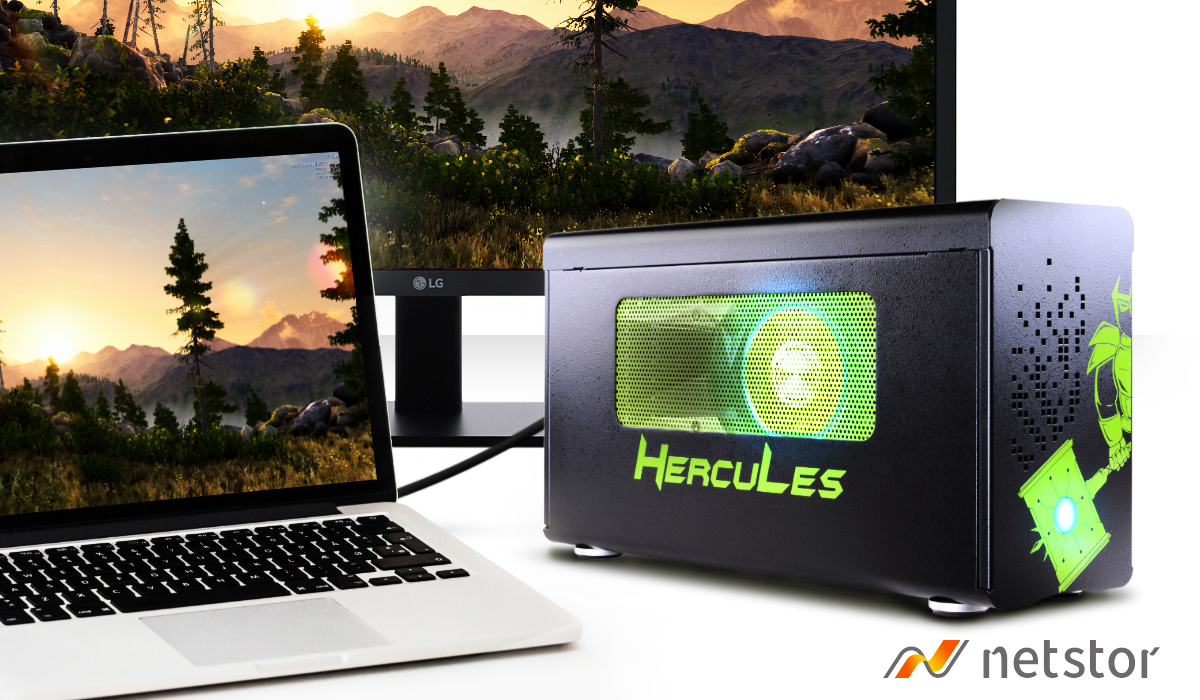

The Netstor HL23T-PRO eGFX box is created to be installed with a full-length, full-height, double-width graphics card to your Thunderbolt 3 host computer to bring the almighty power to your digital content workflows, assist with creating your skills in the production and entertainment fields including video editing, Augmented Reality (AR) / Virtual Reality (VR) content creation, gaming & many more, and also benefit your applications in the GPU-accelerated analytics, rendering, and virtualization in favor of the creative users and professionals.

Common Features:

- Product type: eGFX enclosure
- Power supply configuration: Internal
- Power rating: 400W max
- Charging support: 15W max
- No of Thunderbolt Controllers: 1
- No of USB 2 Ports: 0
- LAN interface: No
- Audio interface: No

Supported Operating Systems and Graphics Cards:

Microsoft Windows: Windows 10 RS1 and later
Graphics Cards Supported:
- Nvidia TITAN Xp, Nvidia TITAN X, Nvidia GTX 1080 Ti, Nvidia GTX 1080, Nvidia GTX 1070, Nvidia GTX 980 Ti, Nvidia Quadro GP100, Nvidia Quadro P6000, Nvidia Quadro P5000, Nvidia Quadro M6000, Nvidia Quadro M5000, Nvidia Quadro M4000, Nvidia Quadro K6000

- AMD Radeon RX 580, AMD Radeon RX 570, AMD Radeon RX 480, AMD Radeon RX 470, AMD Radeon R9 Fury X, AMD Radeon R9 Nano, AMD Radeon R9 390X, AMD Radeon Pro WX 9100, AMD Radeon Pro WX 7100, AMD Radeon Pro WX 5100, AMD FirePro W9100, AMD FirePro W9000, AMD FirePro W8100, AMD FirePro W8000

macOS: High Sierra 10.13.4 and later
Graphics Cards Supported:
- AMD Radeon RX 580, AMD Radeon RX 570, AMD Radeon RX 480, AMD Radeon RX 470, AMD Radeon Pro WX 7100
