CalDigit Thunderbolt 4 Element Hub

  • Category: Adapter/Expansion, Dock
Operating System:
Operating System:
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
Thunderbolt Version:
Thunderbolt 4

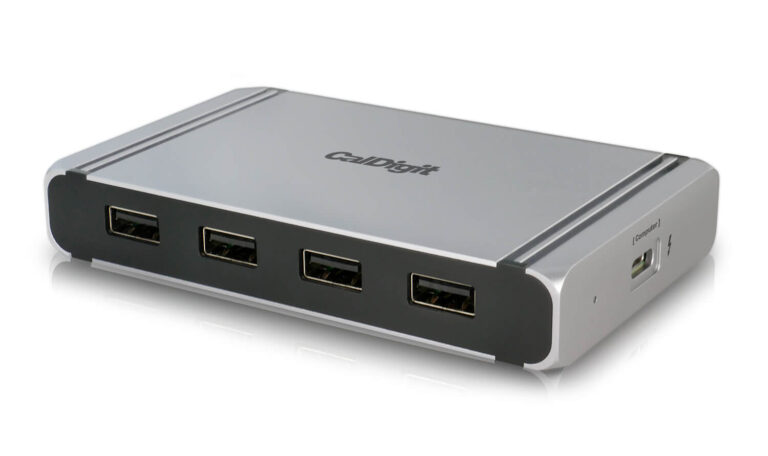

The CalDigit Thunderbolt 4 Element Hub is the first of its kind, offering 4x the performance of traditional USB-C hubs, whilst harnessing the power of Thunderbolt 4 in order to create a device without compromises.

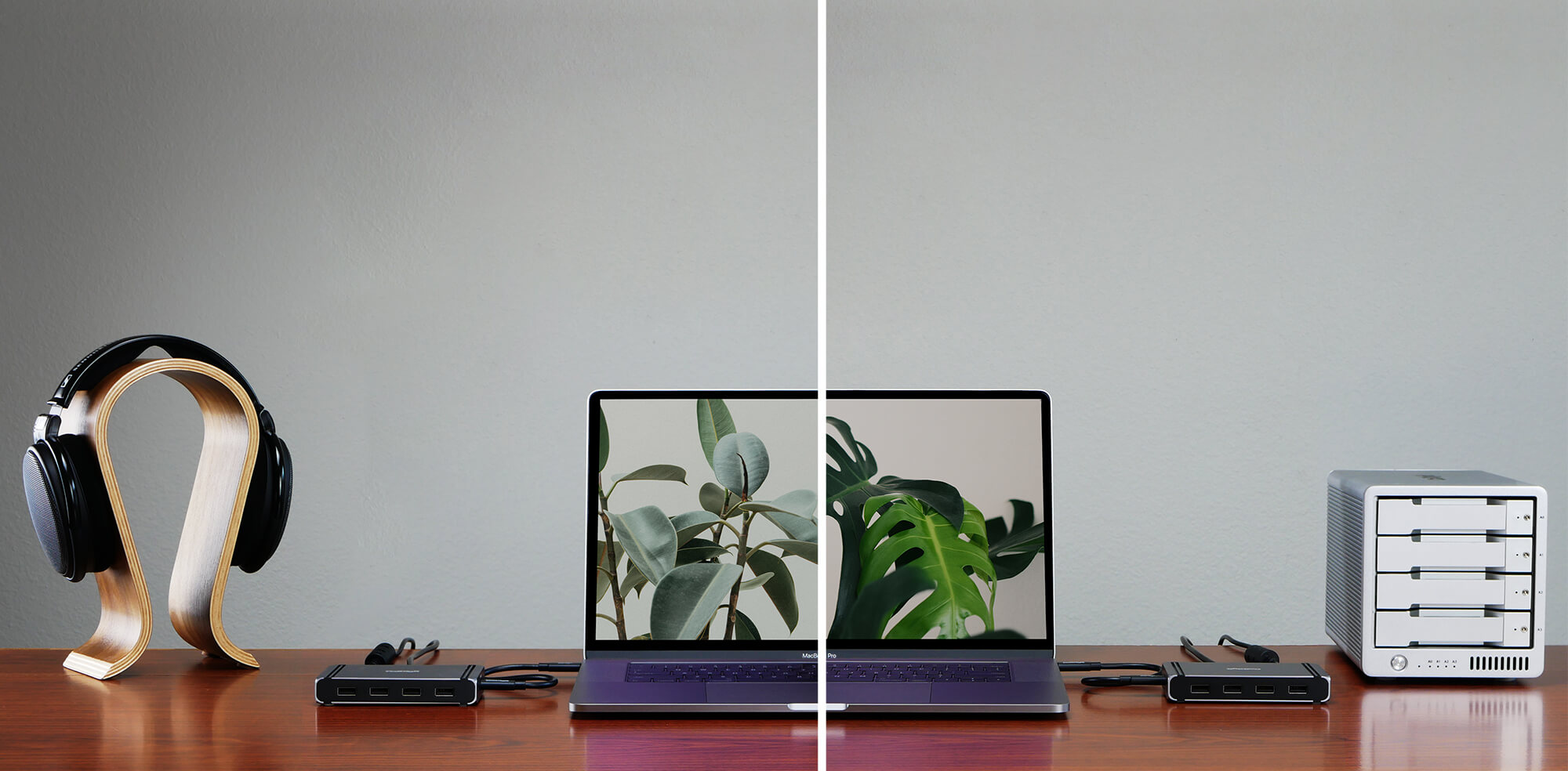

Every Element Hub workflow will be different from the next, bringing with it the potential for incredibly unique set-ups, only limited by your imagination. Connect what you need, when you need.

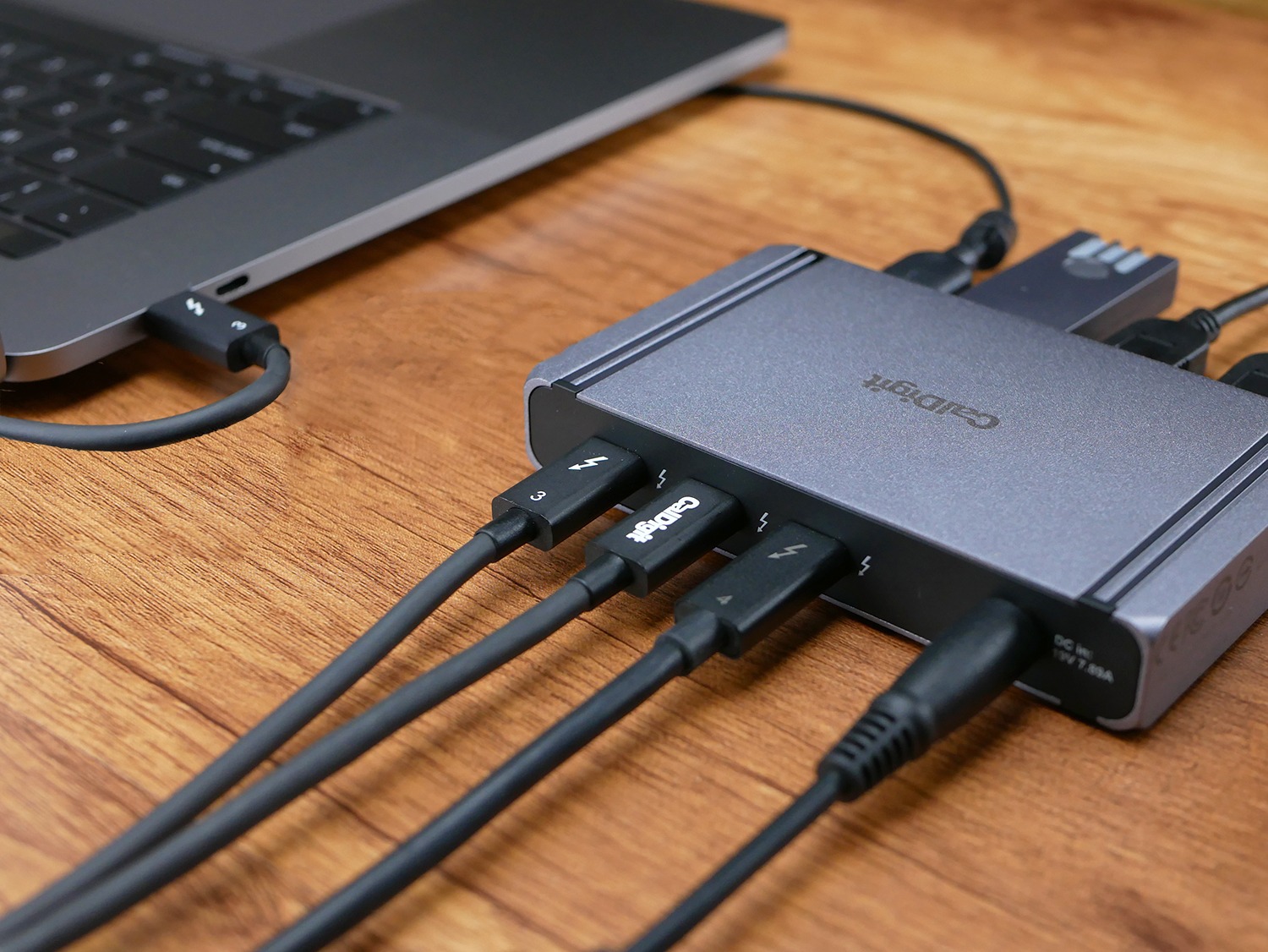

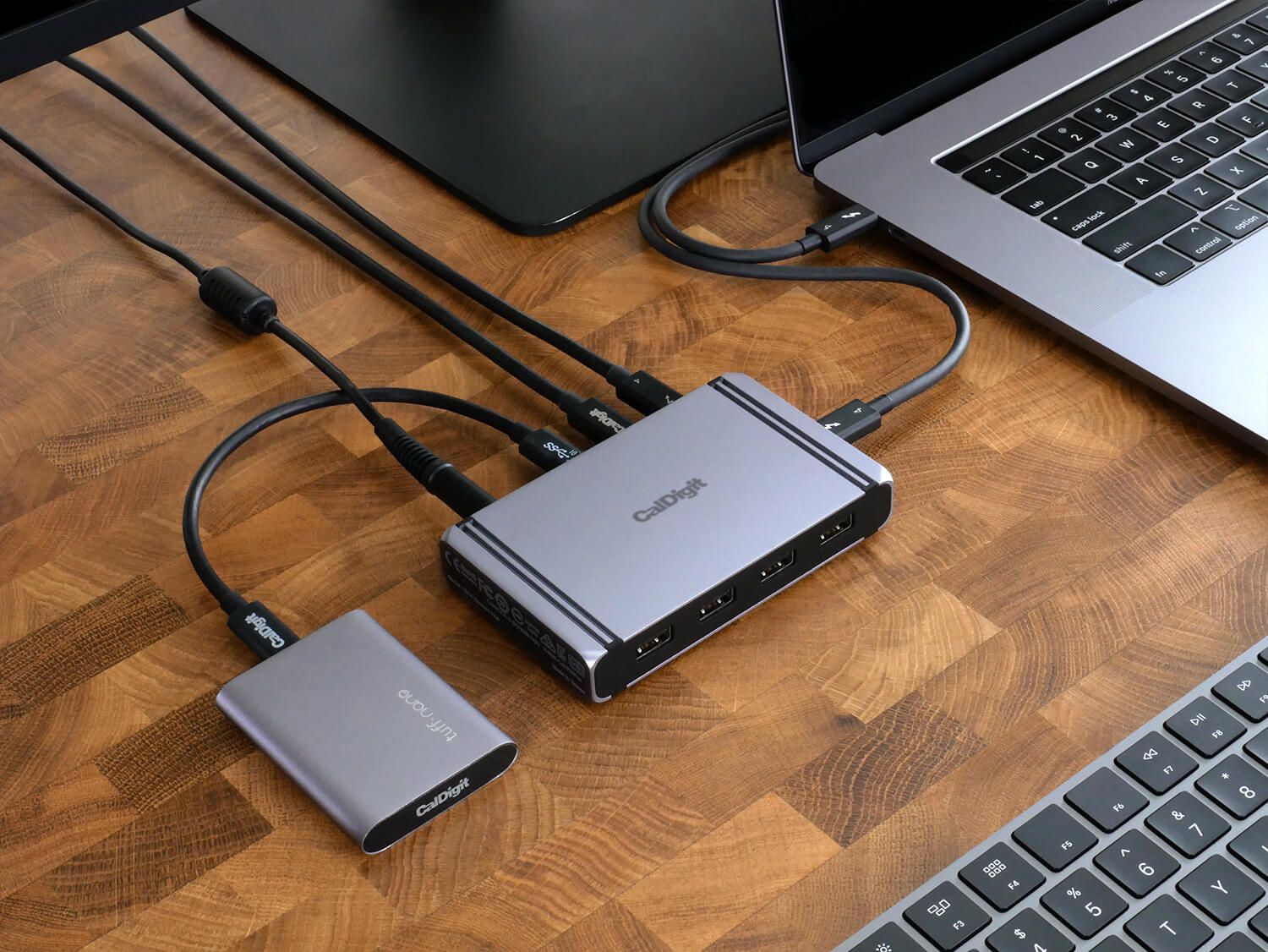

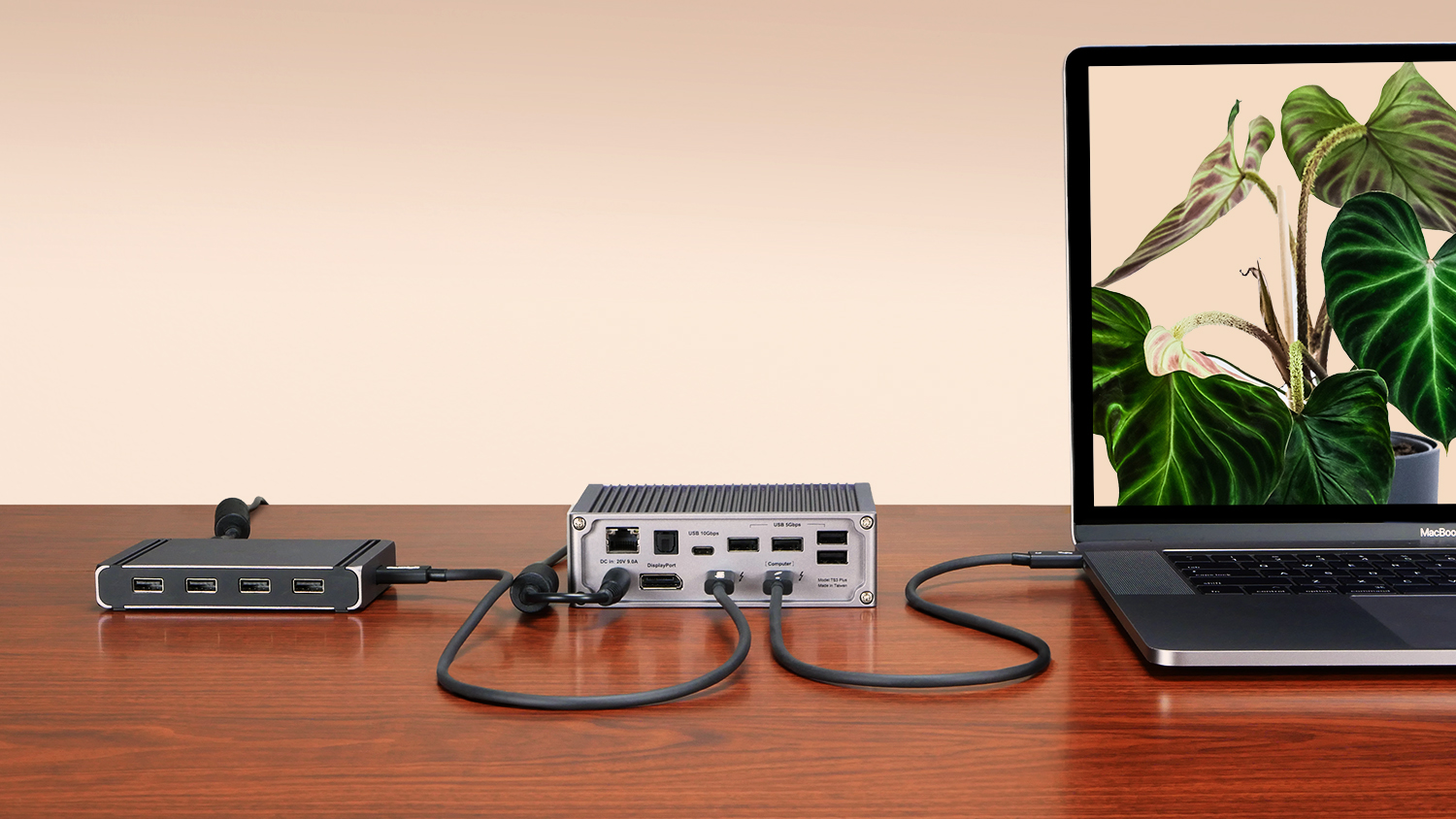

One Thunderbolt 4 port on Element Hub is used for the host computer connection, and the remaining three ports for connecting additional devices, such as another Element Hub. The workflow possibilities are endless.

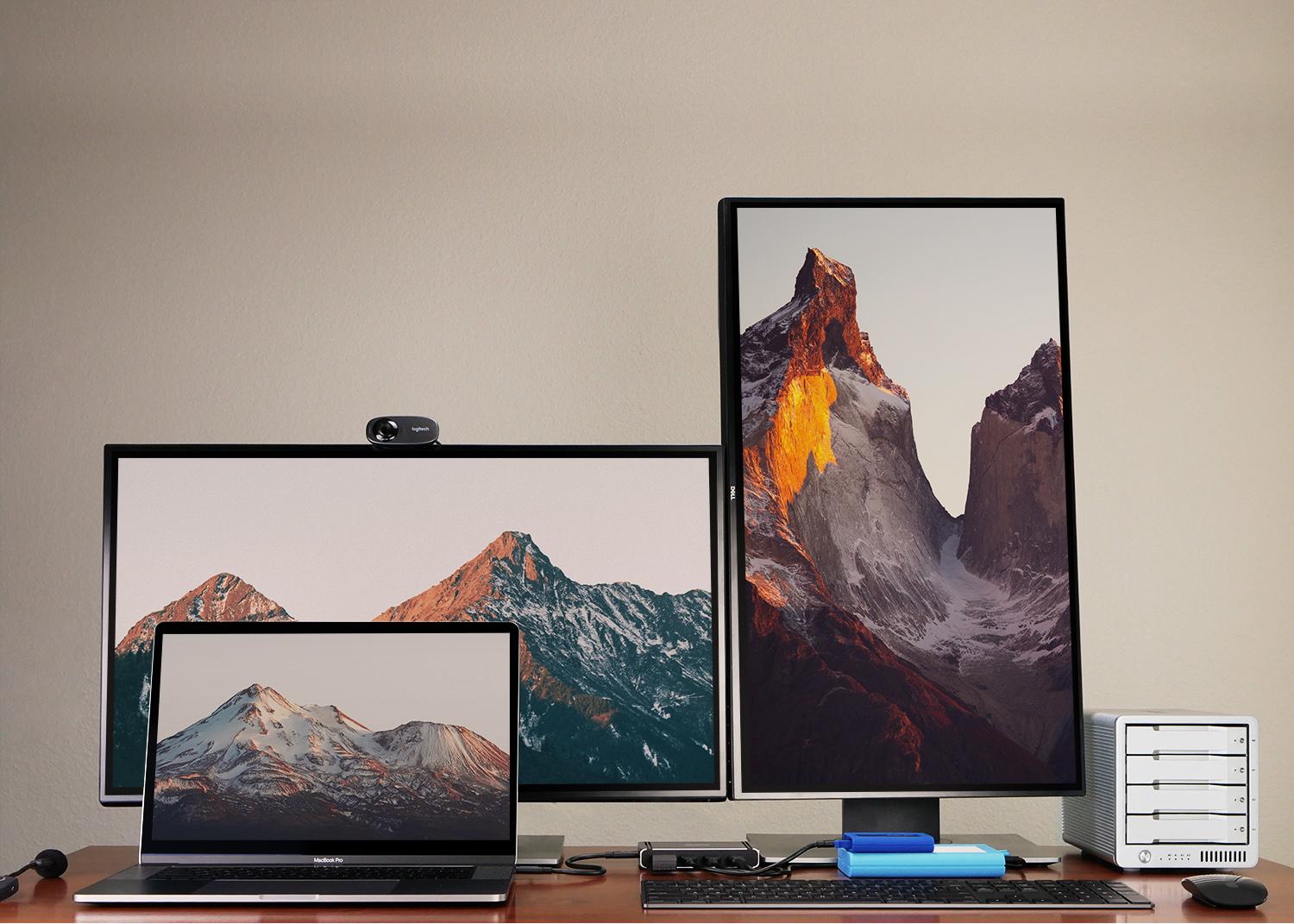

Examples of devices that can be connected to the Thunderbolt 4 ports

Thunderbolt Monitor
USB-C Monitor
RAID Storage
10GbE Adapter
SD Card Reader
Video & Audio IO
USB-C Speaker/Headphones
USB-C Dock
Thunderbolt 1/2/3/4 Dock
Thunderbolt Hub

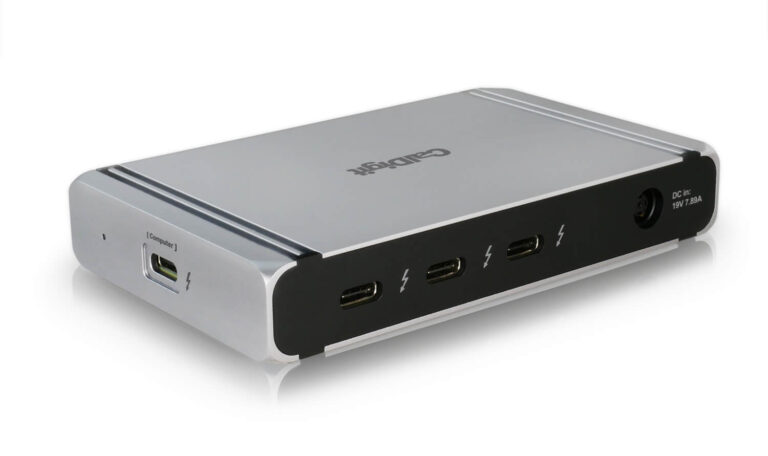

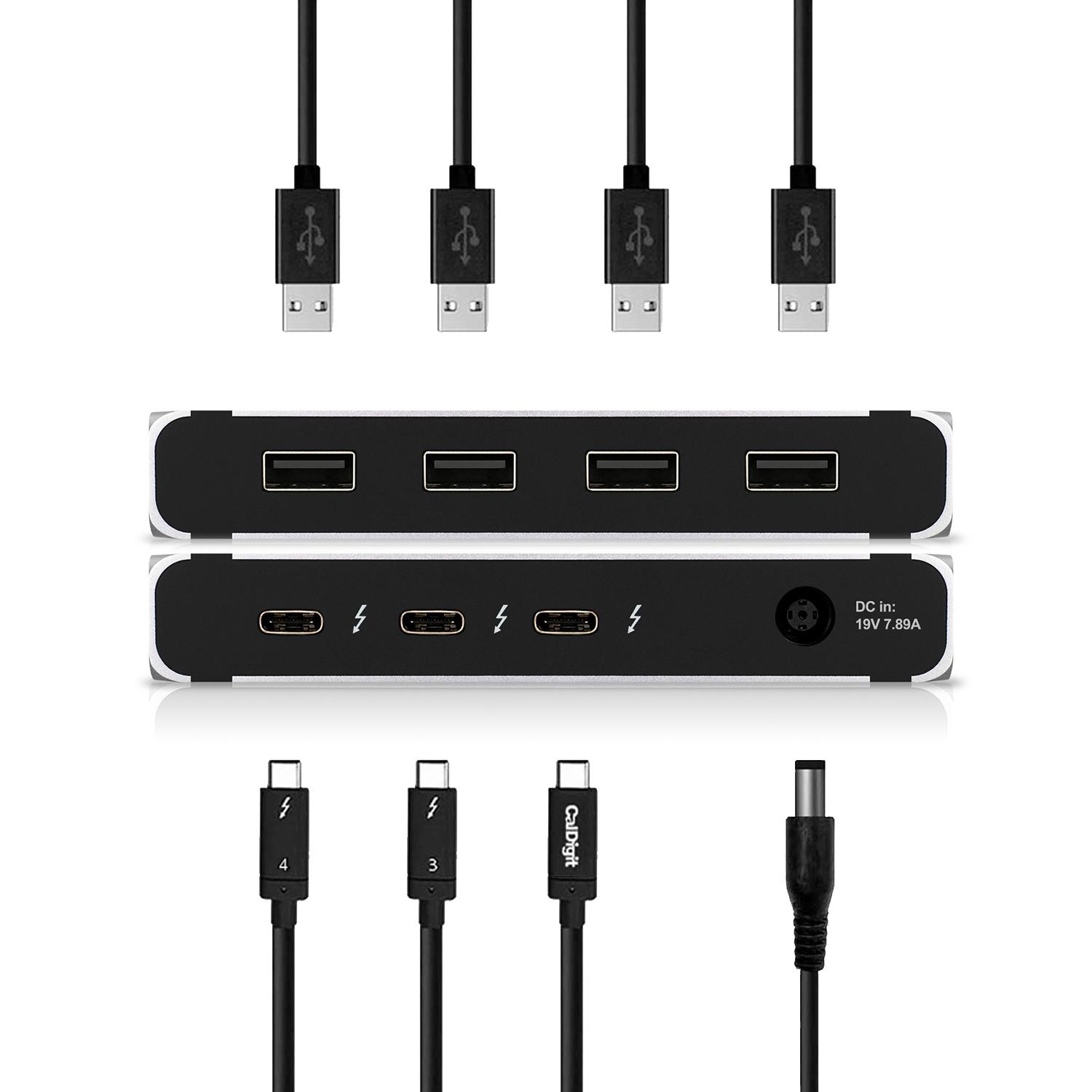

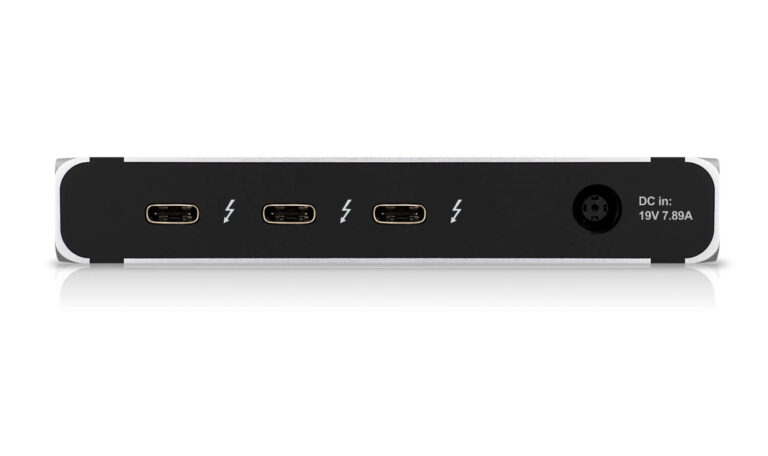

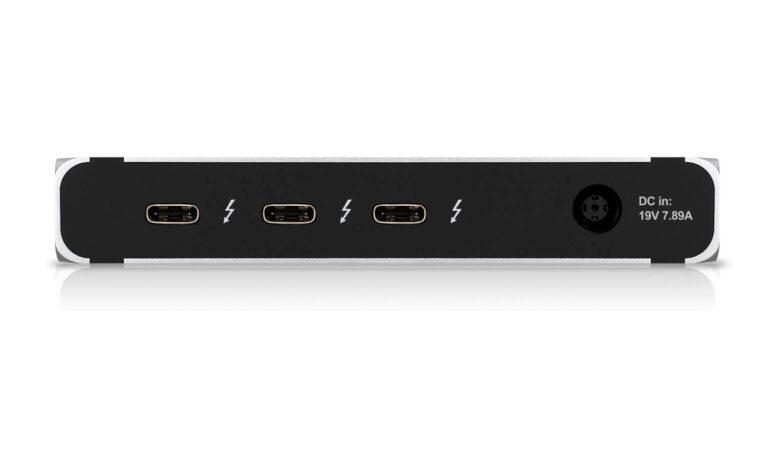

4 x Thunderbolt 4 (40Gb/s)

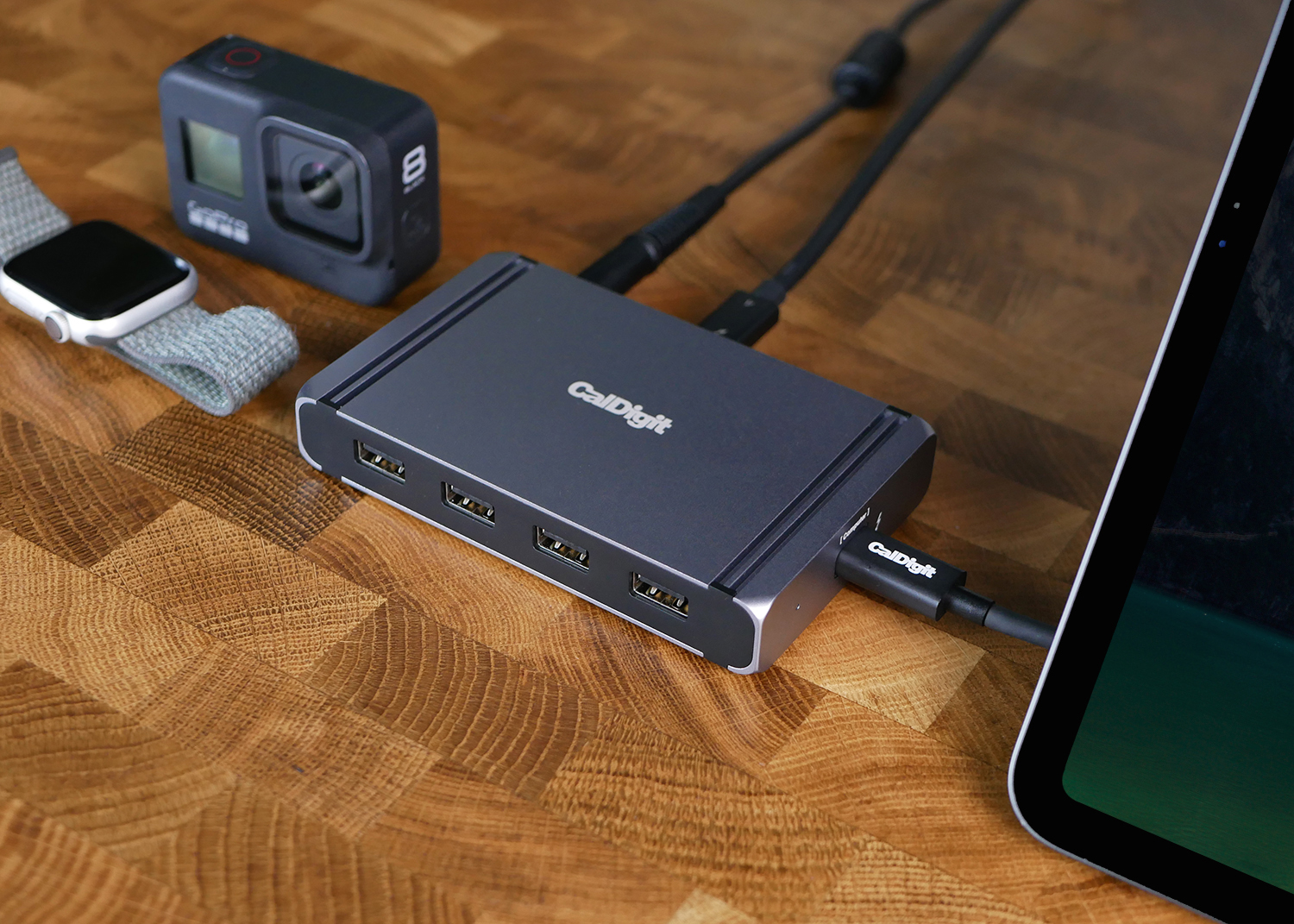

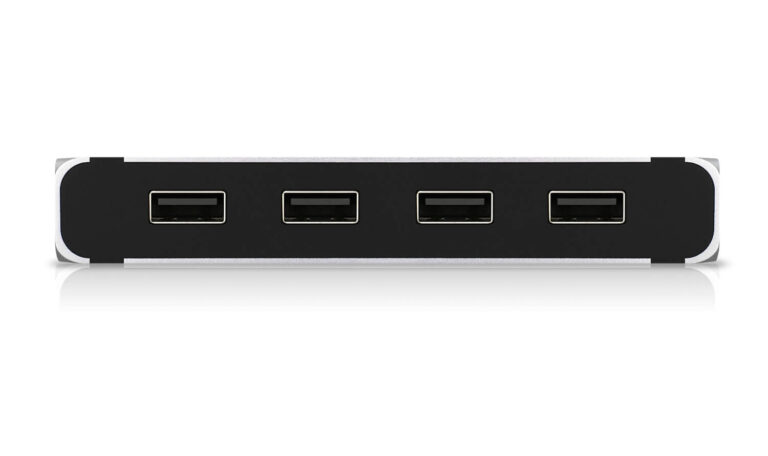

4 x USB-A 3.2 Gen.2 (10Gb/s)
1 x AC Power

Minimum System Requirements:
macOS 11 (Big Sur) or above
Windows 10 or above
Chrome OS
Thunderbolt 4 Computer
Thunderbolt 3 Computer
USB-C (USB 4) Computer
USB-C (USB 3.1) Computer

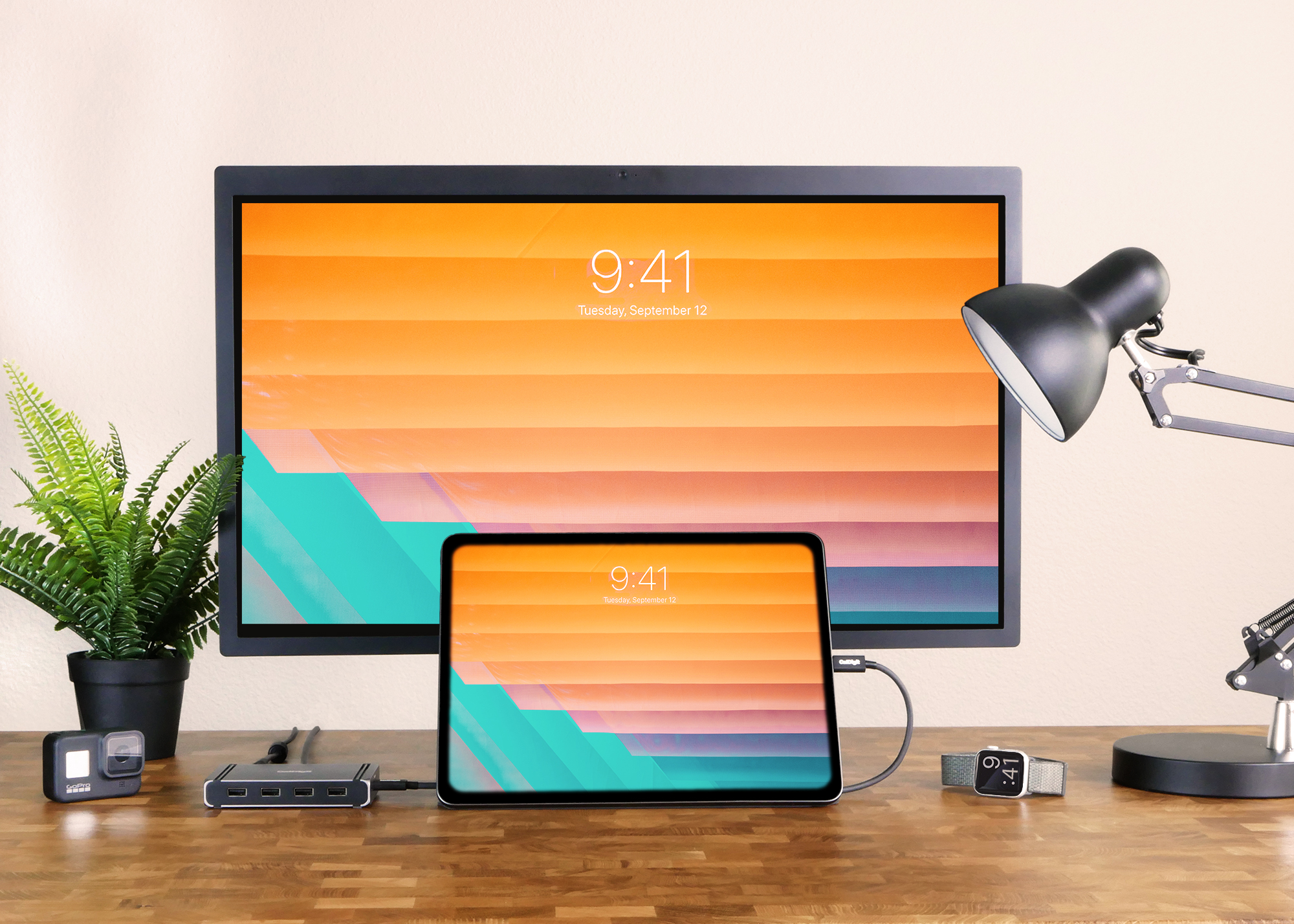

iPad Pro
iPad Air (4th Gen)
Windows Tablet
USB-C ChromeBook

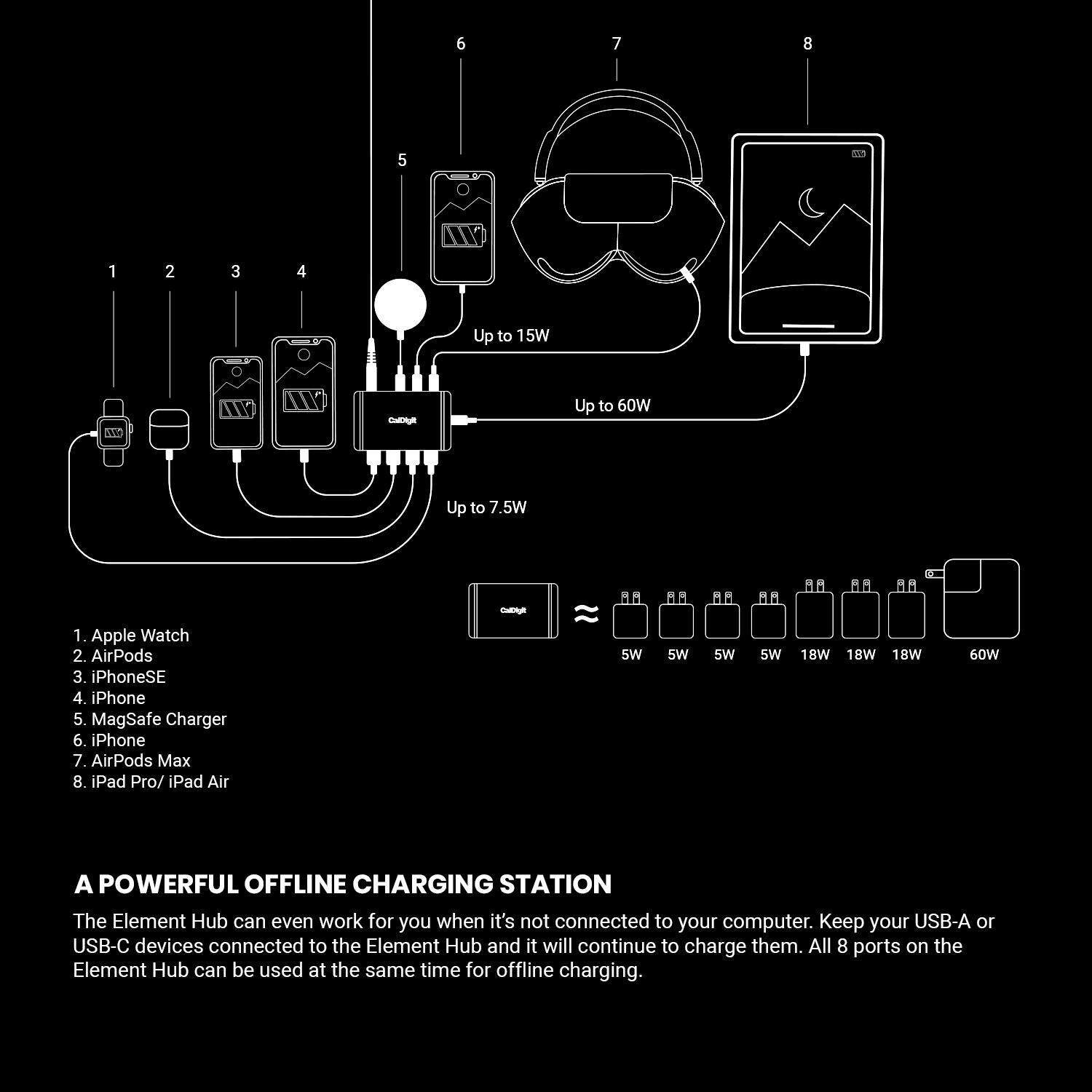

Power Delivery:
Up to 60W Host Charging (5V/3A, 9V/3A, 15V/3A and 20V/3A)
Each Downstream Thunderbolt 4 / USB4 Port: 15W (5V/3A)
Each USB-A Port: 7.5W (5V/1.5A)

Size & Weight:
Height: 0.70" (18mm)
Width: 2.75" (70 mm)
Length: 4.48" (114mm)
Weight: 0.39lbs (0.18kg)
