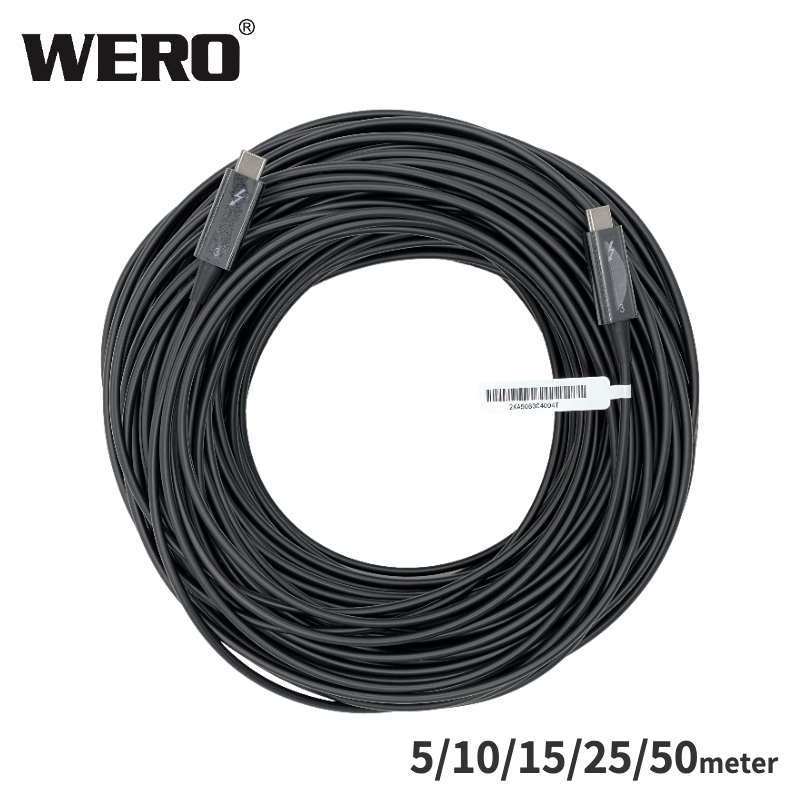

WERO’s ThunderboltTM 3 optical cables enable high-speed connectivity over longer distances. They are thin, light, and remarkably tough, while simultaneously supporting high-performance data devices and increased resolution displays.
| 產品內容
An optical cable use Thunderbolt technology to deliver great responsiveness with data and display transfers at 40 Gbps in each direction at the same time with no sharing of bandwidth between connectors
Can be used for daisy-chaining devices
Low latency with highly accurate time synchronization for professional audio and video applications
| 產品規格
1.Distance:Computer/Host to Device: Up to 50 m
2.Connector:Type-c;
3.Available Cable Lengths :
5m(16ft),10m(33ft),15m(49ft), 25 m (82ft), 50 m (165 ft)
4.Power:For use with self-powered peripherals and Thunderbolt 3 ports only
5.Environmental and Mechanical :
Dimensions (W x D x H): (12.4 x 34.9 x 6.5 mm);Max. cable tensile strength: 100N (22 lbs);
Operating temperature: 0°C to 50°C (32°F to 122°F)
6.Electrical Specification:
Support 2 Lane Operation
Throughput: 40Gbps TBT Gen3 full duplex operation
Operational LOP: 0 dBm (min.)
Power Consumption: 900mW (Typical)
Operating Voltages: 5V
7.Compliance :
Eye safety: Class 1 laser product per IEC 60825-1:2014
Emissions: FCC Class (B), CE
Regulatory: RoHS 3
