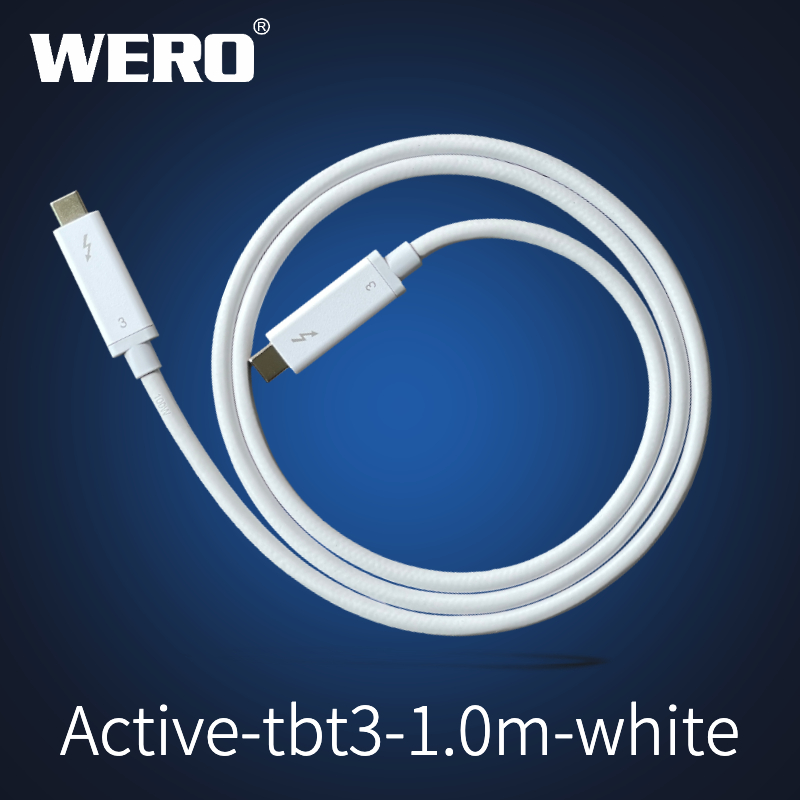

WERO Thunderbolt 3 (40Gbps) Active Cable Elite 1.0M-White

  • Category: Cable
Shenzhen Aoweier Technology Co. , Ltd.
Operating System:
MacOS
Operating System:
Windows
Operating System:
Chrome OS
Self or Bus Powered:
Bus Powered
Number of Thunderbolt Ports:
2
Thunderbolt Version:
Thunderbolt 3

| 產品內容
Active high data rate cable with clock & data recovery chip inside
Supports 2-CH TBT Gen2 or TBT Gen3 full duplex high speed transmission
Supports 1-CH passive USB2 channel transmission
Dual-protocol support for TBT mode (PCI Express and DisplayPort*) and can be used for Thunderbolt daisy-chaining devices
Plug flip-able use
Thin cable design, OD=4.8mm(typ.)
Compliant with USB Power Delivery Specification Rev2.0. Maximum power delivery capacity up to 5A
| 產品規格
General Specification

Length: 1.0-meter / 1.5-meter / 1.8-meter / 2.0-meter
Connector: LOTES Type-C connector or compatible
Color: White
Electrical Specification

Transmission data rate: TBT:2-channel TBT Gen2 or TBT Gen3 full duplex operation.USB: 1-channel USB2.0 half duplex operation.
Operating Voltages: VBUS: 5V – 20V (typ.), VCONN: 5V (typ.)
Power consumption:1.5W (typ.)
Current delivery capacity: 5A (max.)
Compliant with USB Power Delivery Specification Rev2.0
Storage and Operation temperature

Storage Temperature: Intel Thunderbolt Standard -20~85°C ambient.
Operation Temperature: Intel Thunderbolt Standard 0~50°C ambient.

* :Active TBT3 cable doesn’t support native DP alternate mode and USB3.1 Gen1 & Gen2 mode
