OVERVIEW

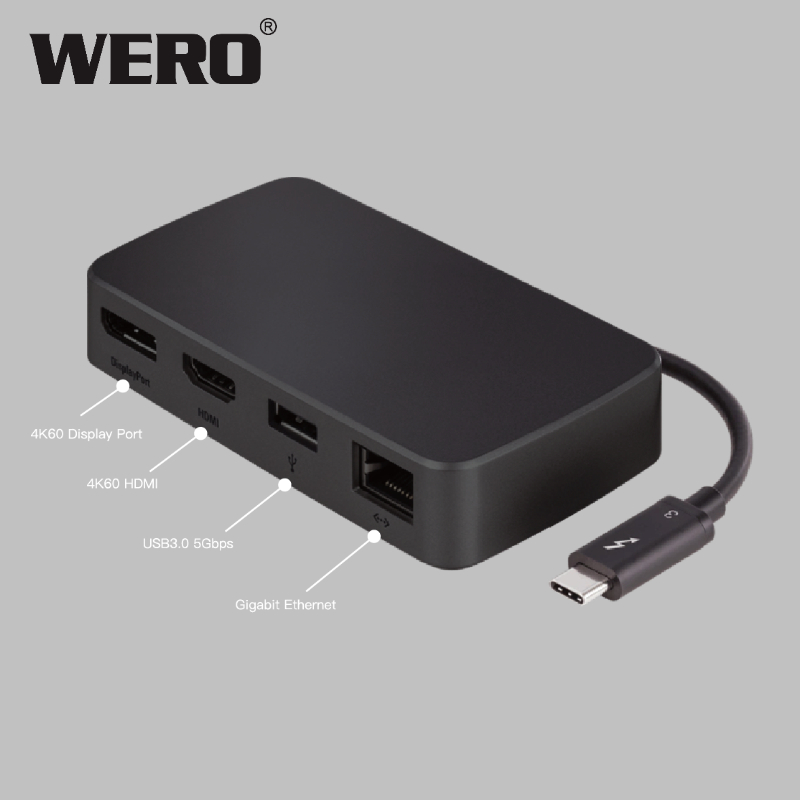

This specification defines the requirement and behavior of Lintes Thunderbolt 3 to DP, HDMI, Ethernet and USB 3.1 GEN1 Dongle. The cable connect to host systems or devices’ Thunderbolt 3 connector and transform Thunderbolt signal to DP, HDMI, Ethernet and USB 3.1 GEN 1 signal for applications. This document specifies the electrical and mechanical properties of Lintes Thunderbolt 3 to DP, HDMI, Ethernet and USB 3.1 GEN 1 Dongle.
Thunderbolt 3 Host to Thunderbolt Gen 2 Device.

FEATURES
An electrical cable that transform Thunderbolt 3 signal to DP, HDMI, Ethernet and USB 3.1 GEN 1 signal in order to provide great responsiveness with data and a easy turn-key solution for Thunderbolt applications and devices
Can only be used for last Thunderbolt end-point devices in a daisy-chain link
Tether design is optimized with respect to providing tethers with high flexibility, good durability, natural buoyancy and minimum drag.

General Specification

Cable total Length: 24cm.
Outside diameter: 4.2mm.
Product height: 25.5mm, Length:105mm, Width: 57mm.
Connector: Lotes USB 3.0 connector & HDMI receptacle& DP receptacle, Rego RJ45 receptacle.
Type- C Thunderbolt3 Electrical Specification

Operating Voltages:VBUS: 5V.
Support Thunderbolt 3 operation.
Transmission data rate: TBT3 side: 40Gbps.
Max Power Consumption:13.5W.
Current Delivery Capacity: 3A (max.) @ VBUS=5V.
USB 3.1 GEN 1 Electrical Specification

USB power : 5V/ 1.1A.
USB 3.0: 1.5/12/480/5000 Mbps.
Support USB 1.1, 2.0, 3.1 GEN1device.
Support Wake-On-USB.
DP1.2 Electrical Specification

DP power: 3.3V/0.5A.
Support DP1.2 (4K 4096X2160 60Hz).
Support dual 4K displays with HDMI port.
HDMI 2.0 Electrical Specification

HDMI Power: 5V.
Support HDMI 2.0(4K 4096X2160 60Hz).
Support dual 4K displays with DP port.
Support HDCP 2.2 repeater with on-chip keys.
Support EDID reading.
Ethernet Electrical Specification

Support Ethernet 1Gbps.
Support Wake-on-LAN(WOL).
Storage and Operation temperature

Storage Temperature: Intel Thunderbolt Standard -20~85°C ambient.
Operation Temperature: Intel Thunderbolt Standard 0°C ~40°C ambient.
