Vantec Thunderbolt 3 Multi-Function Docking Station 60W

  • Category: Adapter/Expansion, Audio/Video, Dock, Notebook/Computer, Storage
Operating System:
Operating System:
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
Thunderbolt Version:
Thunderbolt 3

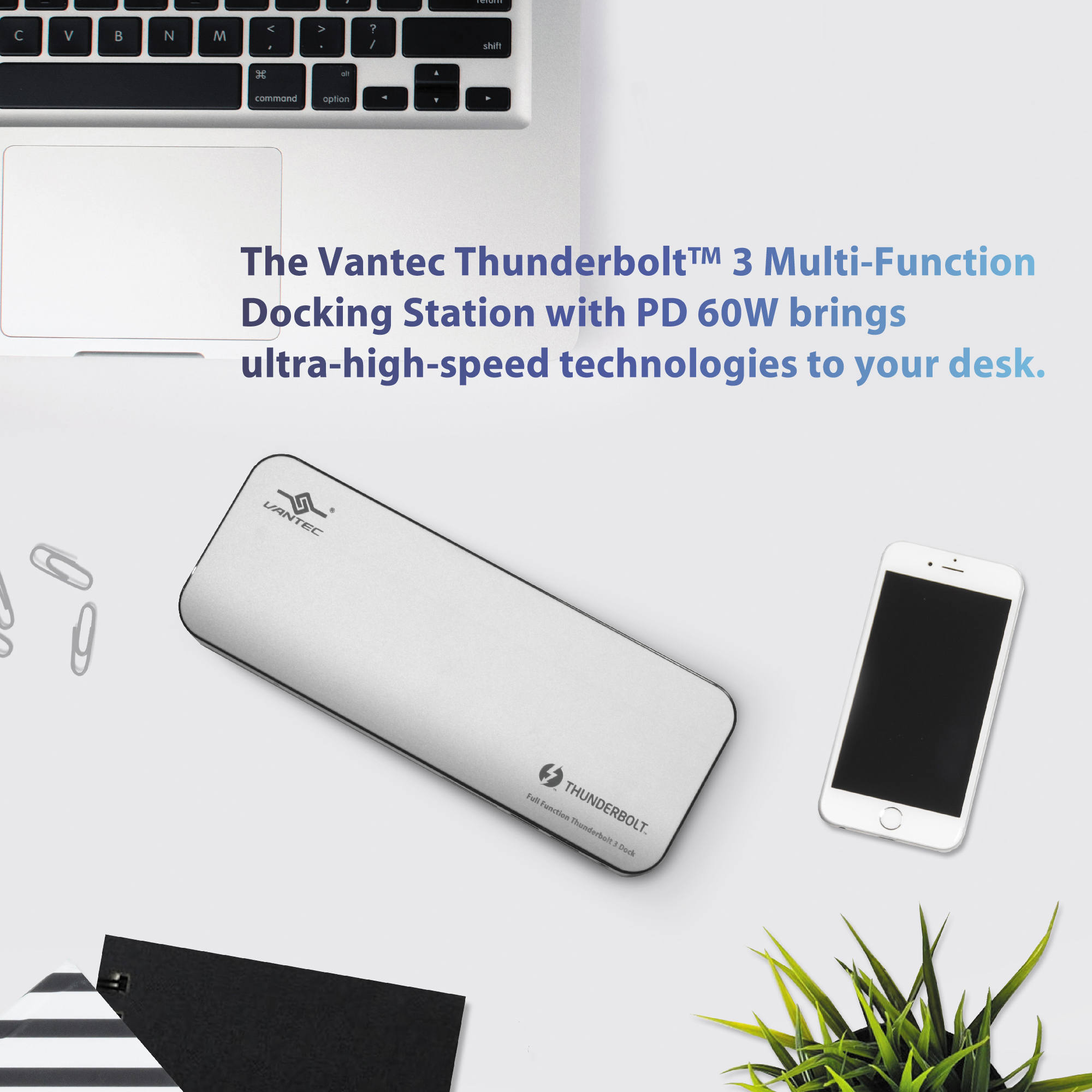

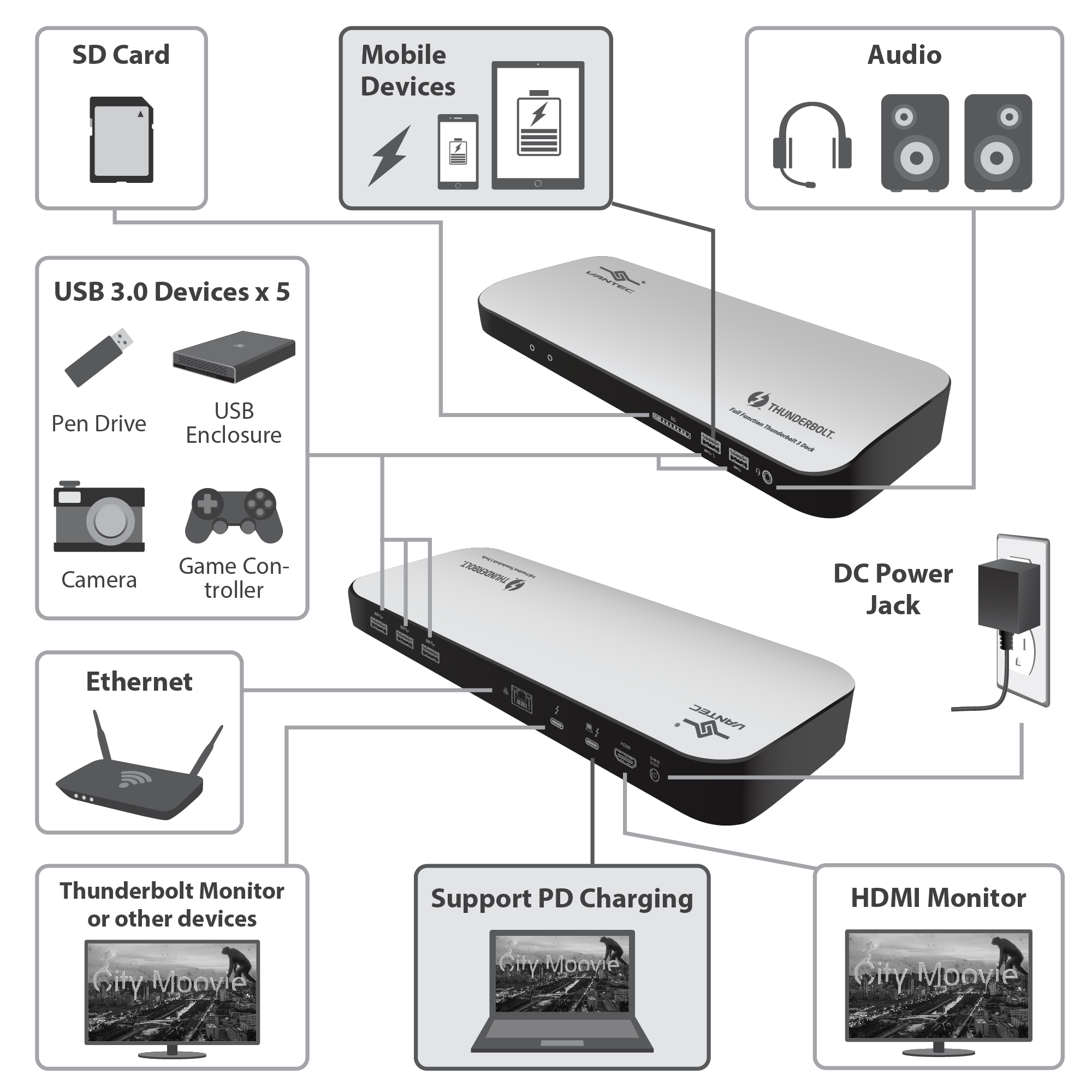

The Vantec Thunderbolt™ 3 Multi-Function Docking Station with PD 60W brings ultra-high-speed technologies to your desk. Using the latest Thunderbolt™ 3 speed at 40Gbps (8x the speed of USB 3.0), this docking station gives no lag in speed when watching videos at HDMI™ 4K@60Hz and doing multiple tasks at the same time. It allows you to connect Five USB 3 devices (one with BC 1.2 charging) and True PD charging via USB-C port for 5V/9V/15V/20V with up to 60W. There is a Gigabit Ethernet port, Audio 3.5mm Jack (headphone and microphone), and SD 3.0 card reader. It is tested and certified by Intel Thunderbolt™ 3 for Windows and OS X for seamless compatibility.
This Multi-Function Docking Station can really connect, charge and do so much using one Thunderbolt™ 3 port on your system. The bottom line is the broad functionality, simplify your workspace and connect all your peripherals.

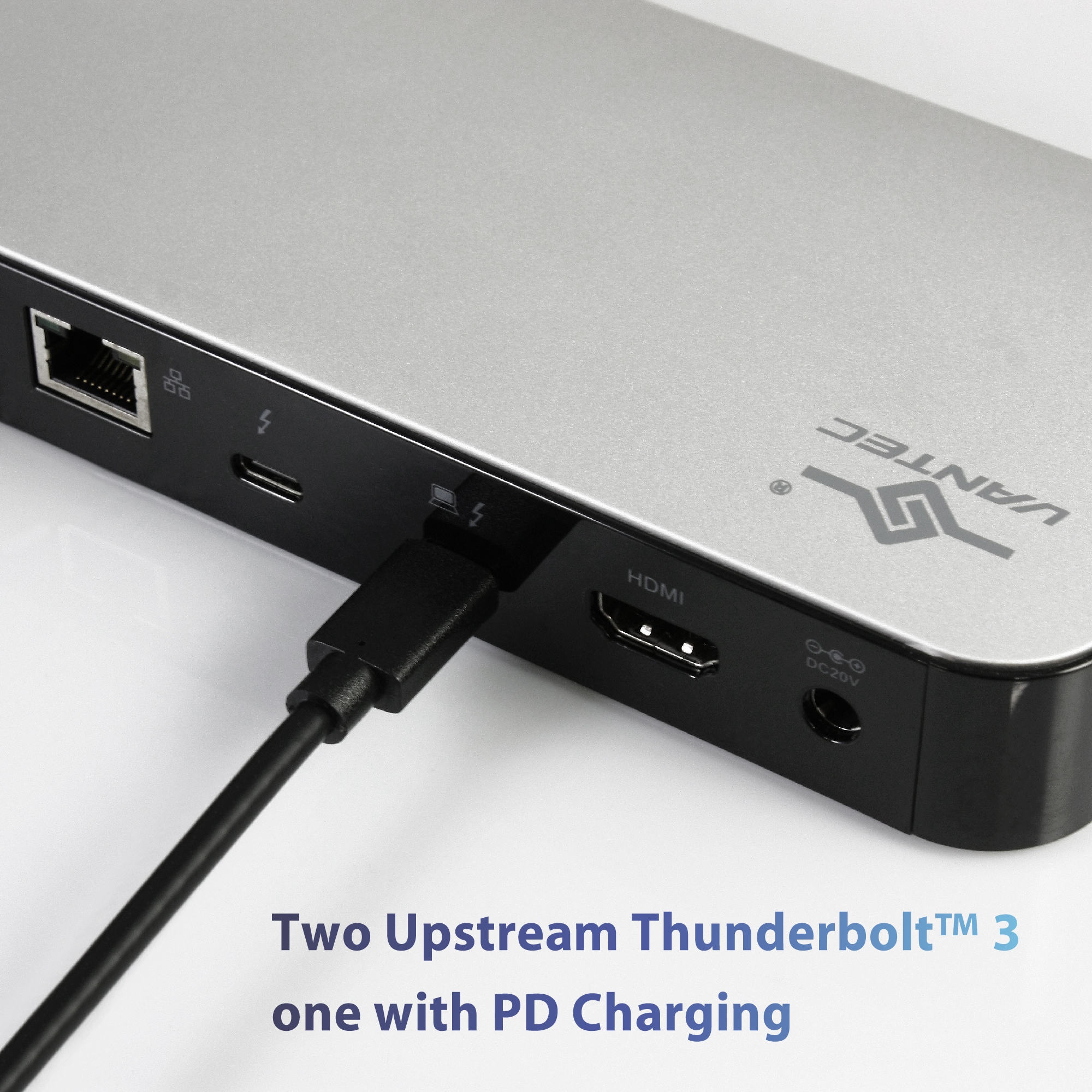

+ Two Upstream Thunderbolt™ 3 (one with PD Charging)
PD Charging: 5/9/15/20V, up to 60Watts
+ Five USB 3.1 Gen 1 Type A port (One BC 1.2 port)
+ HDMI™ 4K@60Hz Video Port, with Audio
+ Gigabit Ethernet Port w/RJ45
+ Headphone/Microphone Jack (3.5mm)
+ SD Memory Card Slot

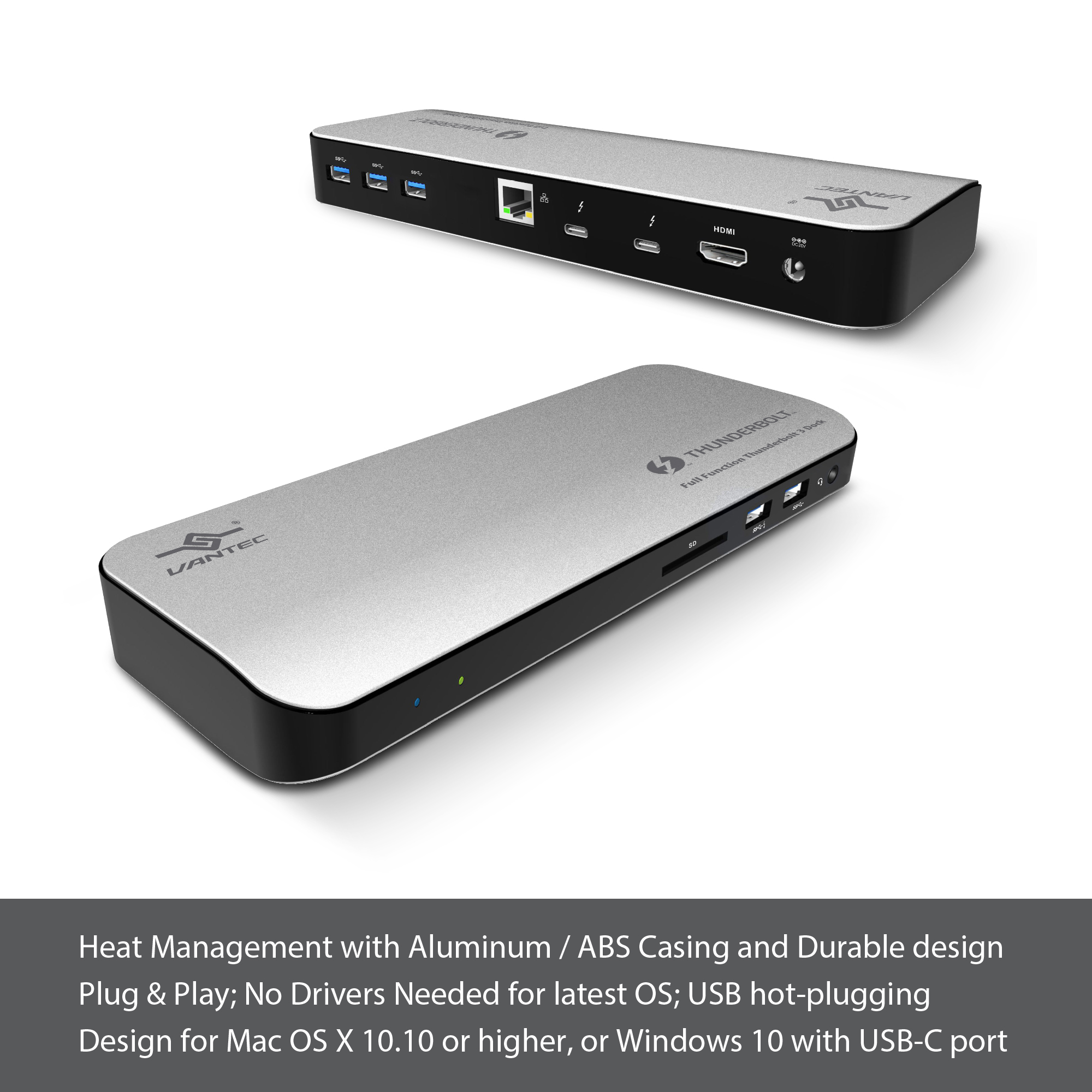

+ Heat Management with Aluminum / ABS Casing and Durable design
+ Plug & Play; No Drivers Needed for latest OS; USB hot-plugging
+ Design for Mac OS X 10.10 or higher, or Windows 10 with USB-C port


Model: DSH-400TB3
Upstream Connectors: 2 x Thunderbolt™ 3 (one with PD Charging)
PD Charging: 5/9/15/20V, up to 60Watts
Device Connectors: 5 x USB 3.1 Gen 1 Type-A (One with BC 1.2)
1 x HDMI™ 4K@60Hz with Audio
1 x Gigabit Ethernet RJ45 with LEDs
1 x SD Memory Card Slot
1 x Audio 3.5mm (headphone and microphone) jack
Supported Video Resolutions: Up to 4Kx2K (4K@60Hz)
Display Modes: Primary, Extended or Mirror (depend on OS capability)
Power Supply: Universal switching Ac Adapter
Input: 100-240V
Output: DC 20V/6.75A
Material: Aluminum, ABS Plastic
Dimensions: 9.1 x 3.4 x 1.1 inches / 230 x 87 x 27 mm
Weight: 1.1 lbs. / 499g
Cable length: 19.8 inches / 503 mm
OS Support: Windows 10 32-bit and 64-bit; Apple OS X 10.10, 10.11 or greater

System Requirements:

• Must have Thunderbolt™ 3 port on the laptop/system
• Optional device: HDMI Display device, USB device, SD Card, Network

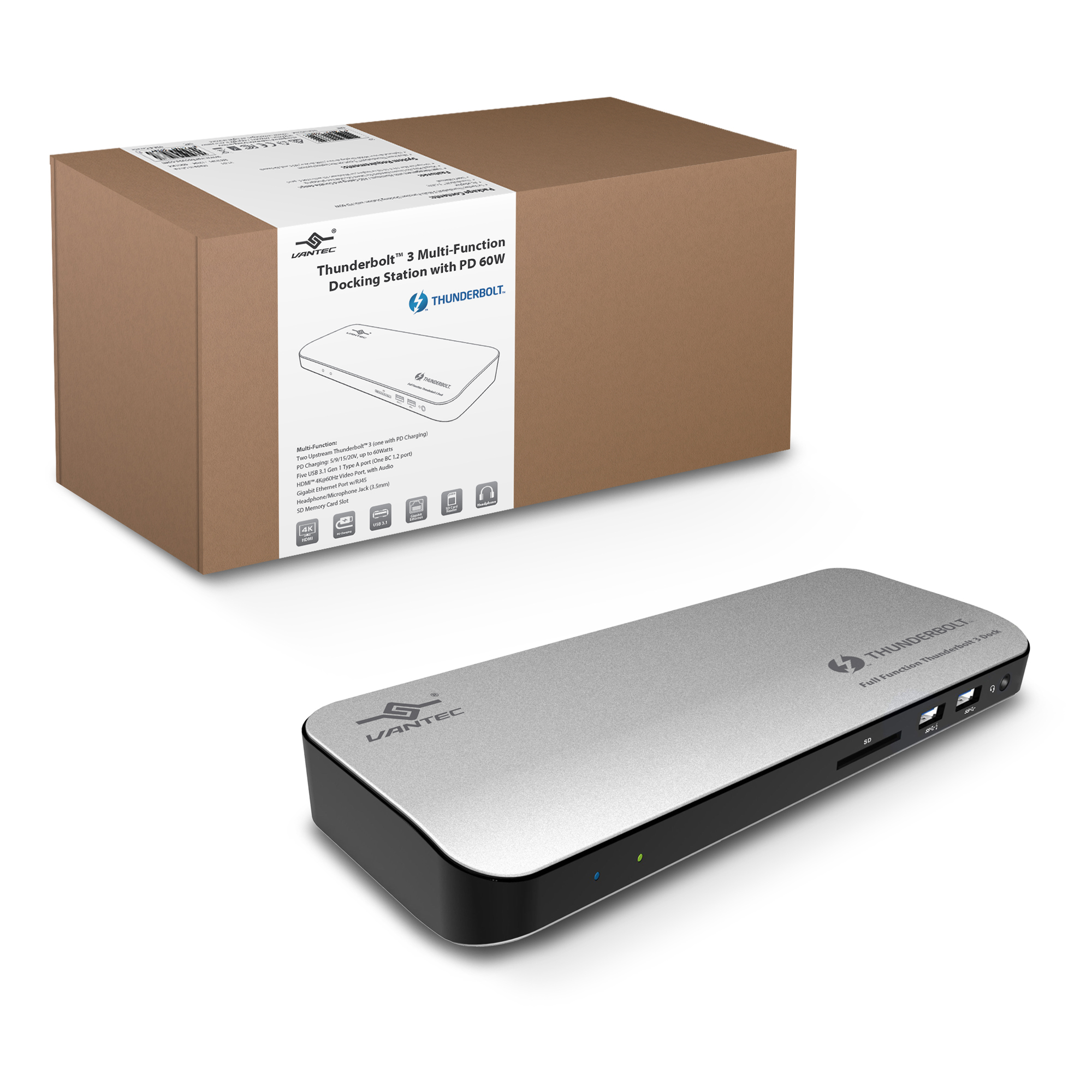

Package Contents:

• 1x Vantec Thunderbolt 3 Multi-Function Docking Station with PD 60W
• Ac adapter
• Thunderbolt™ 3 cable
• User’s Manual
