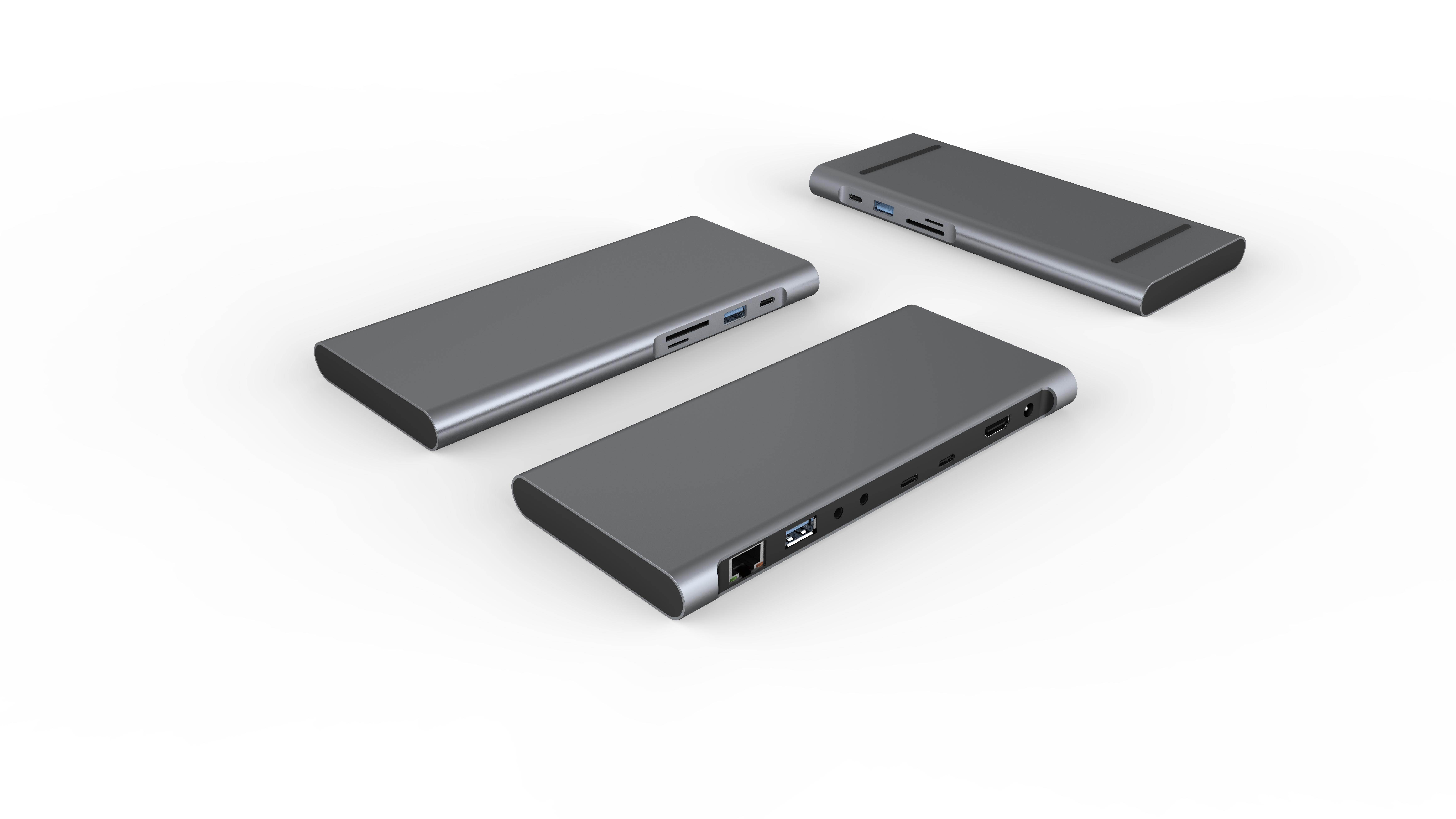

UCN3294 Thunderbolt 3 Docking

  • Category: Adapter/Expansion
Kingtron Electronics Technology Co.,Ltd
Operating System:
Operating System:
Self or Bus Powered:
Bus Powered
Thunderbolt Version:
Thunderbolt 3

1. Ports Description
A.Thunderbolt 3 40Gbps x 2
B.HDMI x 1
C.USB3.0 5G Type A x 2
D.USB3.0 5G Type C x 1
E.10/100/1000M Ethernet x1
F.SD3.0(UHS-II) Card-Reader x1
G.3.5mm x 2
H.DC 5.5mm x1

2. Features
A.Intel Titan Ridge Universal dock support both Thunderbolt Host and MFDP host PC or Notebook.(Intel Alpine Ridge is old version, only support Thunderbolt3 host PC or Notebook)
B.Supports 2x thunderbolt3 40Gbps and Thunderbolt3 daisy chain.
C.Supports single 8K@60Hz(7680x4320),5K@60Hz (5120x2880) UHD or dual 4K@60Hz display output.
D.Thunderbolt Port A support PD 60W charging(5V/9V/15V/20V @3A).
E.Thunderbolt Port B support PD 15W charging(5V@3A).
F.F.USB3.0 Type A supports 5Gbps and Max 5V@1.5A.
G.G.USB3.0 Type C supports 5Gbps and Max 5V@1.5A.
H.SD3.0 Card-Reader support SDXC card up to 2TB, 208MB/S
I.One 3.5mm support microphone, another 3.5mm support earphone.
J.DC power max 20V/5A

3. The operating system support
MacOSX 10.X And future versions。
Windows8/ 10 32 And 64 Bits and future versions

4. Surface temperature
Working conditions
Indoor temperature 26℃,Surface temperature of contact with aluminum shell:≤45℃(The samples to be tested are subject to the actual test);

5. Electrical performance and operation
Working voltage: DC 5V-20V
Operating Temperature:-20°C ~ 45°C
Storage Temperature: -20°C ~ 80°C
Operating Humidity: 10% to 90 % RH (no condensation)
