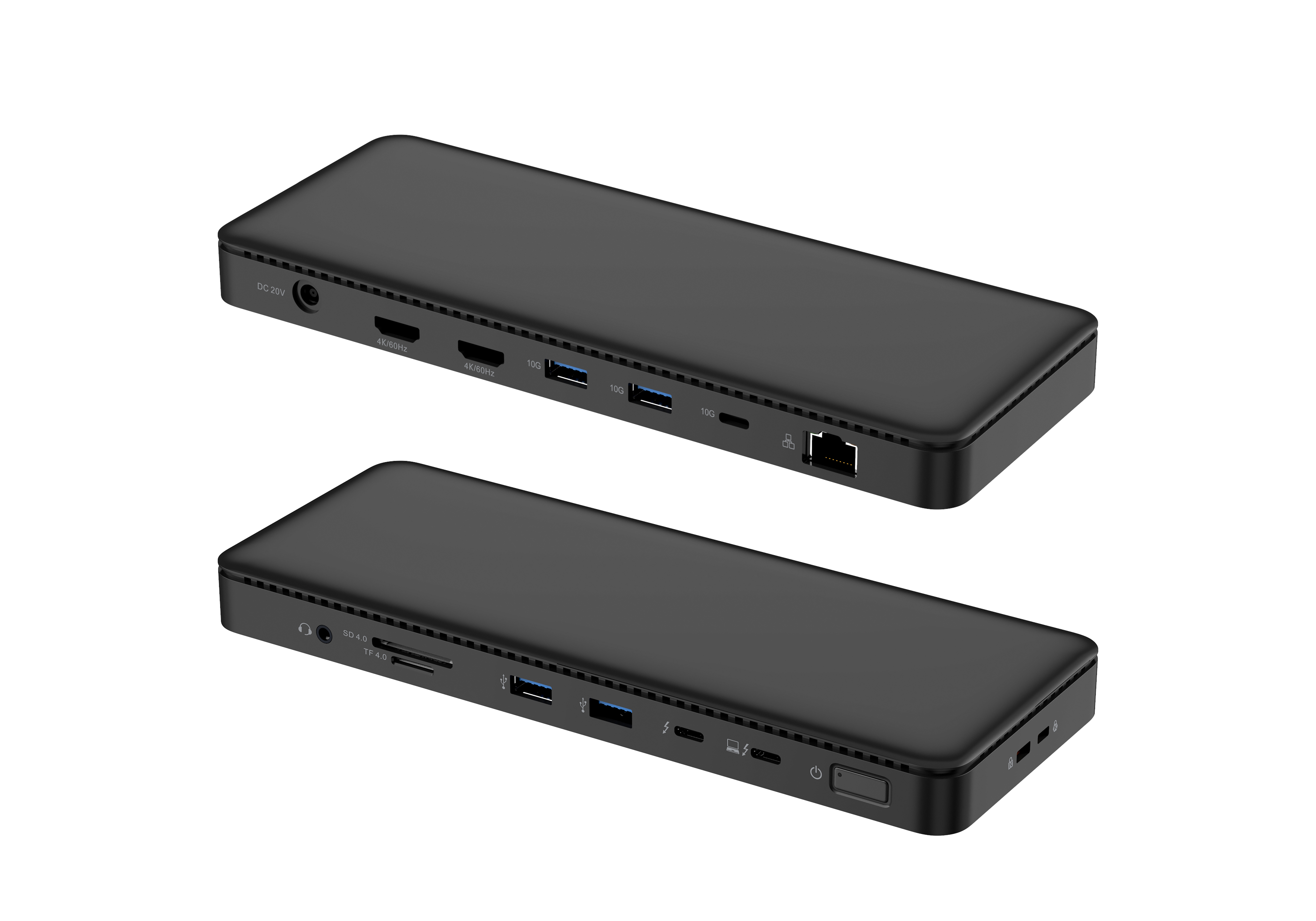

ThunderboltTM 4 13-in-1 Docking Station with daisy chain (TB4-DOCK05)

  • Category: Dock
Operating System:
Operating System:
Operating System:
Chrome OS
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
Thunderbolt Version:
Thunderbolt 4

Input/Output Connector:

Upstream:Thunderbolt™ 4 Female x1(to host)

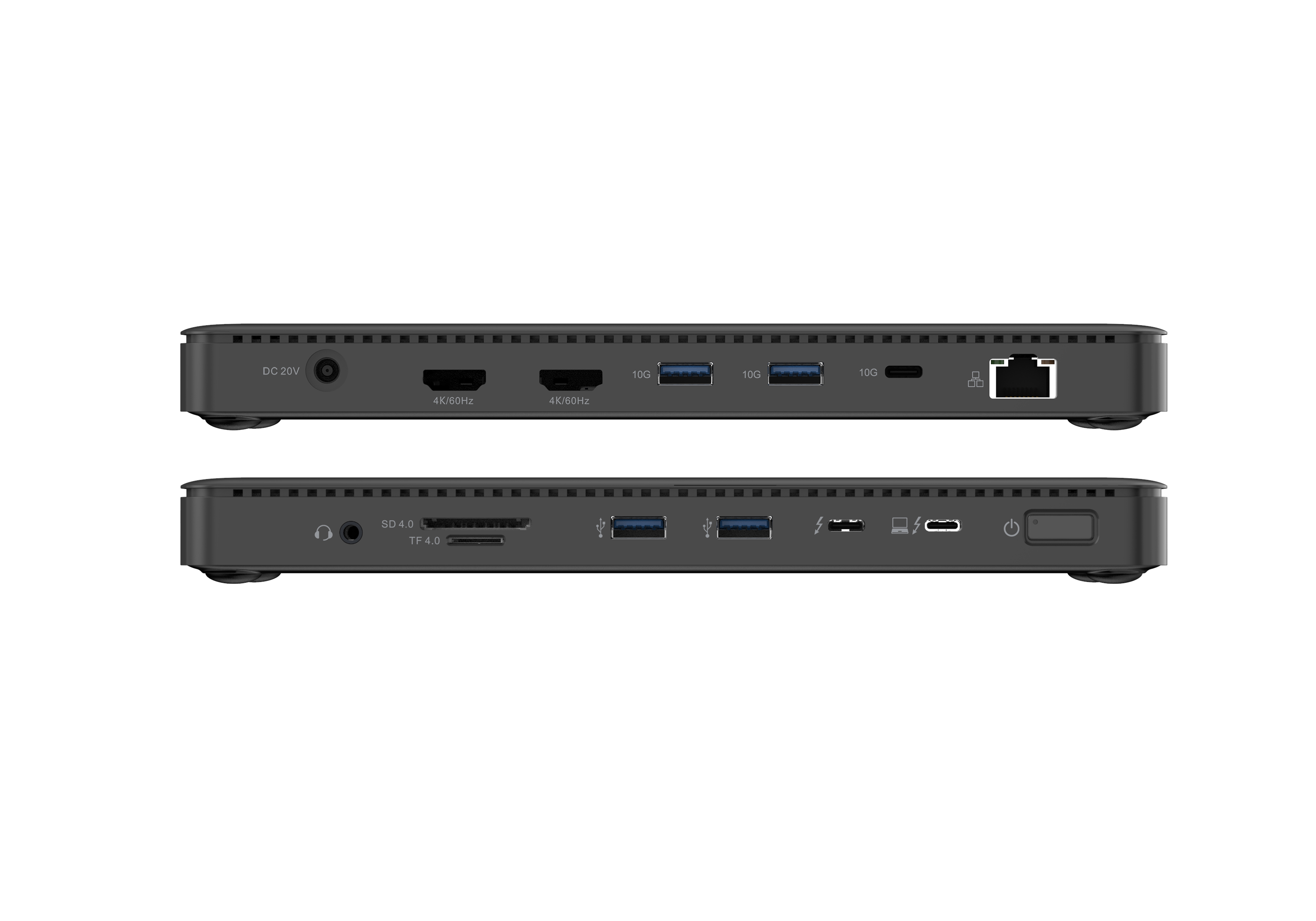

Downstream:Thunderbolt™ 4 Female x1;HDMI x2(4K/60Hz);USB-C x1(10G );USB-A x2(10G);USB-A x2(5G);SD/TF 4.0 x1;RJ45 x1(Gigabit Ethernet);3.5mm Audio JACK x1(384KHz);DC Power Jack x1(134W)


This is a most powerful Thunderbolt™ 4 dock which provides the most advanced, efficient, and versatile I/O solution available with up to 40Gb/s for data and video. Thunderbolt 4 port allow you to cascade Thunderbolt devices up to 6 levels, to one 8K monitors. Allowing you to connect 2 displays with max dual displays(max 4K/60Hz*2) output simultaneously with different picture. RJ45 supports max 1000M bandwidth.USB ports support max 10G data transmission.Besides, supports smart power function which enables to distribute power according to the power consumption of the connected device, making full use of external power supply. It is designed for TBT4/USB4 based PCs and compatible with TBT3/DP-Alt-mode PCs.

1.Adopting Goshen Ridge solution
2.Designed for Thunderbolt 4 based PCs and Thunderbolt 3 based Macs utilizing MacOS 11 and later versions
3.Support Thunderbolt 4 max 40Gbps for high speed data and outstanding video transfer, compatible with TBT3,USB4,DP Alt mode,USB protocol
4.Among all HDMI ports, support max 4K/60Hz for one port,or max dual 4K/60Hz with different pictures
5.RJ45 supports 10M/100M/1000M bandwidth
6.SD/TF supports SD4.0 with max 312MBps
7.USB ports support max 10G data transmission
8.Self-powered from DC power adapter with max 96W for host, max 134W for host and Dock
9.Support smart power which enables to flexibly distribute power to PC and Hub in real time according to the consumption of connected devices
10.Compatibility Details:Support TBT4/USB4/TBT3/DP-Alt-mode Hosts;Support Windows/Mac OS/Chrome OS
