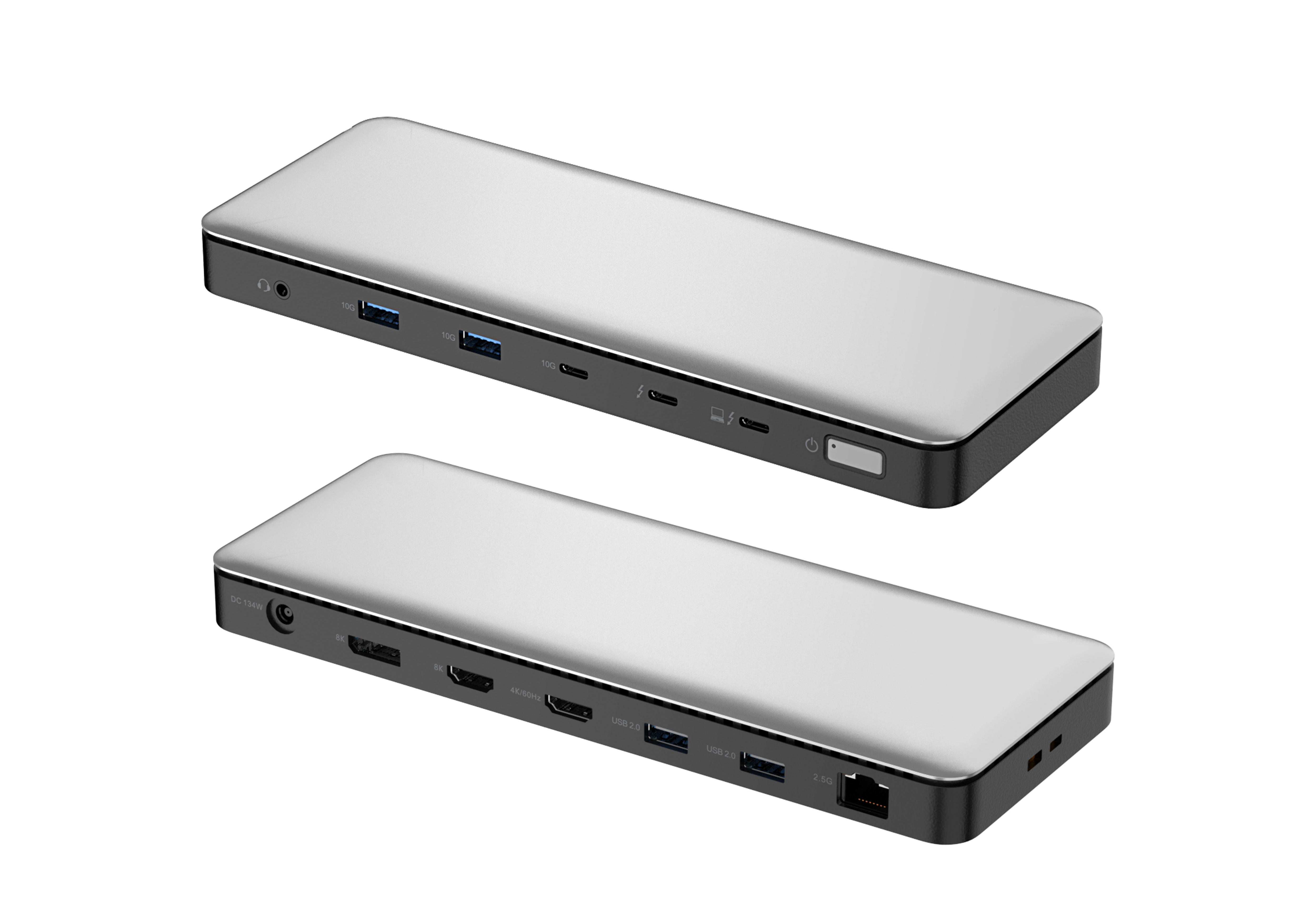

ThunderboltTM 4 12-in-1 Docking Station with Daisy Chain(TB4-DOCK04)

  • Category: Dock
Operating System:
Operating System:
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
Thunderbolt Version:
Thunderbolt 4

Input/Output Connector:

Upstream:Thunderbolt™ 4 Female x1(to host)

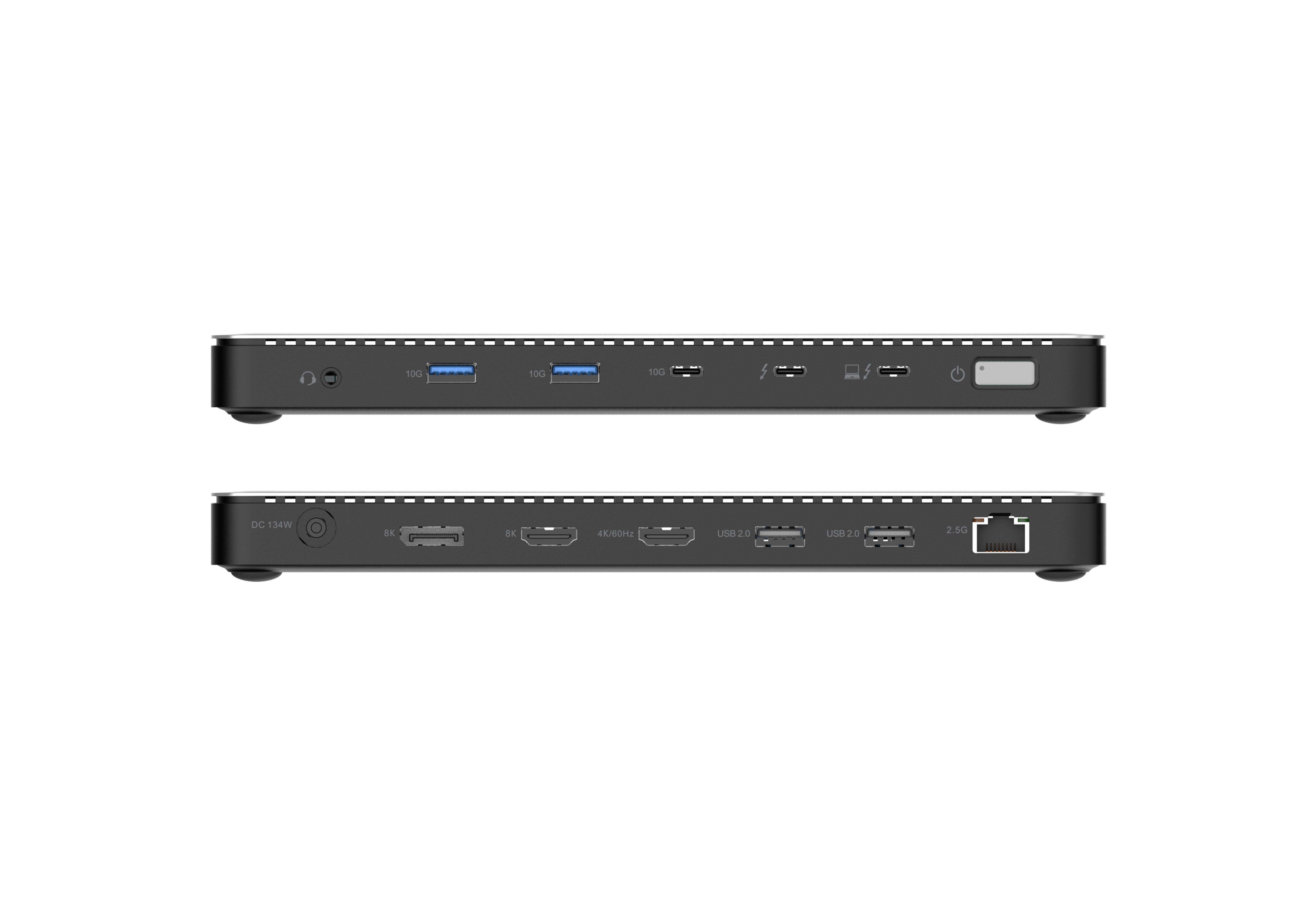

Downstream:Thunderbolt™ 4 Female x1;DP x1(8K/30Hz);HDMI x2(8K; 4K/60Hz);USB-C x1(10G);USB-A x2(10G);USB-A 2.0 x2;RJ45 x1(2.5G);3.5mm Audio JACK x1(384KHz);DC Power Jack x1(134W)


This is a most powerful Thunderbolt™ 4 dock which provides the most advanced, efficient, and versatile I/O solution available with up to 40Gb/s for data and video. The Thunderbolt 4 port allows you to cascade Thunderbolt devices up to 6 levels and to one 8K monitor. The DOCK has allowing you to connect 3 displays output simultaneously with different pictures when works with TBT4/USB4 Windows PC. RJ45 supports max 2.5G bandwidth. USB ports support max 10G data transmission. Besides, it supports smart power function which enables to distribute power according to the power consumption of the connected device, making full use of external power supply. It is designed for TBT4/USB4 based PCs and compatible with TBT3/DP-Alt-mode PCs.


1.Adopting Goshen Ridge solution
2.Designed for TBT4/USB4 based PCs and compatible with TBT3/DP-Alt-mode PCs.
3.Support Thunderbolt 4 max 40Gbps for high speed data and outstanding video transfer, compatible with TBT3, USB4, DP Alt mode, USB protocol
4.Among all streams, allow to output 2 streams at the same time
5.Allow to output single 8K, dual 4K/60Hz or triple (4K/60Hz*3) displays with different pictures on Windows system
6.RJ45 supports 10M/100M/1000M/2.5G bandwidth
7.USB ports support max 10G data transmission
8.Self-powered from DC power adapter with max 96W for host, max 124W for host and Dock
9.Support smart power which enables to flexibly distribute power to PC and Hub in real time according to the consumption of connected devices
10.Compatibility Details:Support TBT4/USB4/TBT3/DP-Alt-mode Hosts;Support Windows/Mac OS/Chrome OS
