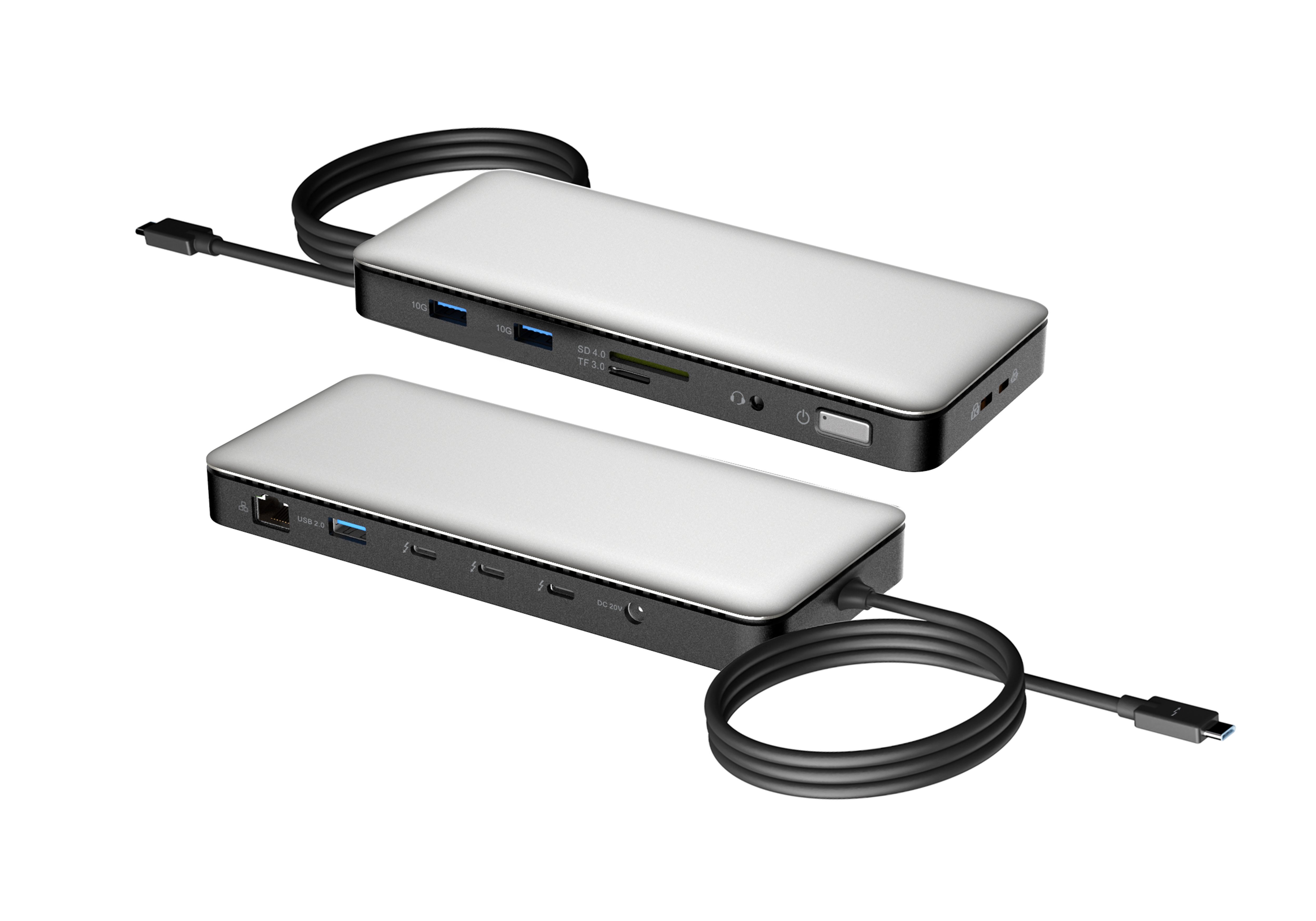

ThunderboltTM 4 11-in-1 Docking Station with captive cable (TB4-DOCK03-D)

  • Category: Dock
Operating System:
Operating System:
Operating System:
Chrome OS
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
Thunderbolt Version:
Thunderbolt 4

Input/Output Connector:

Upstream:Thunderbolt™ 4 Male x1(to host)

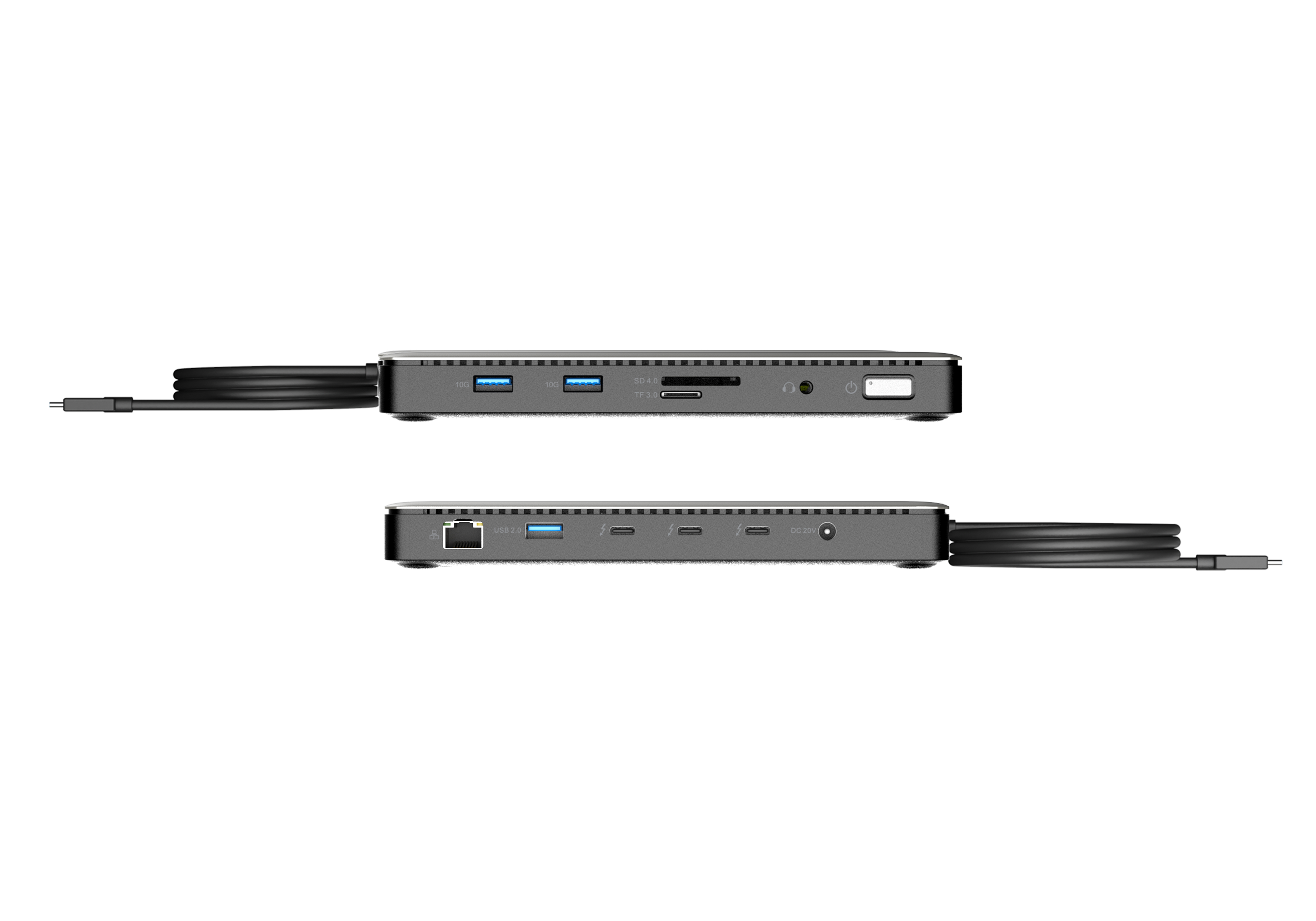

Downstream:Thunderbolt™ 4 Female x3;USB3.2 Type-A Gen2 x2;USB-A 2.0 x1;SD 4.0 x1;mSD 3.0 x1;RJ45 x1(1G);3.5mm Audio JACK x1(96KHz);Power Jack x1(150W)


This is a most powerful Thunderbolt™ 4 dock which provides the most advanced, efficient, and versatile I/O solution available with up to 40Gb/s for data and video. Allowing you to cascade Thunderbolt devices up to 6 levels, to one 8K or two 4K/60Hz monitors. Besides, supports smart power function which enables to distribute power according to the power consumption of the connected device, making full use of external power supply. It is designed for TBT4/USB4 based PCs and compatible with TBT3/DP-Alt-mode PCs.


1.Adopting Goshen Ridge solution;
2.Designed for TBT4/USB4 based PCs and compatible with TBT3/DP-Alt-mode PCs
3.Support Thunderbolt 4 max 40Gbps for high speed data and outstanding video transfer, compatible with TBT3,USB4,DP Alt mode,USB protocol;
4.Self-powered from DC power adapter with max 96W for host, max 140W for host and Dock
5.Support smart power which enables to flexibly distribute power to PC and Hub in real time according to the consumption of connected devices
6.Compatibility Details:Windows 10 or above version supported Thunderbolt 4 host;Mac OS 11 or above version supported Thunderbolt 3 host
