Content
· Supports TBT Gen3, Gen4 or Gen5 full duplex high speed transmission.
· Supports USB4 Gen2/Gen3/Gen4 full duplex high speed transmission.
· Supports 1-CH USB3.2 Gen1 or Gen2 or supports 2- CH USB3.2 Gen2 full duplex high speed transmission.
· Supports 1-CH USB2.0 half duplex transmission.
· Support DP2.1, 4-lane DisplayPort video signal transmission, DP alternate mode.
· Dual-protocol support for TBT mode (PCI Express and DisplayPort) and can be used for daisy chaining devices.
· Triple -protocol support for USB4 mode (USB, PCI Express and DisplayPort*) and can be used for USB4 daisy-chaining devices.
· Plug flip-able use

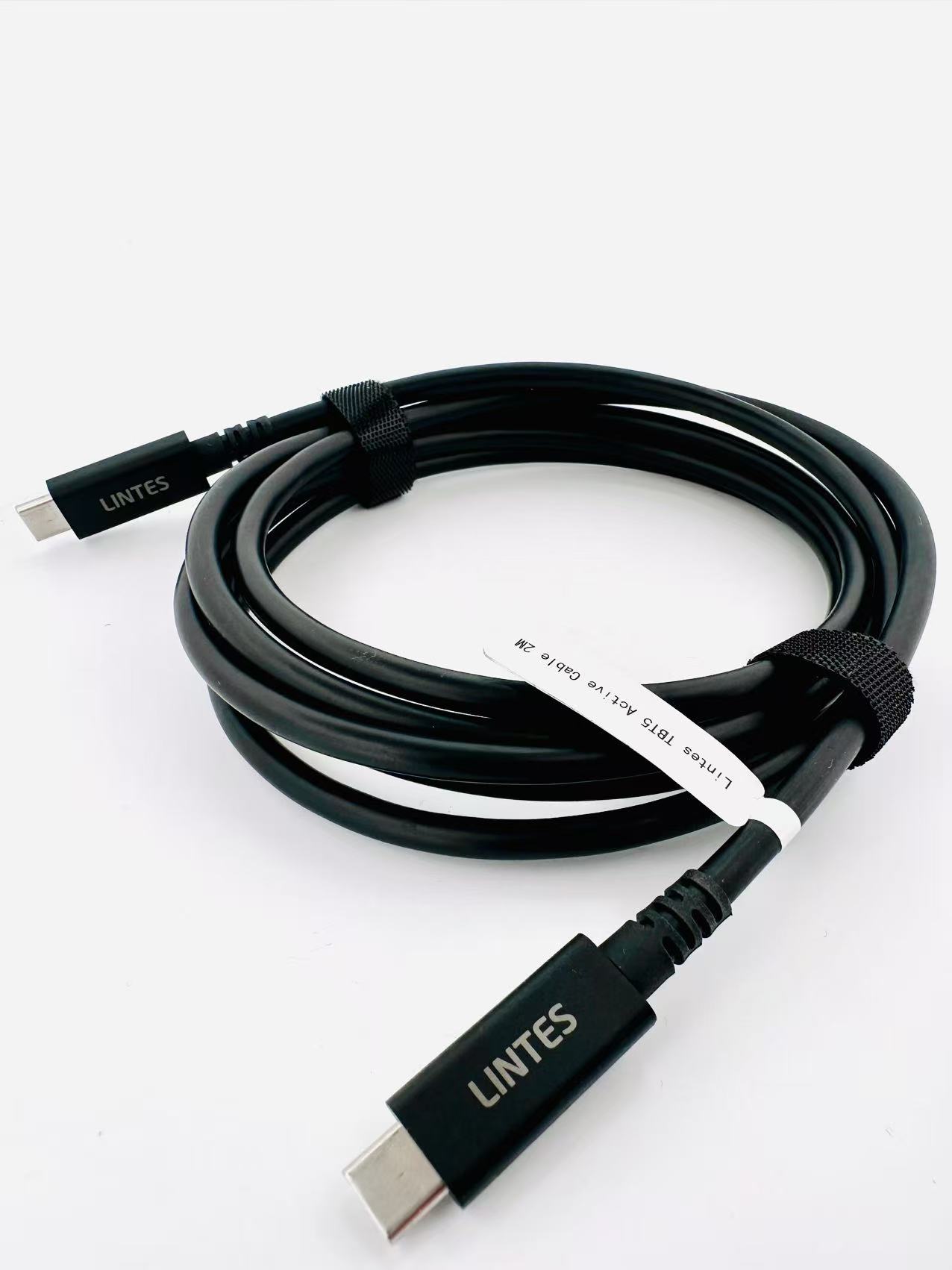

· Thin cable design, OD=5.2mm

· Compliant with USB Power Delivery Specification Rev3.1 Maximum power delivery capacity up to 5A

Specifications

General Specification
o Length: 2.0 meter
o Connector: LOTES Type-C connector or compatible
o Color: Black

Electrical Specification
o Transmission data rate:
- Thunderbolt: Thunderbolt Gen2/Gen3/Gen4/Gen5 full duplex operation.
- DP: DP2.1, 4-lane DisplayPort video signal transmission, DP alternate mode (MFDP).
- USB: 1-CH USB3.2 Gen1 or Gen2 full duplex operation.
- 2-CH USB3.2 Gen2 full duplex operation.
- USB4 Gen2/Gen3/Gen4 full duplex operation.
- 1-CH USB2.0 half duplex operation.

o Operating Voltages: VBUS: 5V – 48V (typ.), VCONN: 5V (typ.)
o Power consumption: 1.4W (typical)
o Current delivery capacity: 5A (max.)
o Compliant with USB Power Delivery Specification Rev3.1

Storage and Operation temperature
o Storage Temperature: Intel Thunderbolt Standard -20~85°C ambient.
o Operation Temperature: Intel Thunderbolt Standard 0~40°C ambient.
