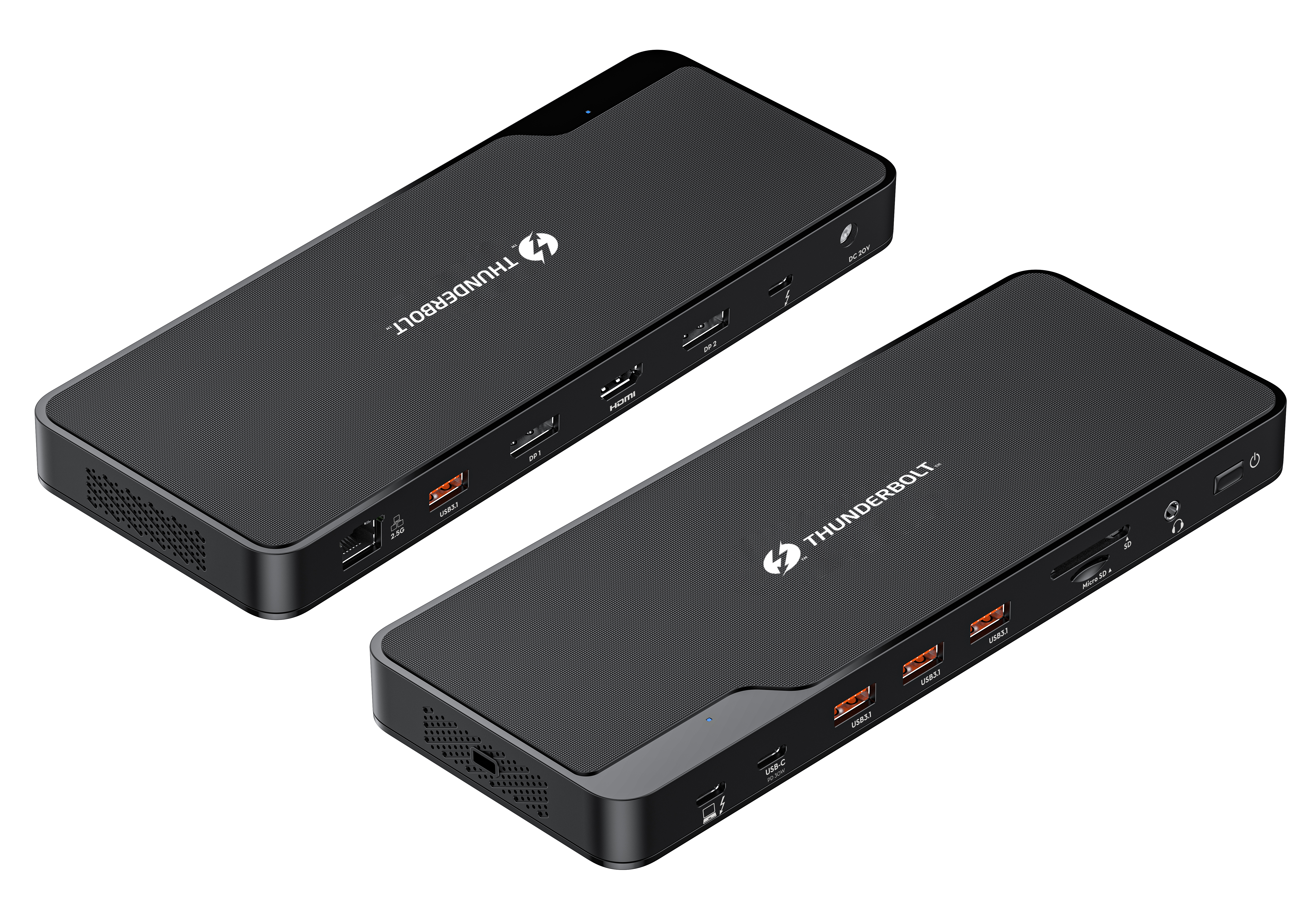

Thunderbolt 4 Docking Station(DK1901A 15-in-1)

  • Category: Dock
C-Smartlink Information Technology Co., Ltd
Operating System:
Operating System:
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
Thunderbolt Version:
Thunderbolt 4

Thunderbolt 4 Docking Station(DK1901A 15-in-1)
One upstream Thunderbolt 4 port (40Gb/s, 85W)
One downstream Thunderbolt 4 ports (40Gb/s & 8K/30Hz & 5V/3A@15W)
1xHDMl, up to 8K/30HZ
2xDP, up to 8K/30Hz
4xUSB-A Gen2, up to 10Gb/s & 5V/0.9A
1xUSB-C Gen2, up to 10Gb/s & 15V/2A@30W
2xSD/TF Supports SD4.0 with max 312MBps
1xEthernet supports 10M/100M/1000M/2.5G bandwidth
1x3.5mm Audio/Microphone
1xDC, Up to 20V/7.5A@150W
One Button: Power on/power off
One Power LED: Blue
