Input/Output Connectors：

Upstream：Thunderbolt 4 Female x1（to host）
Downstream：
Thunderbolt 4 Female x2，DP x1(max 8K/30Hz, DP Alt Mode)，DP x2(max 4K/60Hz, USB Mode)，HDMI x2(max 4K/60Hz, USB Mode)
USB-C x1(10G)，USB-A x1(10G)，USB-A 3.0 x2(5G)，RJ45 x1(2.5G)，SD/TF4.0 x1，3.5mm Audio JACK x1(384KHz)，DC Power Jack x1(150W)

Introduction：

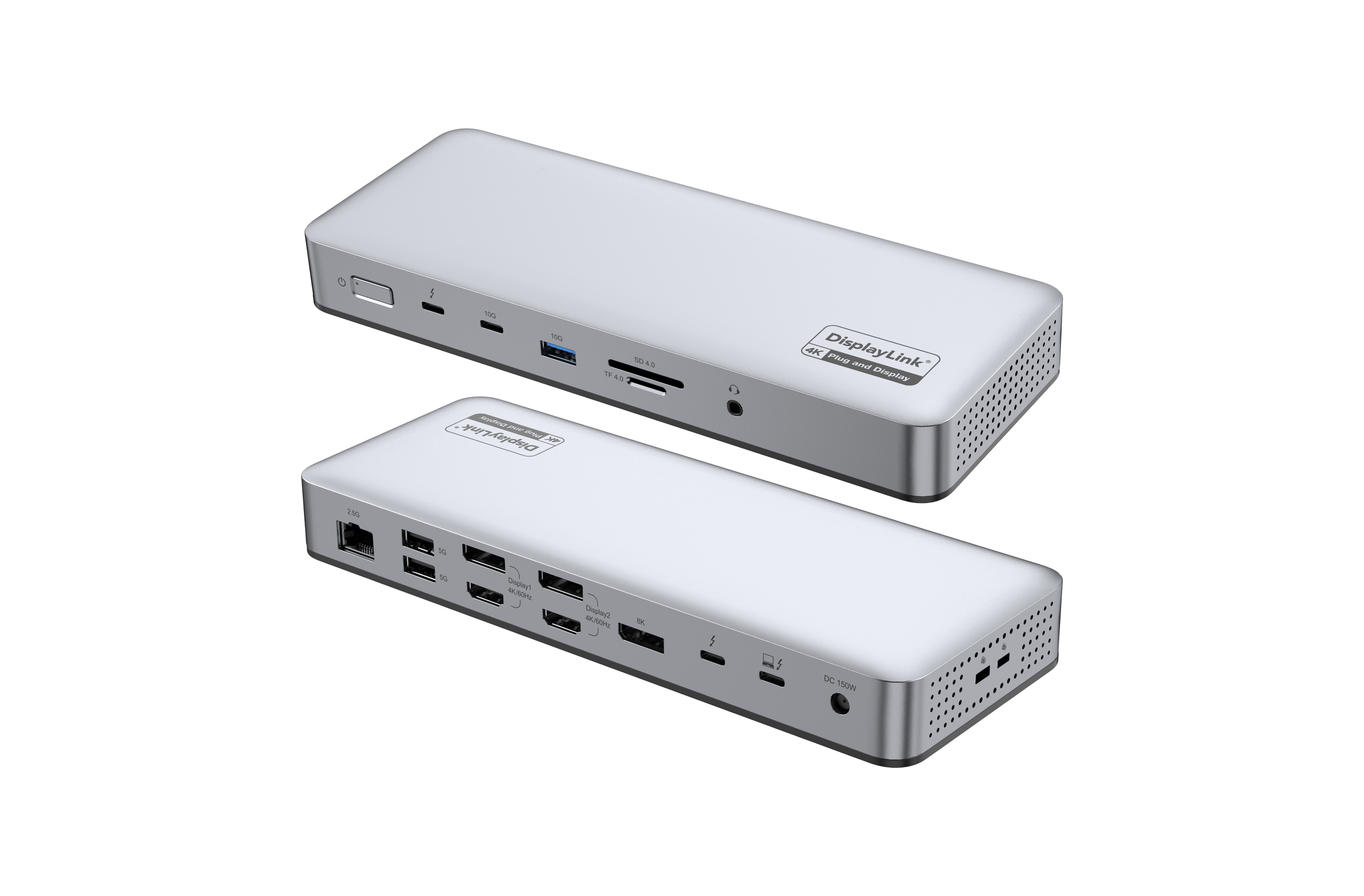

This is a Thunderbolt 4 16-in-1 Quad Displays Docking Station with DisplayLink which provides the most advanced, efficient, and versatile I/O solution available with up to 40Gb/s for data and video. Among all 7 video ports, allow to output max 3 videos when connected to M1, M2,M3; max 4 videos when connected to M1 Pro/Max, M2 Pro/Max, M3 Pro/Max, and M4 series Mac NB and Windows NB. RJ45 supports max 2.5G bandwidth. USB ports support max 10G data transmission. Besides, it supports smart power function which enables to distribute power according to the power consumption of the connected device, making full use of external power supply. It is designed for TBT4/USB4 based PCs and compatible with TBT3/DP-Alt-mode PCs.

Features ：
Adopting Goshen Ridge solution
Designed for TBT4/USB4 based PCs and compatible with TBT3/DP-Alt-mode PCs.
Support Thunderbolt 4 max 40Gbps for high speed data and outstanding video transfer, compatible with TBT3, USB4, DP Alt mode, USB protocol
Among 3 streams, allow to output max 2 streams at the same time and allow to output max single 8K or max dual 4K/60Hz displays with different pictures on Windows system
Among 2 videos (From DisplayLink) allow to output max dual 4K/60Hz with different pictures on both Mac (include M1, M2,M3) and Windows system
Among all 7 video ports, allow to output max 3 videos when connected to M1, M2,M3; max 4 videos when connected to M1 Pro/Max, M2 Pro/Max, M3 Pro/Max, and M4 series Mac series NB and Windows NB
RJ45 supports 10M/100M/1000M/2.5G bandwidth
USB ports support max 10G data transmission
SD/TF supports SD4.0 with max 312MBps
Self-powered from DC power adapter with max 96W for host, max 140W for host and Dock
Support smart power which enables to flexibly distribute power to PC and Hub in real time according to the consumption of connected devices
Compatibility Details:
Support TBT4/USB4/TBT3/DP-Alt-mode Hosts
Support Windows/Mac OS/Chrome OS
