Thunderbolt 3 Titan USB-C Dual 4K Docking Station

  • Category: Dock
Winstars Technology Ltd.
Operating System:
MacOS
Operating System:
Windows
Self or Bus Powered:
Self Powered
Thunderbolt Version:
Thunderbolt 3

Thunderbolt 3 Titan USB-C Docking Station offers up to 60 watts of Power Delivery with the capability of connecting two 4K@60Hz displays. USB-C computer with USB3.1 Gen.2 port compatibility.

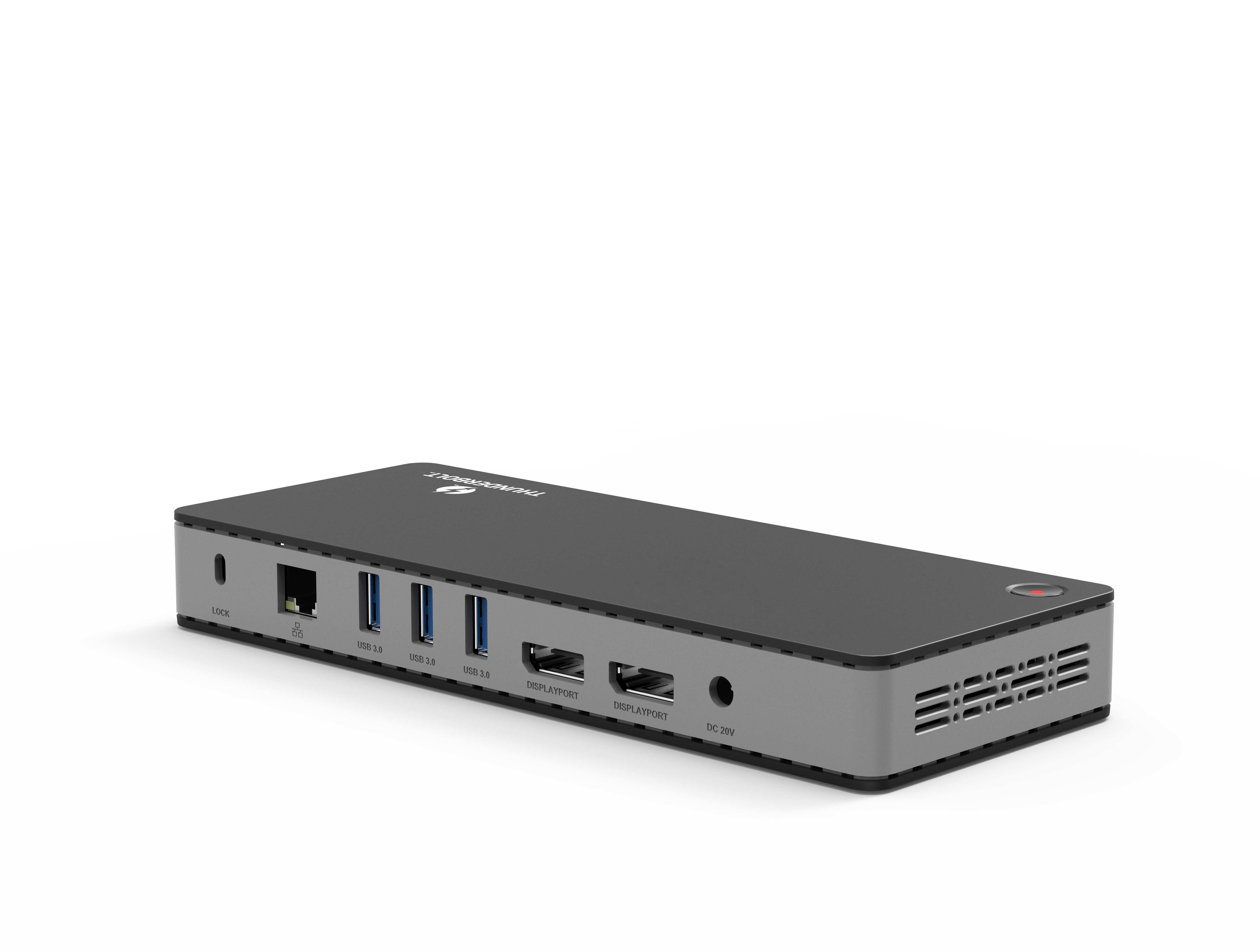

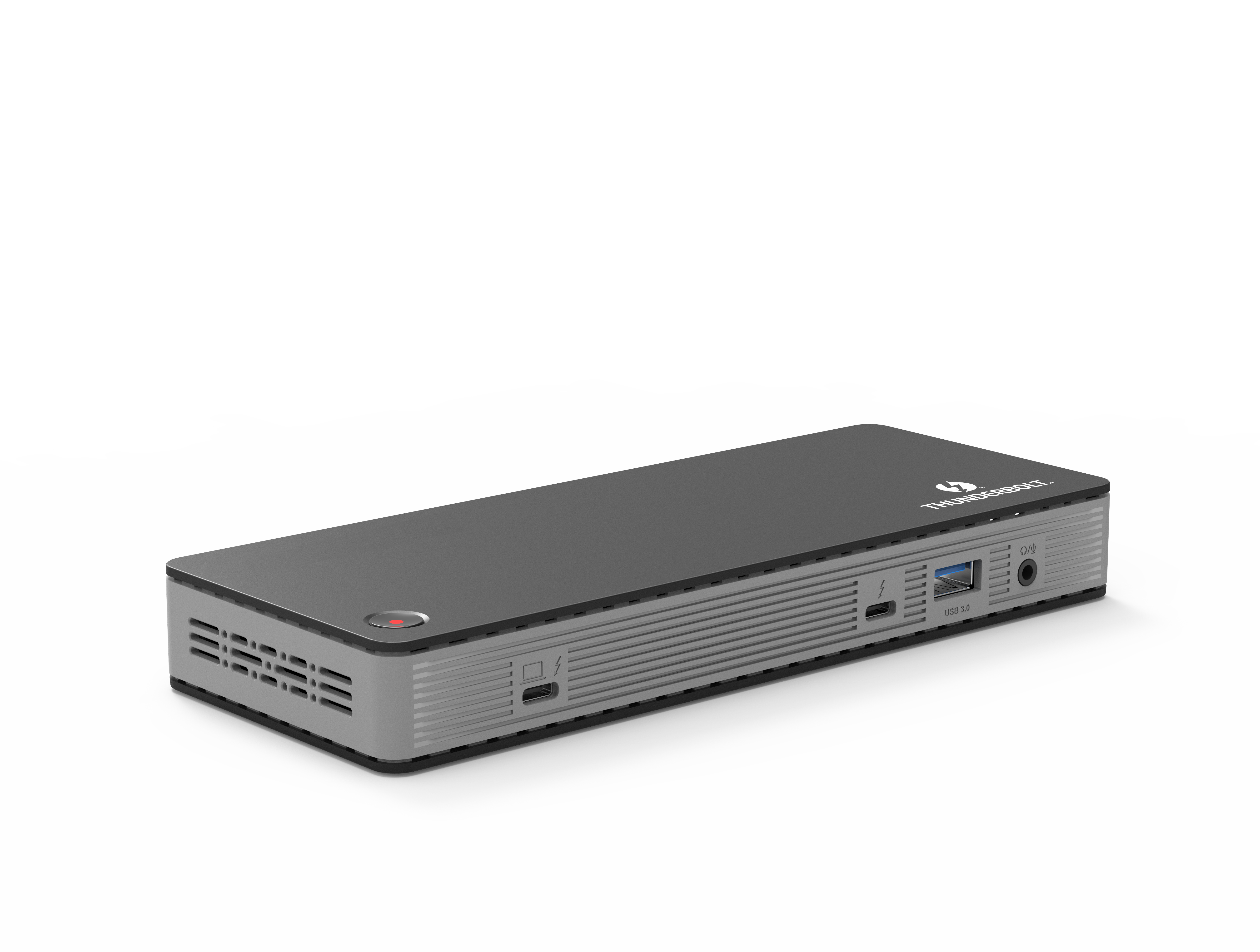

The dock connects to your Windows or Mac OS X computer with a single Thunderbolt 3 (USB-C) cable allowing you to daisy chain up to five Thunderbolt devices to the single Thunderbolt output. Total six USB downstream ports to expand more USB devices connectivity including one USB-C and two USB-A ports running at max.10Gbps, two USB-A ports running at max.5Gbps. In features addition of a Gigabit Ethernet port, 3.5mm stereo jack for audio output and mic in.
Features
Provides 60W of upstream power to Thunderbolt 3 PC systems and MFDP PC systems.
Dual DP 1.4 Display support for HBR (2.7GHz), HBR2 (5.4GHz) and HBR3 (8.1GHz), maximum resolution up to dual 4K/60Hz; dual 2K/144Hz or single 8K/30Hz.
Downstream one USB-C and two USB-A ports provide USB3.1 Gen2 10Gps data rate transfer.
Downstream two USB-A ports provide USB3.0 5Gps data rate transfer.
Expand a Gigabit Ethernet network provide secure, reliable high speed wired networks.
Expand a combo audio 4-pole jack provide audio headset and microphone.
