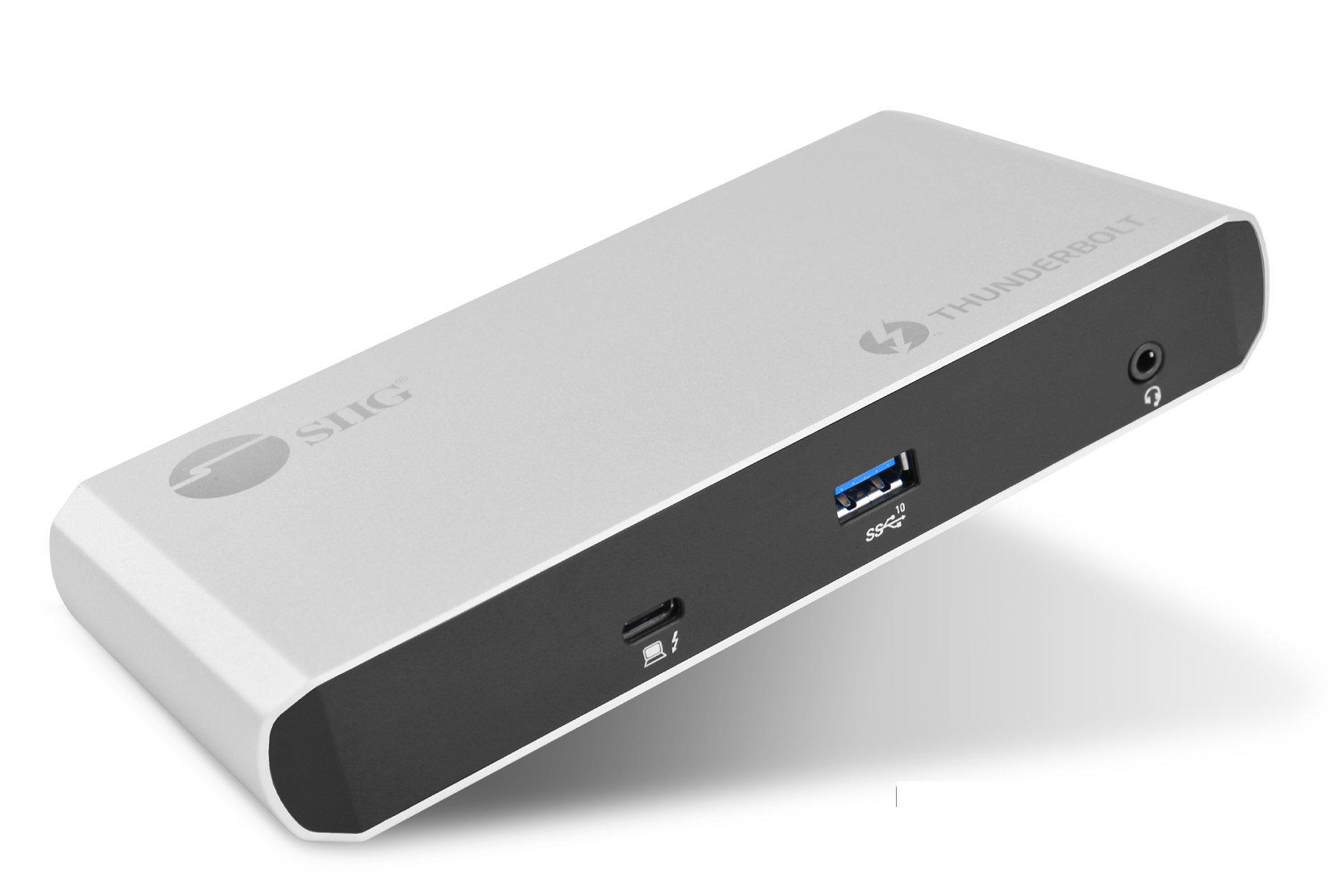

Thunderbolt 3 Dual DP 4K Video Docking Station with PD - Titan Ridge

  • Category: Audio/Video, Dock
SIIG, Inc.
Operating System:
Operating System:
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
Thunderbolt Version:
Thunderbolt 3

- Adds additional connectivity ports to your Thunderbolt 3/DP Alt Mode* USB-C enabled Mac or Windows PC to increase your efficiency
- Comes with next generation Intel Titan Ridge IC making the docking station compatible with Thunderbolt 3 and USB-C DP Alt mode compliant systems
- This docking station adds two USB 3.1 Gen2 Type-C ports, three USB 3.1 Type-A (1 Gen2 with BC 1.2 charging, 2 Gen1) ports, two DisplayPort video ports, one Gigabit Ethernet port, and one dual mode 3.5mm audio jack to connect head phones / Stereo speakers or microphone input
- Experience high resolution graphics by allowing you to connect two 4K Ultra HD displays through DisplayPort connections or a single 5K@60Hz display through dual DisplayPort connection when connected to a Thunderbolt 3 port

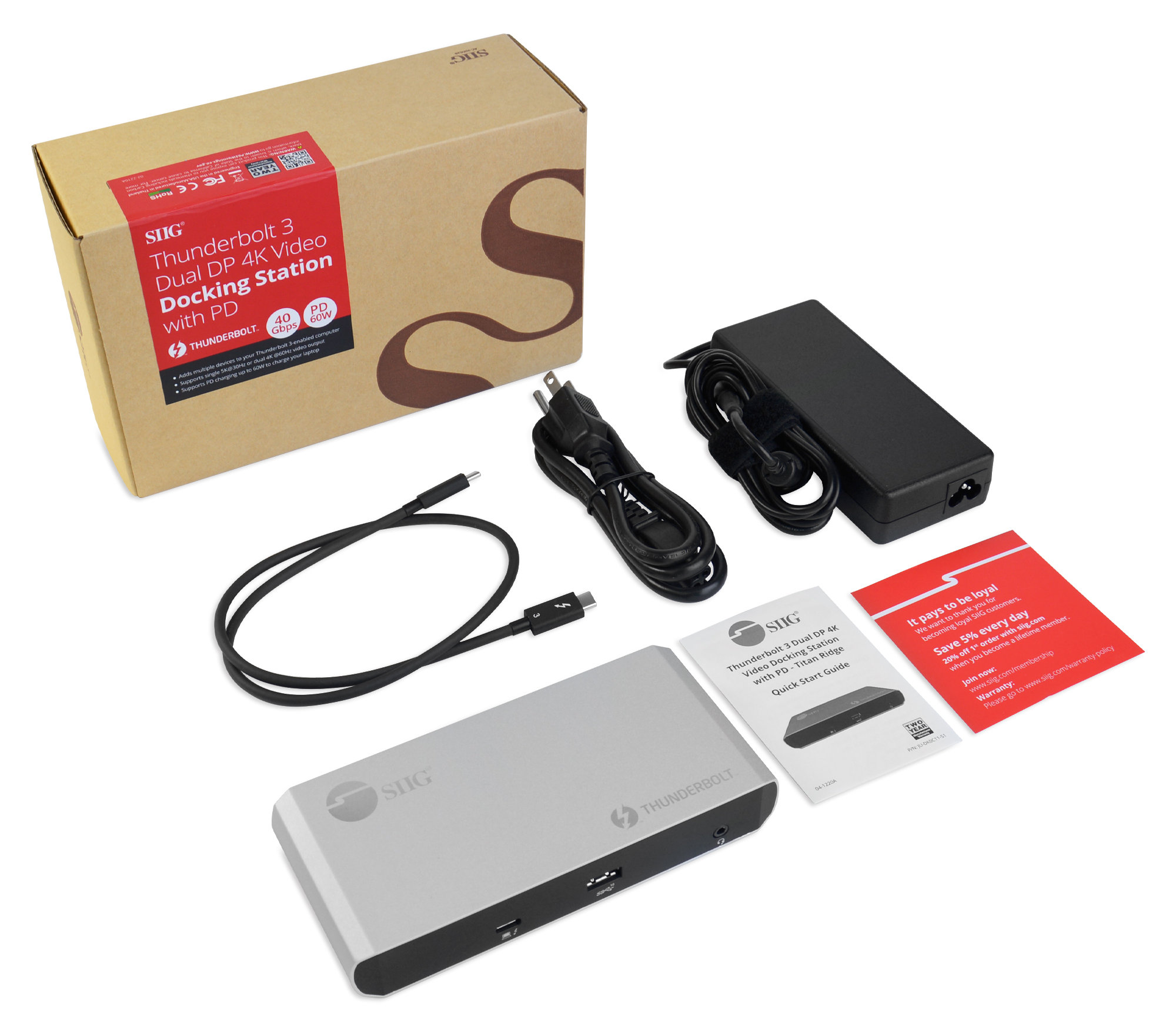

- The included 135W power adapter provides sufficient power for the connected peripherals
- PD 3.0 charging specification compatible supplies up to 60 watts to charge your laptop, notebook, tablet, and smartphone
- Delivers USB 3.1 Gen-2 10Gbps transfer rate for USB Type-C port and 1 USB Type-A port (Front side)
* When connecting to a DP Alt mode USB-C host port the resolution will be 4K@30Hz for single DisplayPort monitor or 1080p for two DisplayPort monitors

Chipset: Intel Titan Ridge JHL7440
Compliant with Intel Thunderbolt 3 specifications
Integrated DisplayPort 1.2 interface for 4Kx2K @60Hz

Integrated Gigabit Ethernet;
- Up to 1000 Mbps data transfer rate
- Backward compatible with 10/100 Mbps
- Supports IEEE 802.3x full duplex operation
- Compatible with IEEE 802.3, 802.3u
- Supports crossover detection and auto-correction

Power Delivery 3.0 (USB PD):
- 5V / 9V / 15V / 20V
- Up to 60 watts

Provides one USB 3.1 Gen 2 Type-A with BC 1.2 charging and two USB 3.1 Gen 1 Type-A downstream port
Supports 5.1 channel surround sound from DisplayPort output
Combo 3.5mm audio jack for Stereo audio output / 2-ch Microphone input

Video cable length:
- DisplayPort: Up to 3M (max)

Video resolution:
Thunderbolt 3 (source):
- Single video:
- up to 4K @60Hz
- 5K @60Hz (5120x3200), dual DisplayPort outputs connect to a single 5K DisplayPort display
- Dual video: up to 4K @60Hz

USB-C Alt Mode (source):
- Single video: up to 4K @30Hz (4096x2160)
- Dual video: up to 1080p @60Hz (1920x1080)

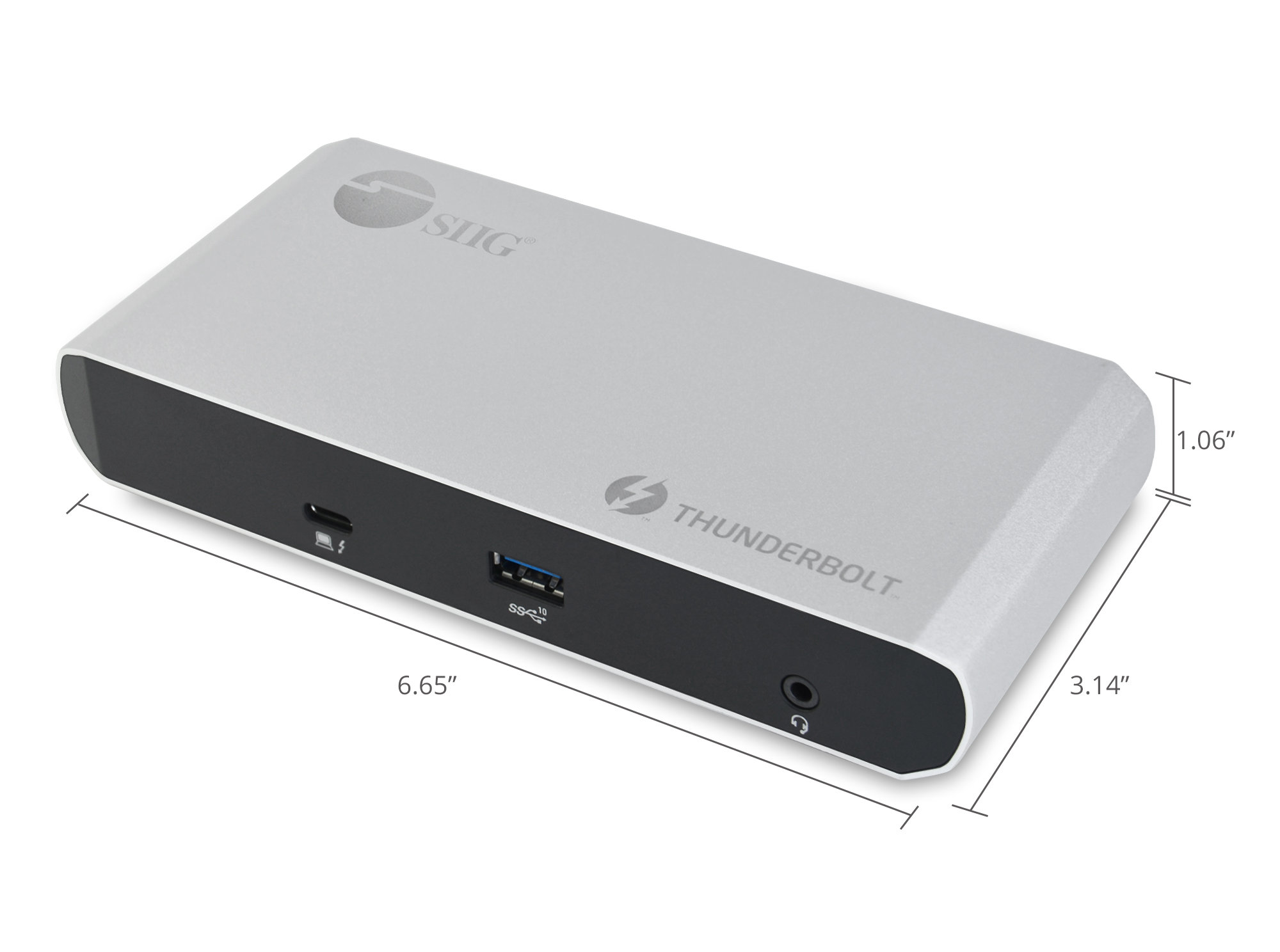

- Dimensions: 6.57" (L) x 1.10" (H) x 3.15" (W)
- Weight: 0.71 lbs
- Color: Iron Gray
- Housing material: Aluminum + plastic

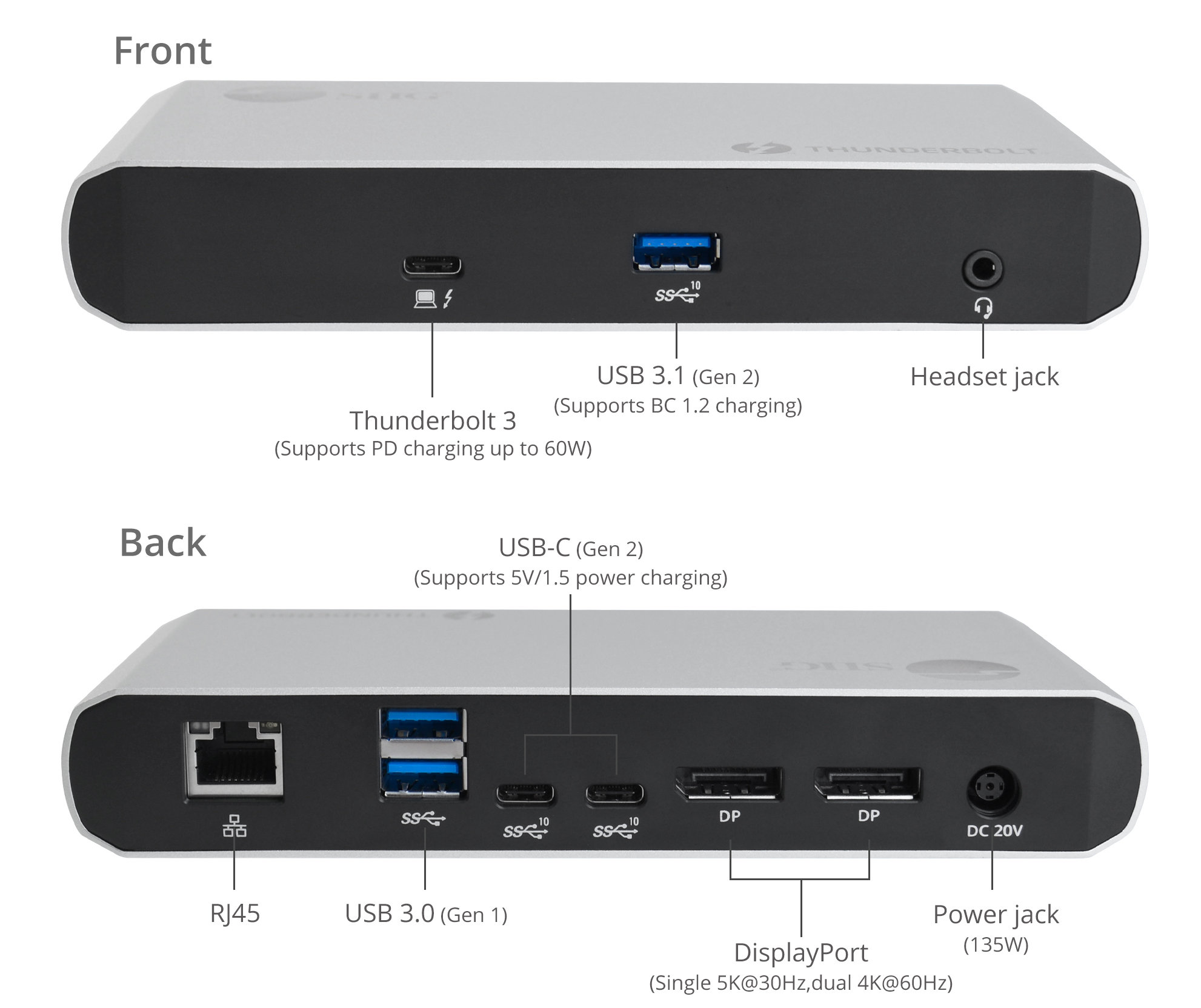

- 1x 24-pin, USB-C, Thunderbolt 3 (With PD Charging), Female, Input
- 2x 24-pin, USB 3.1 Gen 2 USB-C, Female (with 5V/1.5A charging)
- 1x 9-pin, USB 3.1 Gen 2 Type-A, Female (supports BC 1.2 charging)
- 2x 9-pin, USB 3.1 Gen 1 Type-A, Female
- 2x 20-pin, DisplayPort, Female, Output
- 1x 8-pin, RJ45, Gigabit Network, Female, Output
- 1x 3.5mm, Audio/Headset jack
- 1x DC power jack

Power Adapter:
- Input: AC 100-240V/50-60Hz
- Output: DC 20V/6.75A
- UL Listed: E132068 / Class VI

Environmental conditions:
- Operating temperature: 32 to 104 degrees F
- Storage temperature: 14 to 158 degrees F
- Relative humidity: 5% to 90% RH (non-condensing)

Certifications/Standards: FCC, CE, RoHS
Warranty: 2 years limited
Country of origin: Thailand
