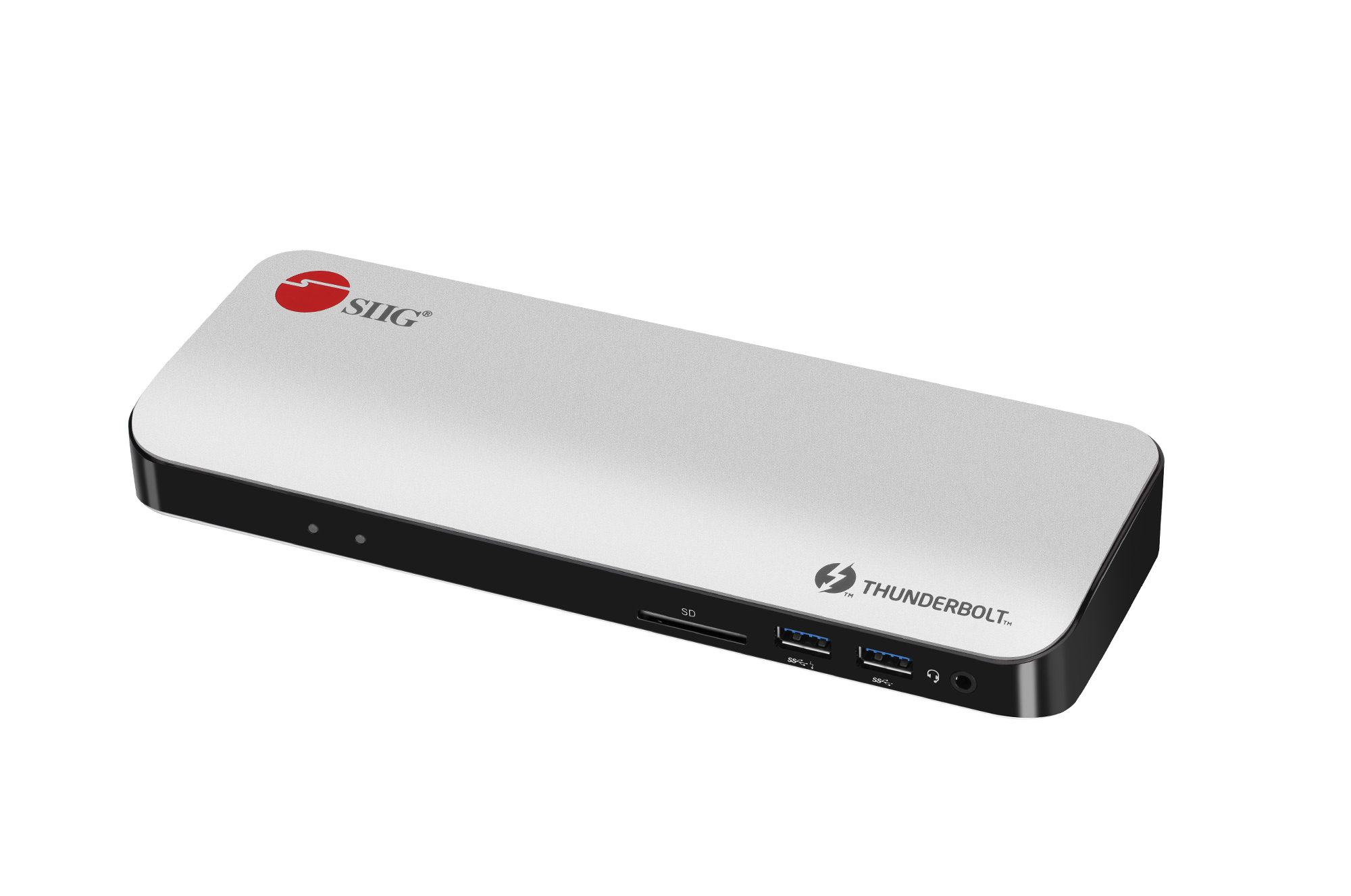

Thunderbolt 3 Dual 4K Video Docking Station with Power

  • Category: Dock
SIIG, Inc.
Operating System:
Operating System:
Self or Bus Powered:
Self Powered
Thunderbolt Version:
Thunderbolt 3

- Adds multiple connectivity ports to your Thunderbolt 3 enabled MacBook Pro or Windows PC to increase efficiency
- Improve your workflow with this docking station that features a Thunderbolt 3 port, five USB 3.0 ports (one with BC 1.2 charging), one HDMI
port, one Gigabit Ethernet port, a stereo jack (headphones/speakers), and an SD memory card slot
- Experience high resolution graphics allows connecting two 4K Ultra HD displays simultaneously through a HDMI and Thunderbolt 3 port. A
single 5K display is supported through the Thunderbolt 3 port
- Thunderbolt 3 port supports data transfer speeds up to 40Gb/s and daisy chaining for Thunderbolt devices, such as monitors, external hard
drives and RAID storage
- Five USB 3.0 Type-A ports support data transfer rates up to 5Gbps with one port supporting BC 1.2 charging (5V/1.5A max)
- Supports Power Delivery (PD) output up to 60W to charge your laptop
- Includes 135 watt power adapter to provide enough power for connected peripherals
- Combination 3.5mm audio jack works as either a stereo audio output to connect speakers/headphones or microphone input


Thunderbolt 3 certified
Compliant with HDMI 2.0 specification
Power Delivery (PD): 5V / 9V / 15V / 20V/3A (60W max)

USB-C Thunderbolt 3 output:
- 40Gbps data transfer rate (Thunderbolt)
- 5K video resolution

USB Type-A output:
- USB 3.1 Gen 1
- 5Gbps data transfer
- 4x, Type-A, data
- 1x, Type-A, data + BC1.2 (5V/1.5A max)

HDMI output:
- Type A, 19-pin, Male
- Resolution: 4K (3840x2160)@60Hz
- 5.1 channel audio

SD 3.0 memory card slot:
- Memory card type: SD / SDHC (UHS-I) / SDXC (USH-I) / microSDHC (UHS-I) / microSDXC (UHS-I)
- Memory card capacity: 2TB (max)

Integrated Gigabit Ethernet:
- Up to 1000 Mbps data transfer rate
- Backward compatible with 10/100 Mbps
- Supports IEEE 802.3x full duplex operation
- Compatible with IEEE 802.3, 802.3u
- Supports crossover detection and auto-correction

3.5mm audio jack
- Stereo audio output (speakers/headphones)
- Microphone input

Supported video cable length:
- HDMI: Up to 5M (max)

Thunderbolt 3 Cable:
- Length: 20 inches
- Connector: 2x, 24-pin, USB-C, Male

- Support HDTV resolution up to 5K / 4K / 1080p / 1080i / 720p / 480p
- Support PC resolution up to 5120x2880@60Hz for USB-C Thunderbolt 3 or 3840x2160@60Hz for USB-C or HDMI

- Dimensions: 9.06" (L) x 1.06" (H) x 3.44" (W)
- Weight: 0.98 lbs
- Color: Silver / Black
- Housing material: Aluminum + ABS

- 1x, 24-pin, USB-C, Thunderbolt 3 (with PD Charging), Female, Input
- 1x, 24-pin, USB-C, Thunderbolt 3, Female, Output
- 4x, 9-pin, USB 3.1, Type-A, Female, Output
- 1x, 9-pin, USB 3.1, Type-A, Female, BC1.2 (5V/1.5A), Output
- 1x, 19-pin, HDMI Type-A, Female, Output
- 1x, 8-pin, RJ45, Gigabit Network, Female, Output
- 1x, 3.5mm, Audio jack (Speakers/Headphones/Microphone)
- 1x, SD memory card slot

Power Adapter:
- Input: AC 100-240V/50-60Hz
- Output: DC 20V/6.75A
- UL Listed: E143709 / Class VI

Environmental conditions:
- Operating temperature: 32 to 104 degrees F
- Storage temperature: 14 to 158 degrees F
- Relative humidity: < 5% to 90% RH (non-condensing)

Certifications/Standards: FCC, CE, RoHS
Warranty: 2 years limited
