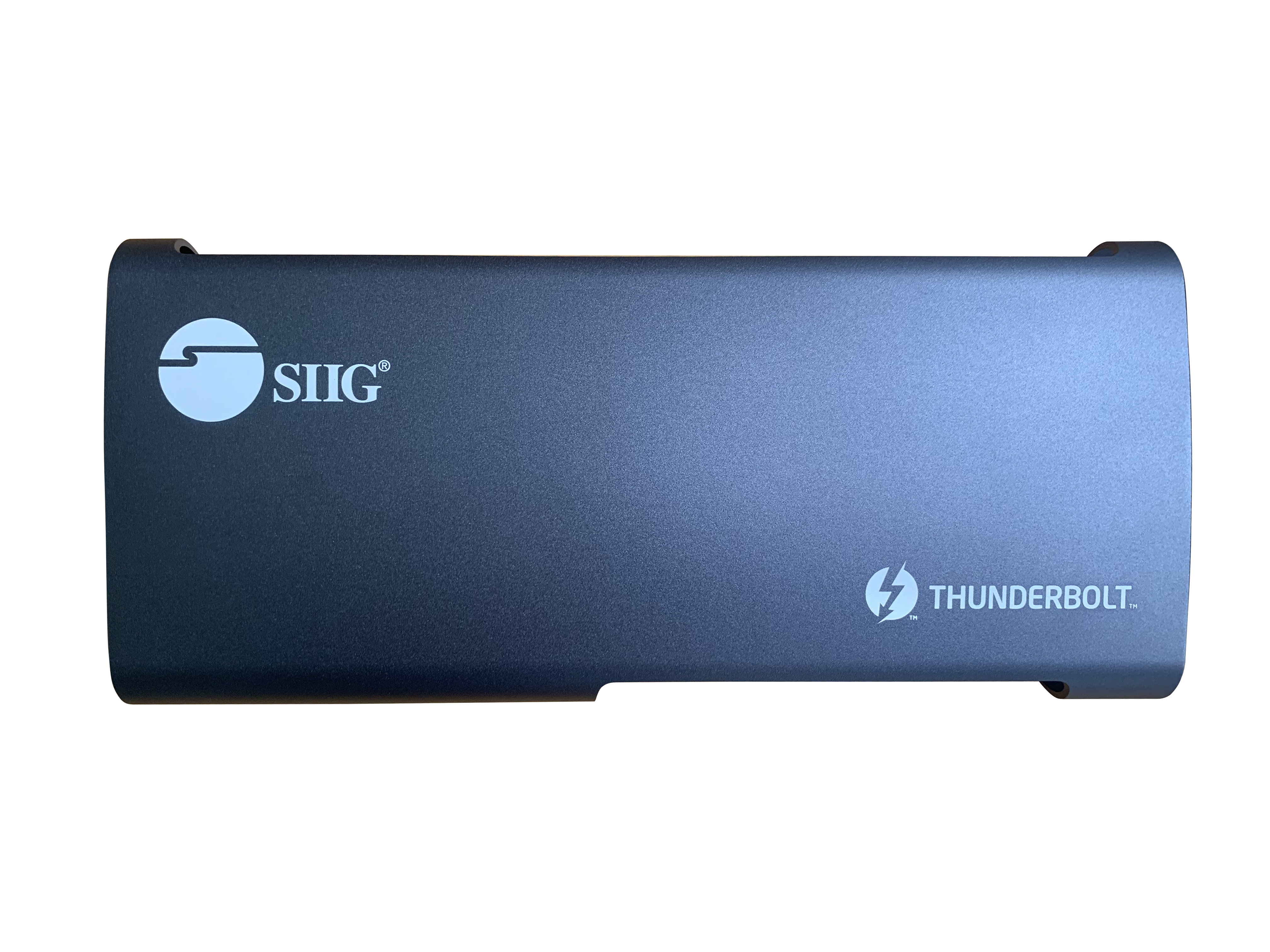

TBT3 Dual 4K Multimedia Docking

  • Category: Dock
SIIG, Inc.
Operating System:
Operating System:
Self or Bus Powered:
Self Powered
Thunderbolt Version:
Thunderbolt 3

Thunderbolt 3 Docking Station offers high-performance expansion of your Thunderbolt 3-enabled Mac or other thunderbolts system. Connect a single display up to 8K 60Hz (7680x4320@60Hz) via the integrated DisplayPort or Dual 4K. Thunderbolt 3's massive 40Gbps bandwidth enables you to run your high resolution display connected through the dock at the full native performance of your system's graphics processor while also enabling access to your wired network and existing USB peripherals.

A. Intel Titan Ridge Universal dock support both Thunderbolt Host or Notebook.
B. Supports 2x thunderbolt3,40Gbps intotal and Thunderbolt 3 daisy chain.
C. Supports single 8K@60Hz (7680x4320), 5K@60Hz (5120x2880) UHD or dual 4K@60Hz display output.
D. Thunderbolt Port A support PD 60W charging (5V/9V/15V/20V @3A).
E. Thunderbolt Port B support PD 15W charging (5V@3A).
F. USB3.1 Gen 1 Type A supports 5Gbps and 5V@1.5A.
G, RJ-45 Gigabit 10/100/1000 Ethernet Port
H. SD4.0 (UHS-II) Card-Reader supports 280MB/s
I. CFast2.0 Card-Reader supports 500MB/s J. XQD Card-Reader supports 400MB/s
K. Micro SD(UHS-I) Card-Reader supports 104MB/s
