Thunderbolt 3 DP 1.4 Docking Station with Dual M.2 NVMe SSD & PD

  • Category: Audio/Video, Display, Dock, Storage
SIIG, Inc.
Operating System:
Operating System:
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
Thunderbolt Version:
Thunderbolt 3

Advanced docking station transforms a single Thunderbolt 3 port into one Thunderbolt 3 port, one DisplayPort 1.4 port, two USB 3.1 Gen2 Type A/C ports, two USB 3.1 Gen1 Type-A with BC 1.2 ports, one Gigabit Ethernet port, an SD memory card reader, and a stereo audio/microphone connectivity with PD 3.0 charging up to 87W. Adds 2 storage drives via dual M Key NVME SSD capabilities

- TB3 with DP 1.4: Up to single 8K@30Hz / single 5K@60Hz / Dual 4K@60Hz
- TB3 with DP 1.2: Up to single 5K@30Hz / Dual 4K@30Hz

Power Delivery specification:
- PD revision 3.0
- 87W (max)

USB data transfer rate
- USB 3.1 Gen 2 Type-A/C: Up to 10Gbps
- USB 3.1 Gen 1 Type-A: Up to 5Gbps (Front port supports BC 1.2)

Ethernet: 10/100/1000 Mbps (Gigabit)

- Transfer rate: up to 1500Mbps
- Form factor: M.2 M-Key 2280
- Compatible with single or dual SSD installation
- Separate drive letter for each installed SSD

SD memory card:
- Data transfer rate: Up to 270Mbps (UHS-II)
- Class: UHS-ll SD 4.0, UHS-I SD 3.0
- Capacity: 2TB (max)

Audio: 3.5mm jack stereo

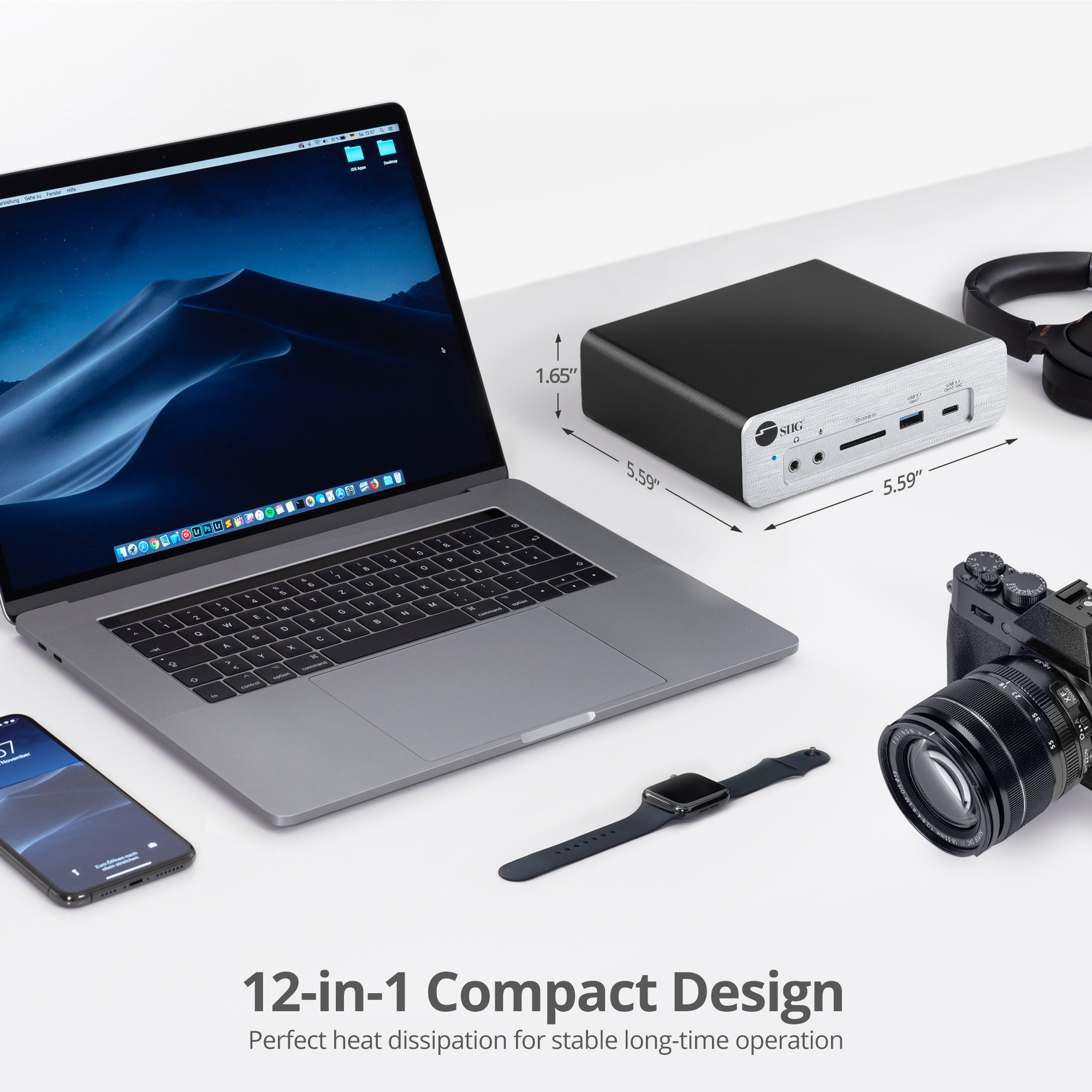

- Dimensions: 5.55" (L) x 1.67" (H) x 5.86" (W)
- Weight: 1.98 lbs
- Color: Black
- Housing material: Metal

Power adapter:
- Input: 100-240VAC, 50/60 Hz
- Output: DC 20V/7.5A
- UL Listed: E209833 /Level: VI

Environmental conditions:
- Operating temperature: 32 to 104 degrees F
- Storage temperature: -4 to 158 degrees F
- Relative humidity: 10 to 90% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS

TAA compliant
Warranty: 2 years limited
Country of origin: Taiwan
Note: Does not work with USB-C DP Alternate mode (DP Alt) ports
