Thunderbolt™ 3 to Dual DisplayPort Adapter (CB-TB3DP122)

  • Category: Adapter/Expansion, Audio/Video
Operating System:
Operating System:
Self or Bus Powered:
Bus Powered
Thunderbolt Version:
Thunderbolt 3

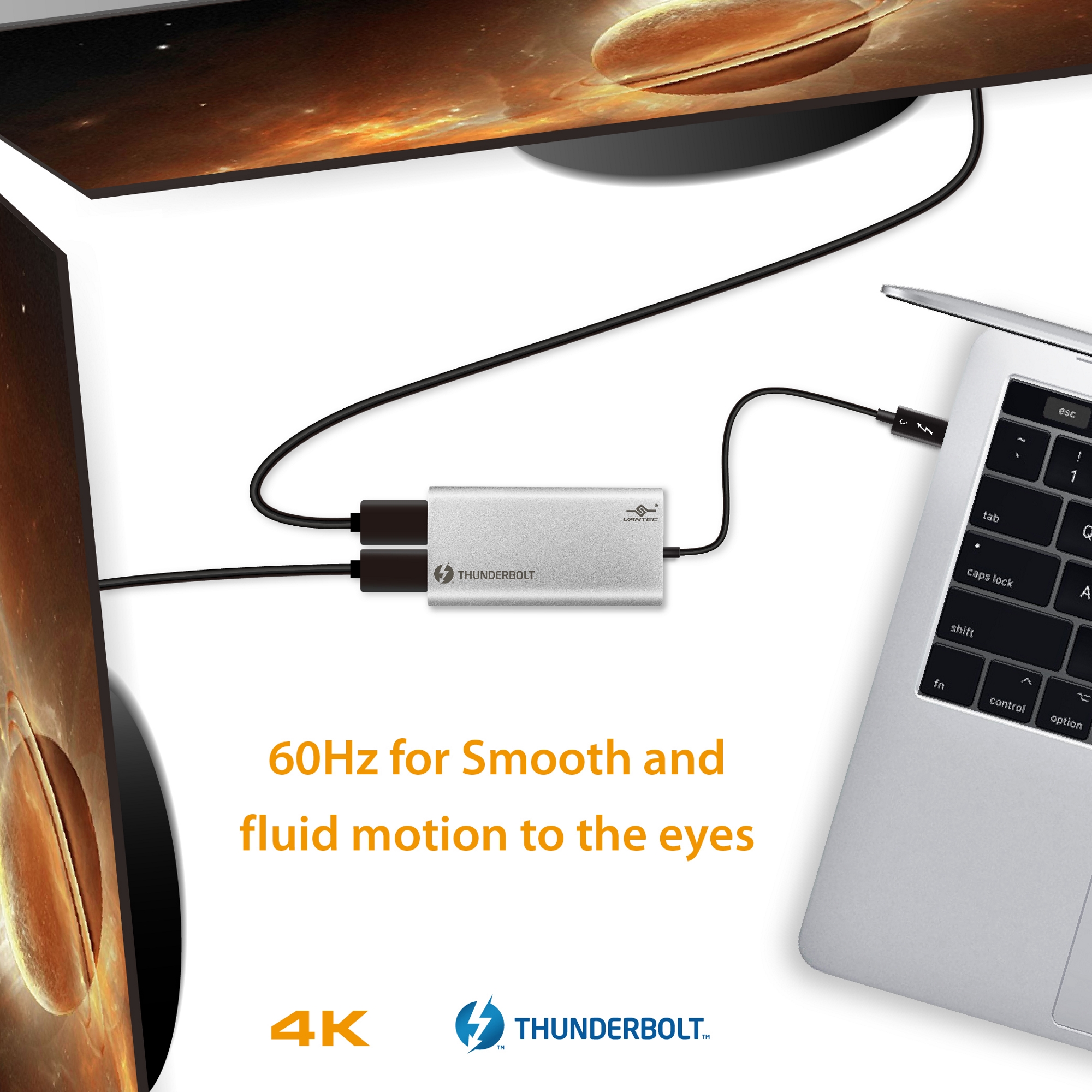

Vantec Thunderbolt™ 3 to Dual DisplayPort 4K (60Hz) Adapter (CB-TB3DP122), Design for Mac and Windows Systems - Support Two 4K 60Hz or single 5K 60Hz

The Vantec Thunderbolt™ 3 to Dual DisplayPort 4K (60Hz) Adapter is designed to connect two 4K monitors to provide exceptional visual experience. This Adapter with its Thunderbolt™ 3 interface offers the highest speed to display 4K video content at 60Hz for Ultra clear images and smooth video with Audio support. The plug and play features are simple and do not require any drivers, just connect and it is ready. For Gamer or any visual design professional, this adapter offers clear, sharp and smooth Dual 4K videos/images or even Single 5K. For 4K video editor, it provides real-time display capability without consuming system resources.


The Vantec Thunderbolt™ 3 To Dual DisplayPort 4K (60Hz) Adapter lets users easily connect two DisplayPort Monitors from PCs with Thunderbolt™ 3 interface. This adapter does not need to install extra drivers and it is plug and play.

* Designed, Tested and Certified with Mac OS X and Windows OS
* Incorporates DisplayPort™ Technology

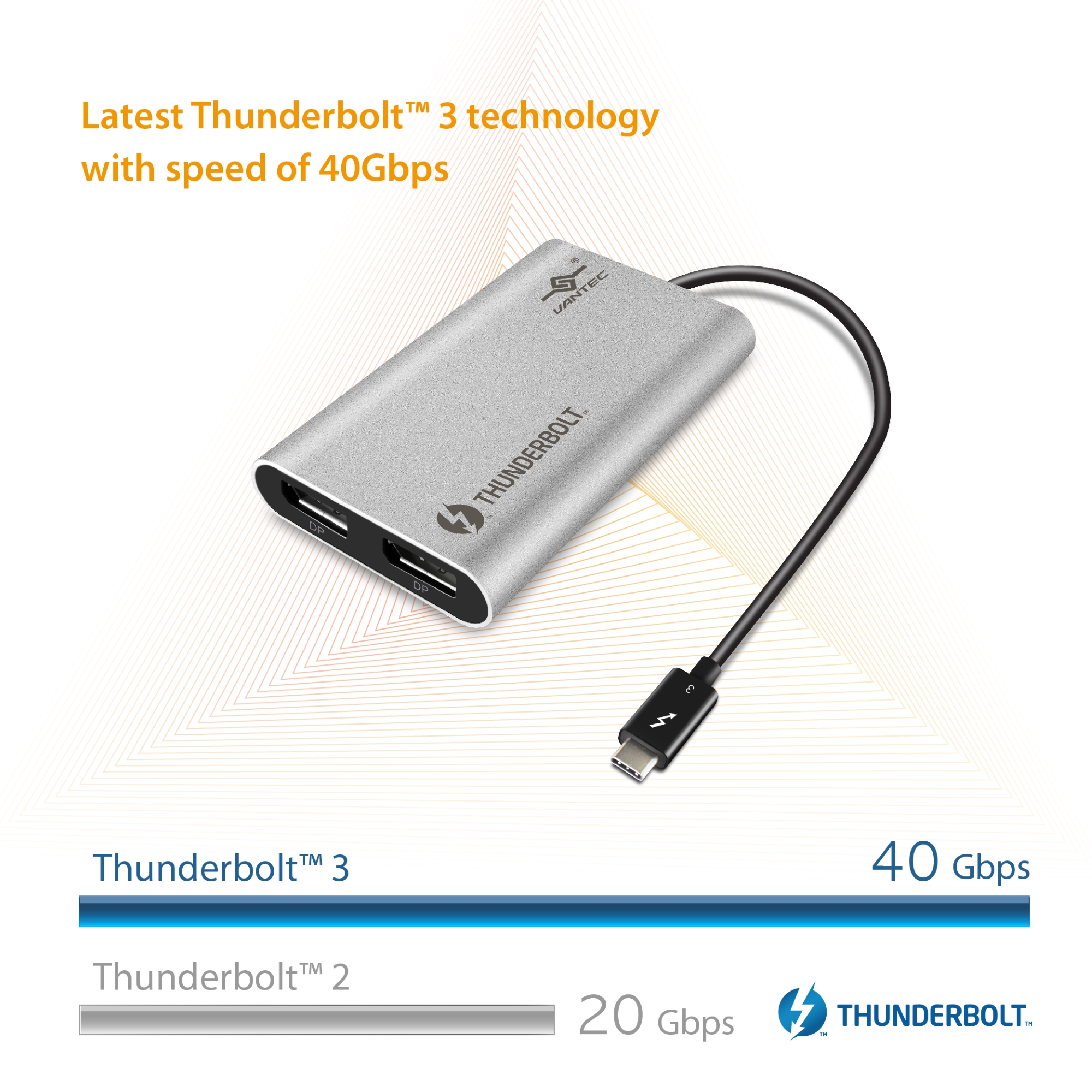

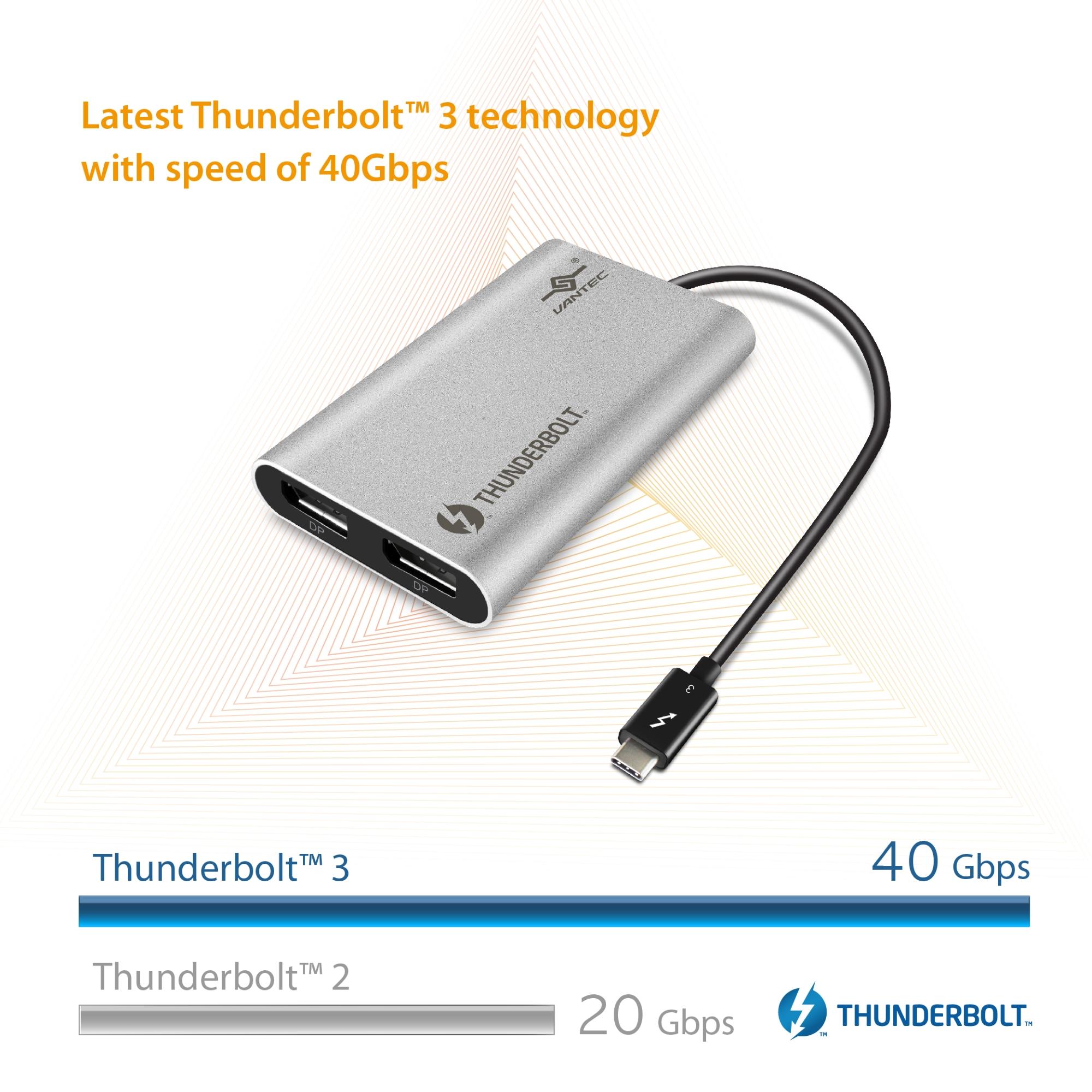

* Support Third Generation Thunderbolt™ 3
* Support bus-powered
* Supports Two UHD resolution up to 4096 x 2160@60Hz or One 5120x2880@60Hz
* Compliant to DisplayPort™ Specification 1.2
* Converts a native DisplayPort Source into a Dual-mode DisplayPort output

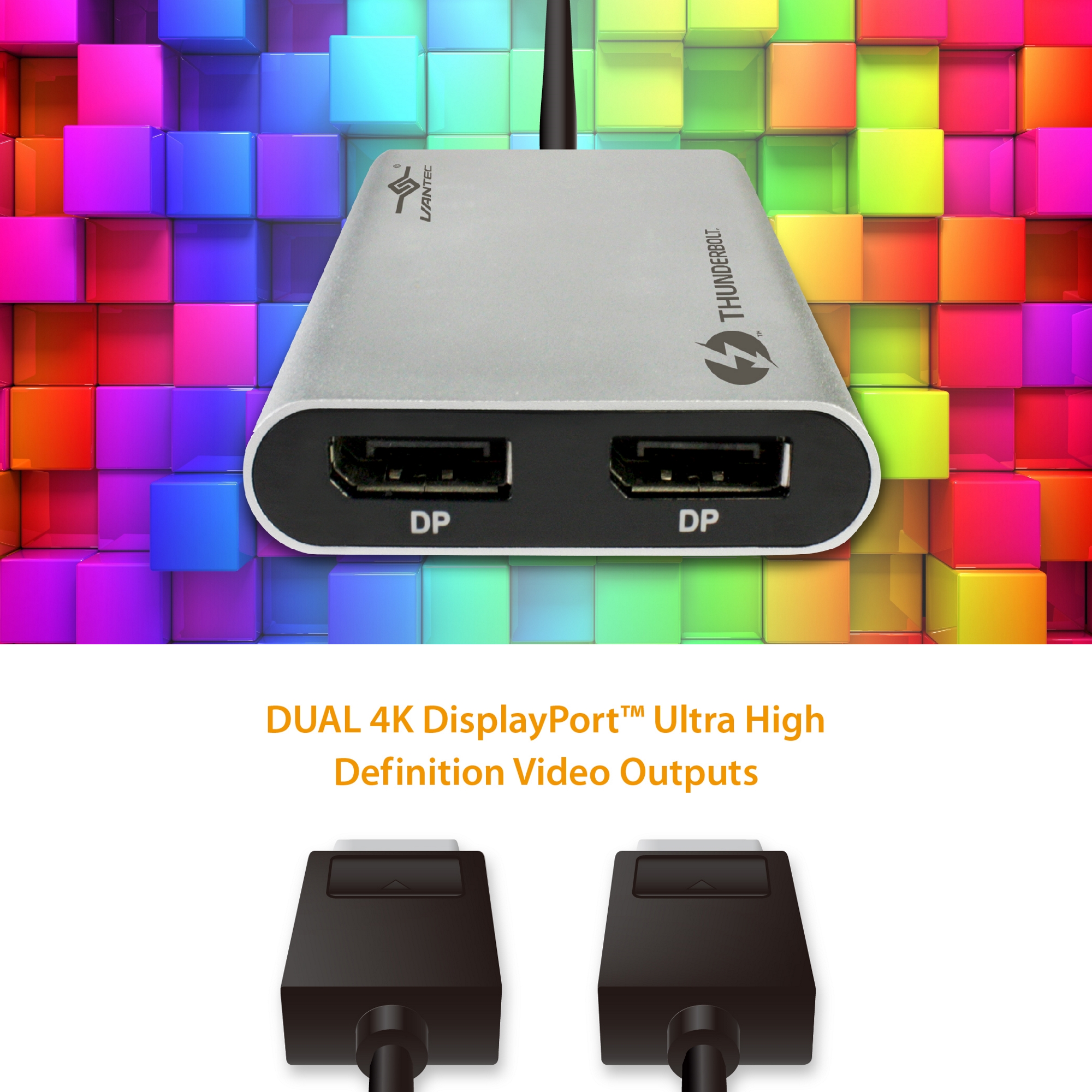

* DisplayPort™ female connector x2


Model: CB-TB3DP122
Device Support Input: Thunderbolt™ 3 (USB-C, 24 pin Male)
Device Support Output: Dual DisplayPort™ (Female)
Supported Resolutions: Up to 4096x2160 (Dual 4K), or 5120x2880 (Single 5K)
Display Modes: Primary, Extended or Mirror
Power: Bus-powered, no external power needed
Material: Aluminum

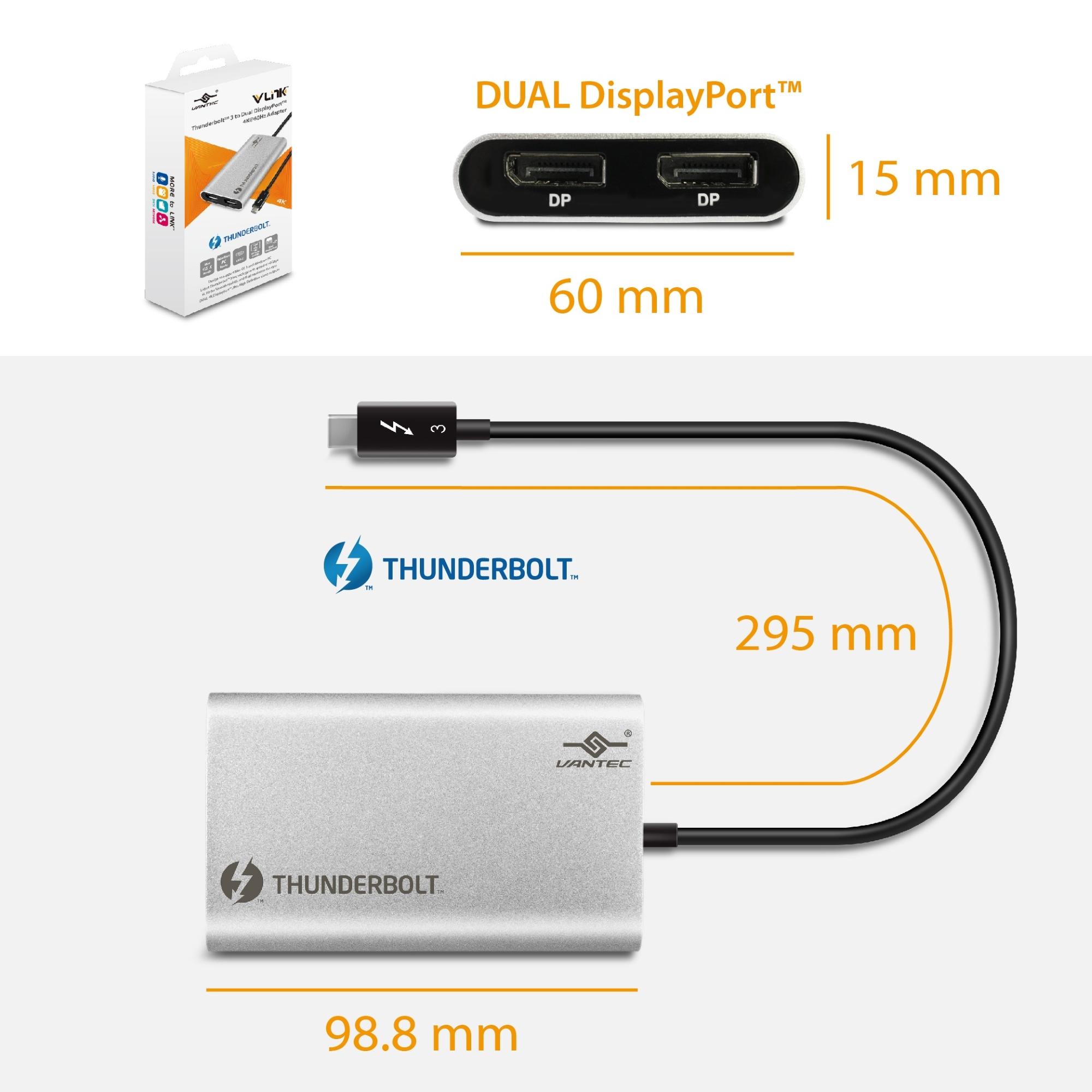

Dimensions: 3.9 x 2.4 x 0.6 inches / 98.8 x 60 x 15 mm
Cable Length: 11.6 inches / 295 mm
Weight: 4.4 oz. / 125g


Operating temperature: 0°C - 40°C
Non-Operating temperature: -20°C - 70°C
Operating Humidity: 90% RH

OS Supported:

Windows 10, 8.1; Apple OS X 10.11, 10.10

System Requirements:

System OS with the latest support for Thunderbolt™ 3
Thunderbolt™ 3 port
DisplayPort™ Port Monitor(s), Preferred 4K Monitors

What's Included:

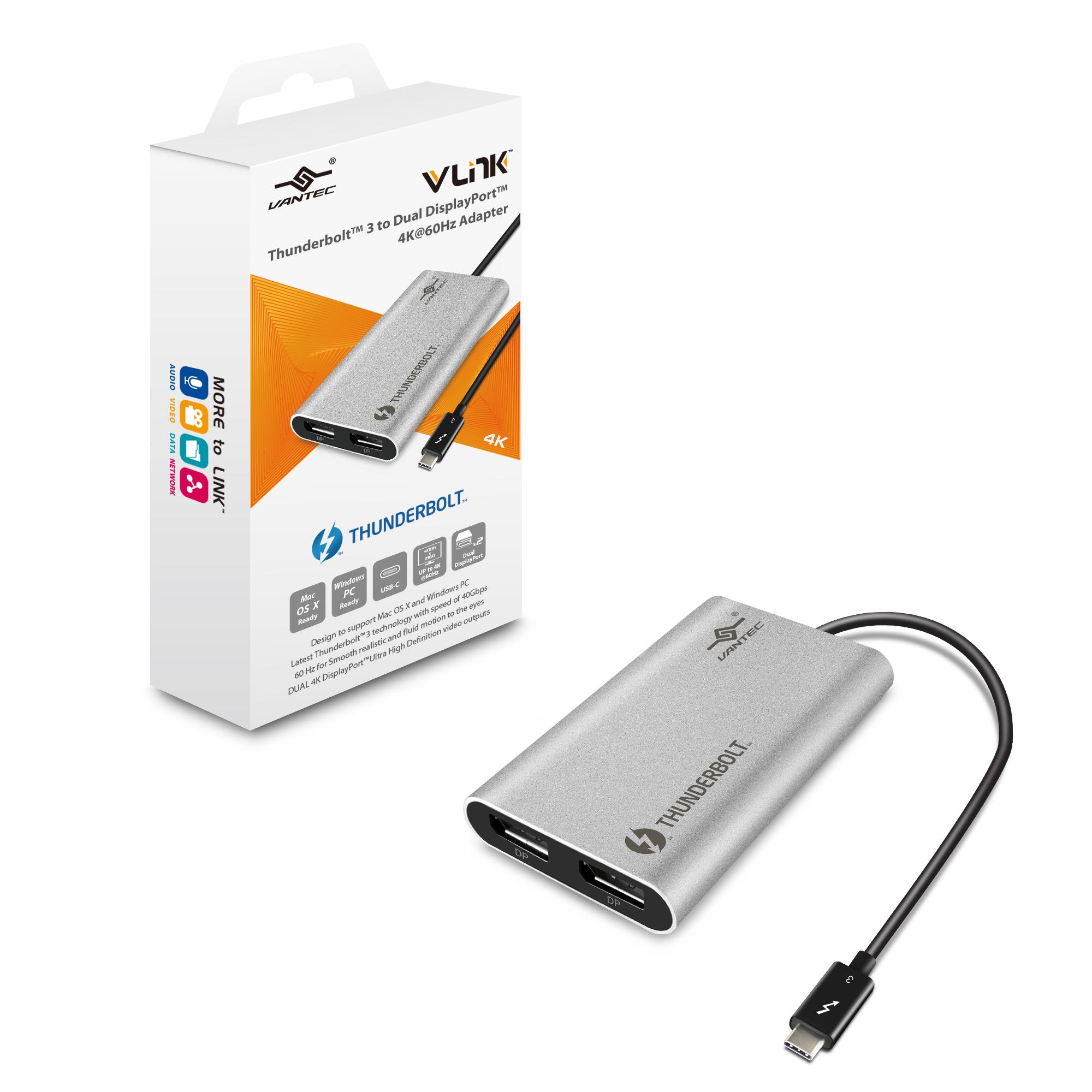

Thunderbolt™ 3 to Dual DisplayPort™ 4K@60Hz Adapter
