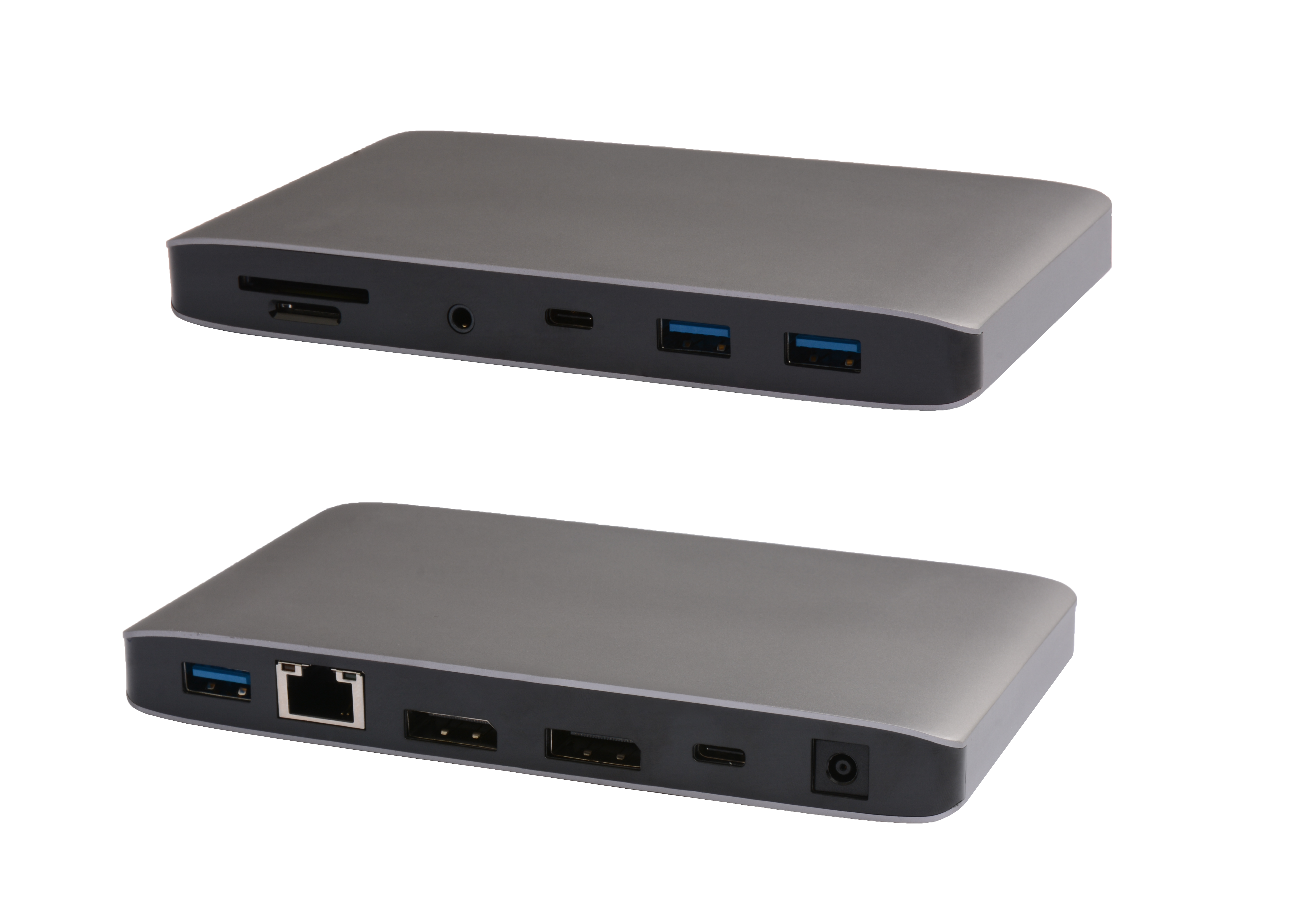

Thunderbolt™ 3 Docking (Model: TB3-DOCK03)

  • Category: Dock
Operating System:
Operating System:
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
Thunderbolt Version:
Thunderbolt 3

Product Description:
This is an Thunderbolt Certified all-in-one Thunderbolt™ 3 Docking. With Intel Thunderbolt 3Titan Ridge solution,this docking enables you to extend your TBT3/Multi-Function DisplayPort (MFDP) Type-C host to be multiple ports like video/USB/Ethernet/SD/Micro SD/audio ports which can be connected to displays, USB devices, Ethernet source, memory cards, headset, etc, offering an integrated solution for high quality office working and home entertainment. Besides, a 120W power adapter is provided to support the functioning of this product and meanwhile charge for the host.

Thunderbolt™ 3 Receptacle x1
DC Power Jack x1
DisplayPort Receptacle x2
RJ45 Receptacle x1
USB3.2-A 5GReceptacle x1
USB3.2-A 10GReceptacle x2
USB Type-C 10GReceptacle x1
Audio 3.5mm combo jack x1
SD4.0 socket x1
mSD4.0 socket x1

Support to work on Thunderbolt3 or Multi-Function DisplayPort (MFDP) Type-C Host;
When working on Thunderbolt3 Host (Mac OS and Windows), the features of each port are as below:
Thunderbolt 3 Port: Support input bandwidth up to 40Gbps (data+video) and host charging up to 60W (5V,9V,15V,20V @ 3A) Note: it is required to connect this product with host via a certified TBT3 cable, a non-TBT3 cable may result in non-function
DP ports support 4 lane, DP1.4 resolution up to 8K 30Hz and dual video output(MST): TBT3 port + DP port, resolution up to 8K 30Hz + 4K 30Hz;
USB-A (on back panel): Support USB3.2 Gen 1 up to 5Gbps and max 5V/900mA downstream charging;
USB-A 1 (on the side) supports USB3.2 Gen 2 up to 10Gbps and max 5V/1.5A downstream charging;
USB-A 2 (near Type-C) supports USB3.2 Gen 2 up to 10Gbps and max 5V/900mA downstream charging;
Type-C port supports USB3.2 Gen 2 up to 10Gbps and max 5V/1.5A downstream charging;
RJ45 supports Gigabit Ethernet (10M/100M/1000M);
Audio 3.5mm combo jack supports 8/16/22.05/24/32/44.1/48/96/176.4/192/384KHz;
SD4.0 & mSD4.0 port support dual LUN UHS-II, support UHS-I: SDR12/ SDR25/ SDR50/ DDR50/ SDR104, support UHS-II: Full Duplex Mode and Half Duplex Mode. Up to 312MB/s data rate;
DC Jack supports 120W(20V/6A) power supply.

Operation Temperature: 0℃ to +45℃
Storage Temperature: 0℃ to +70℃
Size: 148*80*17.5mm
Weight: 325g
