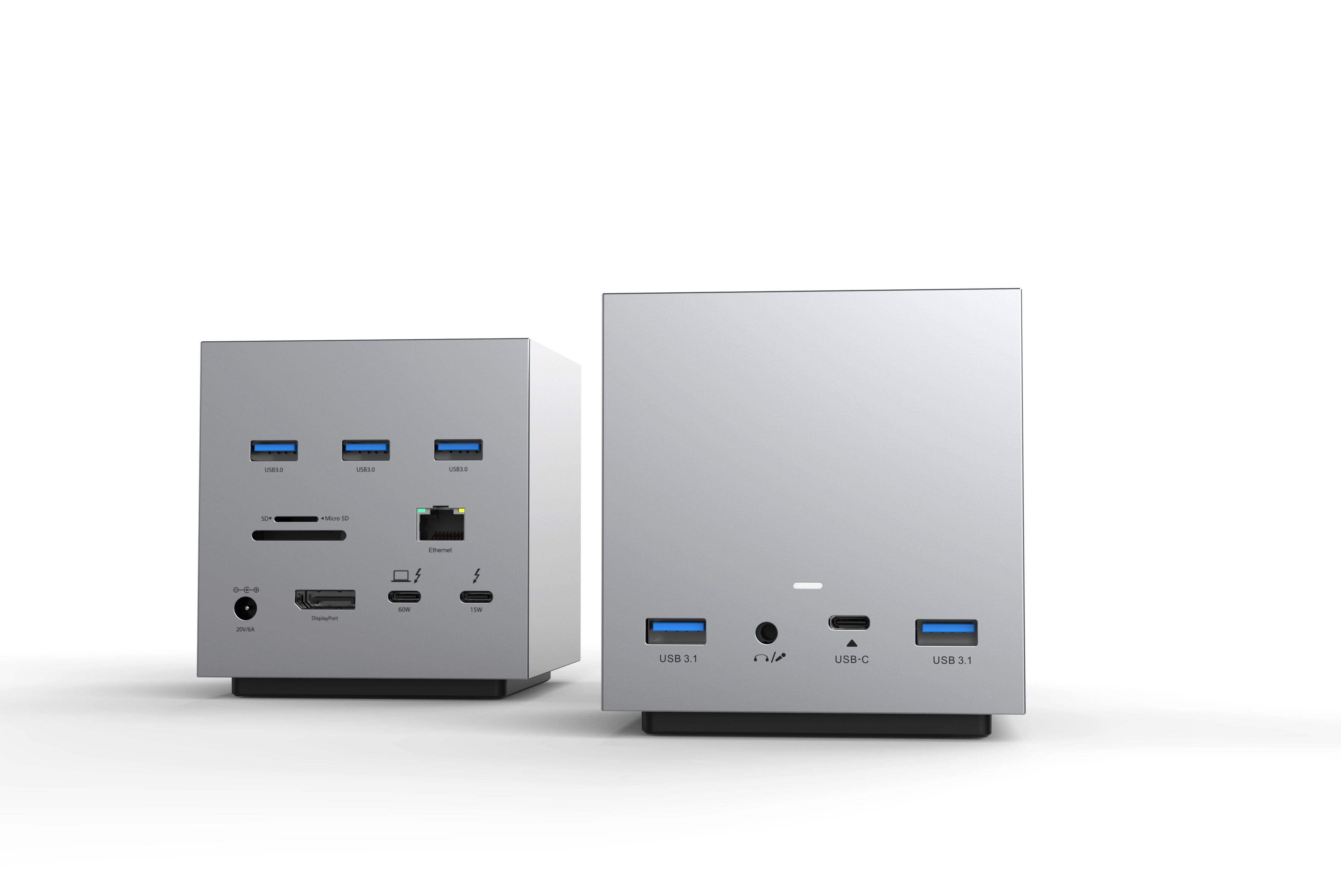

Thunderbolt™ 3 Docking (Model: DK0401)

  • Category: Adapter/Expansion, Dock
C-Smartlink Information Technology Co., Ltd
Operating System:
Operating System:
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
Thunderbolt Version:
Thunderbolt 3

This docking enables you to extend your TBT3/Multi-Function DisplayPort (MFDP) Type-C host to be multiple ports like video/USB/Ethernet/SD/Micro SD/audio ports which can be connected to displays,Thunderbolt 3 Docking can provide one ultra high definition video display (8K@60Hz) or two high definition video signal transmission(4K@60Hz) at same time.USB devices, Ethernet source,memory cards, headset,etc, offering an integrated solution for high quality office working and home entertainment. A 120W power adapter is provided to support the functioning of this product and meanwhile charge for the host with max 60W.
■Thunderbolt Port A support PD 60W charging(20V @3A).
■Thunderbolt Port B support PD 15W charging(5V@3A).
■DisplayPort: Support DP1.4 4K@60Hz resolution
■USB3.2 Gen 1 Type Ax2: Supports 5Gbps and Max 5V@0.9A.
■USB3.2 Gen 2 Type Ax2: Supports 10Gbps and Max 5V@0.9A.
■USB3.2 Gen 2 Type C x1: Supports 10Gbps and Max 5V@0.9A.
■LAN connect:Support Gigabit Ethernet (10M/100M/1000M).
■SD4.0 Card-Reader support SDXC card up to 2TB, 208MB/S
■One 3.5mm support microphone, another 3.5mm support earphone.
■DC Power max 20V/6A
