• Category: Dock
ORICO Technologies Co., LTD
Operating System:
Operating System:
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
Thunderbolt Version:
Thunderbolt 3

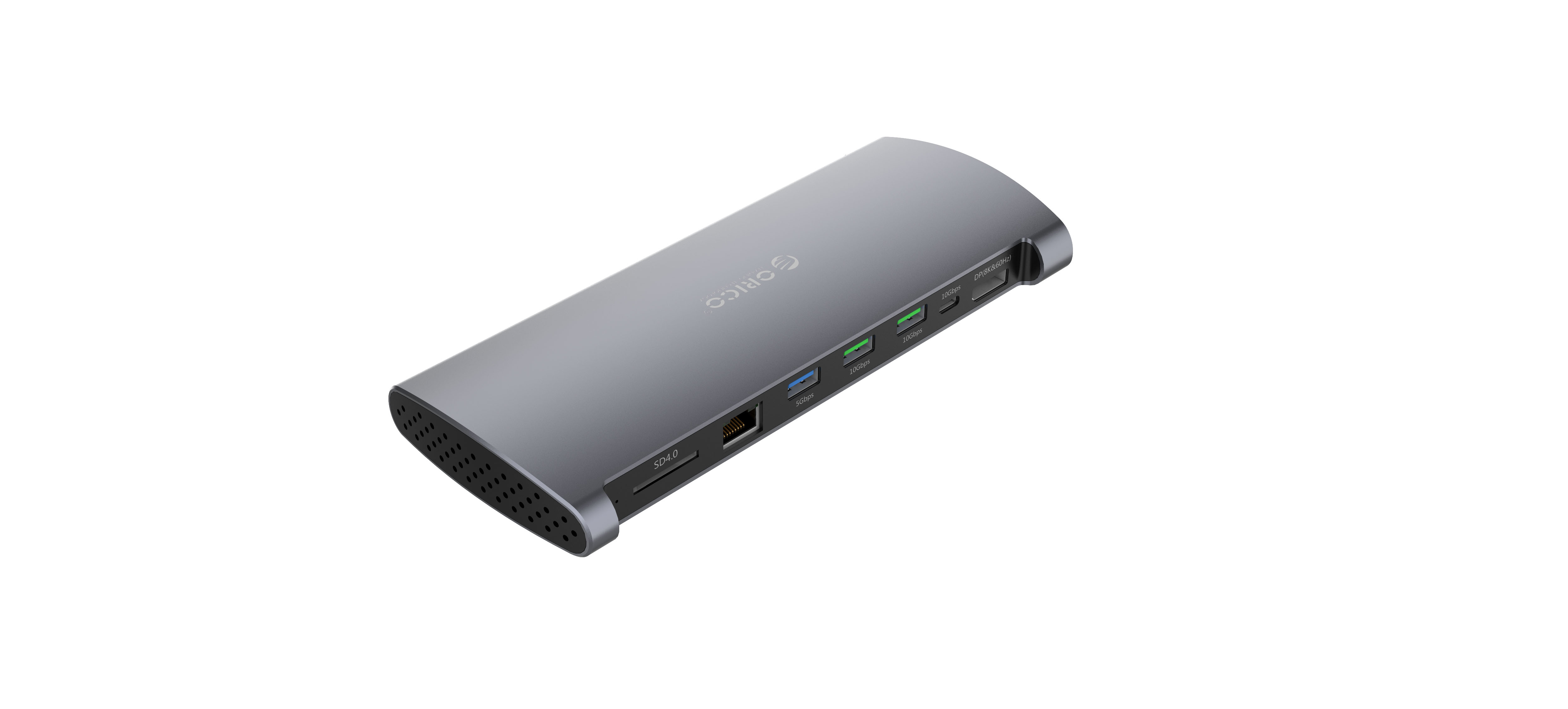

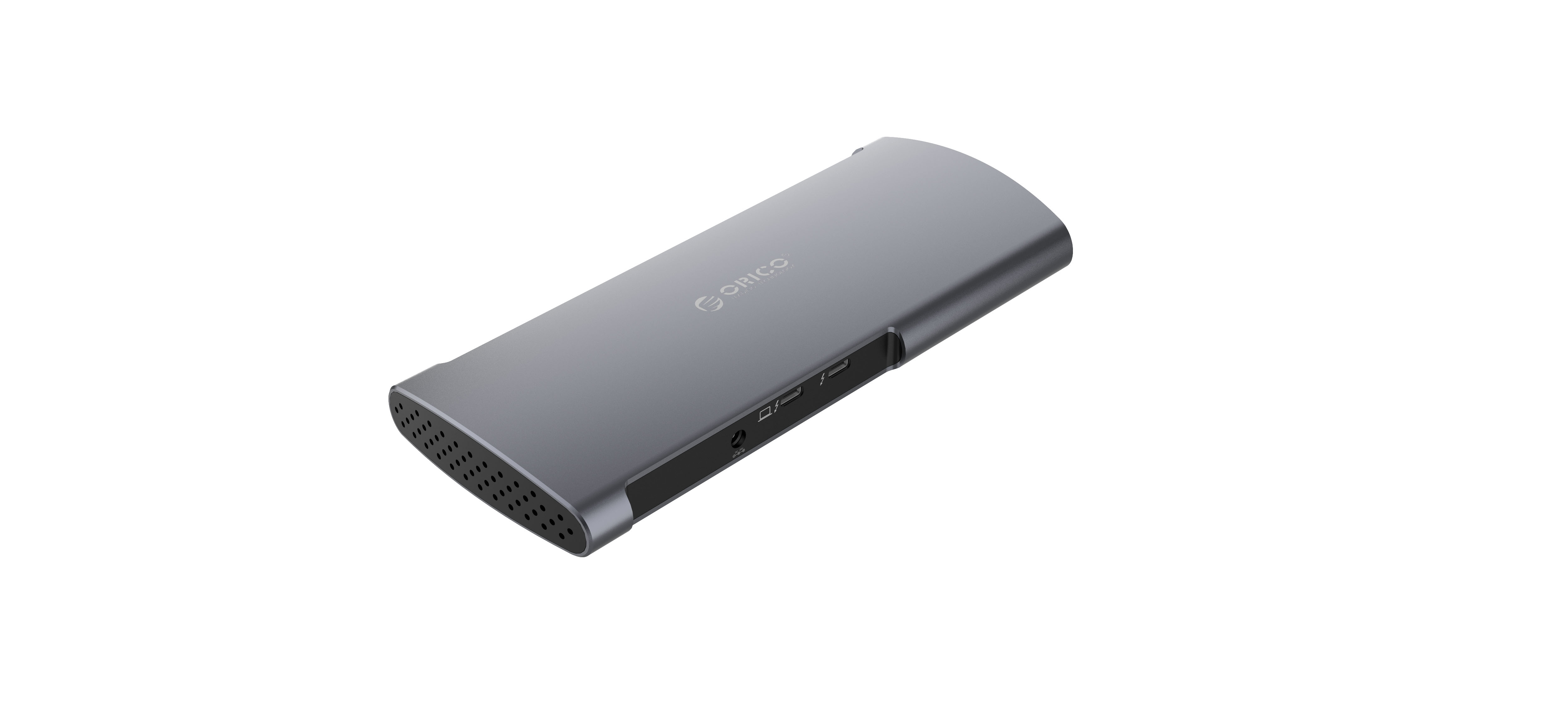

Through the Thunderbolt 3 interface, OIRCO TB3-S1 can extends Thunderbolt 3 interface*1, USB-C interface*1; USB-A interfaces*3; SD slot*1; RJ45 ethernet port*1; DP interface*1 for your PC. Able to meet your daily needs of audio, video and data transmission, applicable to Thunderbolt 3 interface notebook; in terms of appearance design, it adopts anodized aluminum alloy case with ABS heat-dissipation frame, delicate and stylish.
1.Defining high-performance expansion, RJ45 port, Thunderbolt 3 interface, USB3.0/3.1 data interface, SD4.0 slot, DP interface, data transmission, network access and charging protocol are all high-performance standards.
2.The Thunderbolt3 interface has a theoretical rate of 40 Gbps and can be cascaded downward to a 5-layer Thunderbolt 3 devices. Charge your laptop up to 60W. The Type-C interface supports a theoretical rate of 10 Gbps.
3.DP interface support up to 8K@60Hz resolution.
4.SD4.0 slot support high-speed transmission, theoretical rate reach to 5Gbps, support 2TB Max.
5.USB3.0 port support to 5Gbps transmission rate, USB3.1 port support to 10Gbps
6.RJ45 port support to 10/100/1000Mbps network bandwidth
7.External DC power, 24V==5A(120W), which can support the maximum power charging of 60W for the notebook to ensure the operation of devices.
8.Product adopts anodized aluminum alloy case with ABS frame.
9.Applicable to Thunderbolt 3 interface, compatible with operation systems of Windows 10, Mac OS.
