Key Features

• One Cable Peripheral Connection – Plug all your peripherals into the Echo dock’s 20 interfaces and connect your computer to the dock with the included Thunderbolt 5 cable.

• Two Thunderbolt 5 Ports for Peripherals – Support Thunderbolt 5, 4, and 3 devices, USB4 and USB 3 devices, plus displays.

• 10 Gigabit Ethernet Port – Link to an Ethernet network or NAS at 10 Gigabit speed! Also supports 5Gb, 2.5Gb, and 1Gb Ethernet link speeds.

• 10 Gbps USB-C Port (with 15W Charging) – Provides 15W of power for operation or charging; supports super-fast 10 Gbps USB NVMe SSDs at full speed.

• 10 Gbps USB-C Ports (with 7.5W Charging) – Provide 7.5W of power each for operation or charging; support 10 Gbps USB NVMe SSDs at full speed.

• 10 Gbps USB-A Ports (7.5W) – Provide 7.5W of power each; support 10 Gbps USB NVMe SSDs at full speed.

• Video Output (HDMI) Port – Connect an HDMI display directly, no adapter required.

• Video Output (DisplayPort) Port – Connect a DisplayPort display directly, no adapter required.

• Connect as Many as Three Displays via Thunderbolt – Depends on your computer; see product page Tech Specs for details.

• Supports 1080p, 1440p, 4K, 5K, 6K, and 8K Displays, @ up to 240Hz – Depends on your computer; see product page Tech Specs for details.

• Charges Your Laptop – Provides 140W through the included Thunderbolt 5 cable to power and charge your laptop.

• Hi-res Audio I/O Support – 3.5mm stereo headset jack, separate left/right channel RCA line out jacks deliver a clean signal to powered speakers or an amplifier, plus a 3.5mm microphone jack.

• Fast UHS-II SD and microSD Card Slots – Support 320 MB/s read speeds with UHS-II cards.

• Mac Compatible – Supports all M series Macs, and Intel Macs with Thunderbolt 3 ports.

• Windows Compatible – Supports Windows computers with Thunderbolt 5 or 4, or USB4 ports.

• Chromebook Compatible – Supports Chrombeook computers with Thunderbolt 5 or 4, or USB4 ports.

• M Series iPad Pro Compatible – Supports M series iPad Pro tablets.

—Thunderbolt 5 – Tomorrow’s Performance, Today—

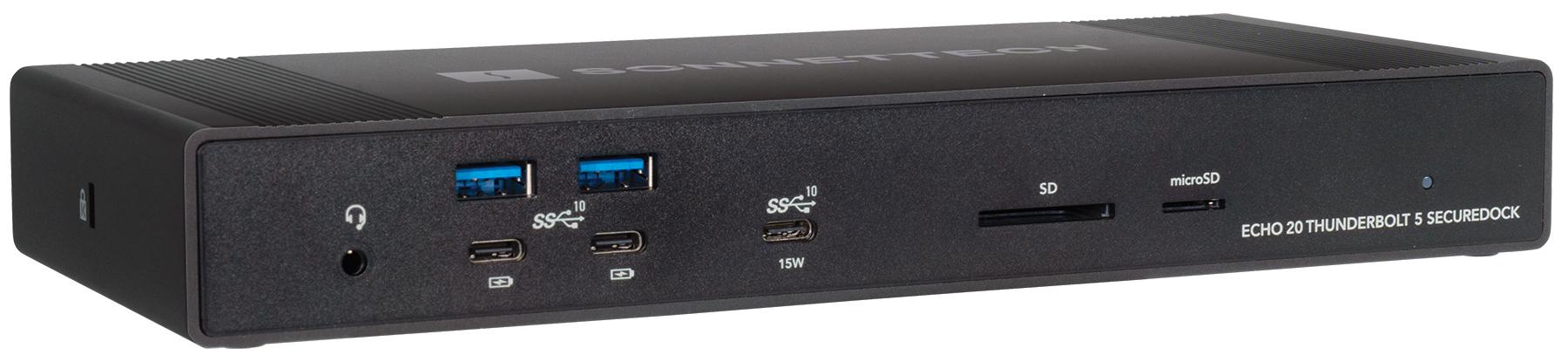

Introducing Echo 20 Thunderbolt 5 SecureDock — a powerful enterprise dock with built-in 10GbE networking designed for secure environments that prohibit onboard storage. Transform a single cable connection from your computer into two Thunderbolt 5 peripheral ports, one 10Gb Ethernet port, two video output ports, nine 10 Gbps USB 3 ports, and more! With 80 Gbps of bi-directional data speed — twice as fast as Thunderbolt 4 — and 120 Gbps for higher display bandwidth, SecureDock delivers the performance and connectivity modern enterprise workflows demand.

—Connect Your Peripherals and Power Your Laptop with One Thunderbolt 5 Cable—
Echo 20 Thunderbolt 5 SecureDock links plugged-in Thunderbolt devices, monitor(s), USB peripherals, powered speakers, and Ethernet cable to your computer with a single Thunderbolt 5 cable. Got a laptop? Keep its power adapter in your bag — the SecureDock will power it with 140W of charging power. When it’s time to leave, just disconnect the Thunderbolt cable, grab your computer, and go.

—Integrated HDMI and DP Display Support—
Echo 20 Thunderbolt 5 SecureDock features video output ports for HDMI and DisplayPort displays, enabling you to connect either an up to 8K @60Hz HDMI monitor or a 4K @144Hz DisplayPort monitor.

— Blazing-fast 10GBASE-T Access—
Echo 20 Thunderbolt 5 SecureDock supports demanding workflows with built-in 10 Gigabit Ethernet, enabling connection to 10GbE infrastructure using cost-effective Cat 6 or Cat 6A copper cabling (up to 55 or 100 meters, respectively) — eliminating the need for (and expense of) a separate adapter. The dock also supports 5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps link speeds when connected to switches or NAS devices without 10GbE support.

—High Resolution Audio Support—
Echo 20 Thunderbolt 5 SecureDock features a hi-res Audio Codec (coder-decoder) that supports the dock’s audio I/O jacks with high quality, lossless audio. And, with the SecureDock’s fanless, silent design, you’ll hear every detail.

—Dual Downstream Thunderbolt 5 Ports for Simple, Powerful Connectivity—
Echo 20 Thunderbolt 5 SecureDock incorporates three Thunderbolt 5 ports. One connects to and powers your computer — ideal for laptops with only one or two Thunderbolt ports, since it handles charging and data through a single connection. The other two support Thunderbolt 5, 4, and 3 devices — as well as USB4 and USB 3 peripherals — and each provides 15W for demanding bus-powered devices. If supported by your computer, you can also connect one, two, or even three additional displays.

—Powerful 10 Gbps USB-A and USB-C Ports—
Echo 20 Thunderbolt 5 SecureDock delivers powerful USB 3 connectivity with four 10 Gbps USB-A ports, and five 10 Gbps USB-C charging ports; all ports support super-fast 10 Gbps USB NVMe SSDs at full speed. The dock 20 doesn’t skimp on power either. Each port provides 7.5W (or 15W) to ensure that drives with higher peak power requirements mount and operate reliably. An added benefit of the USB-C ports is they support device charging even when the computer is off, asleep, or disconnected.

—Thunderbolt Certified for Mac, Windows, Chromebook, and iPad Pro—
Echo 20 Thunderbolt 5 SecureDock is certified for use with Apple M series Macs; Thunderbolt 3 Intel Macs; Thunderbolt 5 and most Thunderbolt 4 Windows computers; Thunderbolt 5 and 4 Chromebook computers; and M series iPad Pro.

—More Pixels: Drive 4K, 5K, 6K, and up to 8K Displays via Thunderbolt
Depending on your computer’s graphics capability and whether a DisplayPort or HDMI monitor is connected to one of the dock’s built-in display outputs, the Echo dock’s Thunderbolt ports can support as many as three displays — at 4K, 5K, or 6K resolution, and up to 8K.

—Charge It Up and Leave the Power Adapter In Your Backpack—
Connected to your laptop computer with the included Thunderbolt 5 cable, Echo 20 Thunderbolt 5 SecureDock provides up to 140W of power (Power Delivery), enabling it to power and charge your computer while connected, even when not in use, allowing you to leave your computer’s charger packed away.

—Fast UHS-II SD and microSD 4.0 Card Readers—
The included SD and microSD card slots are compatible with SD, SDHC, and SDXC; and microSD, microSDHC, and microSDXC memory cards, respectively, and support 320 MB/s read speeds with UHS-II SDXC and microSDXC cards to quickly offload images and video files.

—Connect It Securely: Thunderbolt 5 Cable and ThunderLok Included—
The included Thunderbolt cable delivers Thunderbolt 5’s full bandwidth and power delivery performance, and is compatible with Thunderbolt 5, 4, and 3, and USB4 computers. A provided ThunderLok connector lock helps prevent accidental disconnections from the SecureDock.

—Secure it Physically: Kensington Lock Ready—
Secure the Echo dock with a Kensington lock (sold separately). The dock is compatible with Standard, MicroSaver, and MicroSaver 2 locks.
