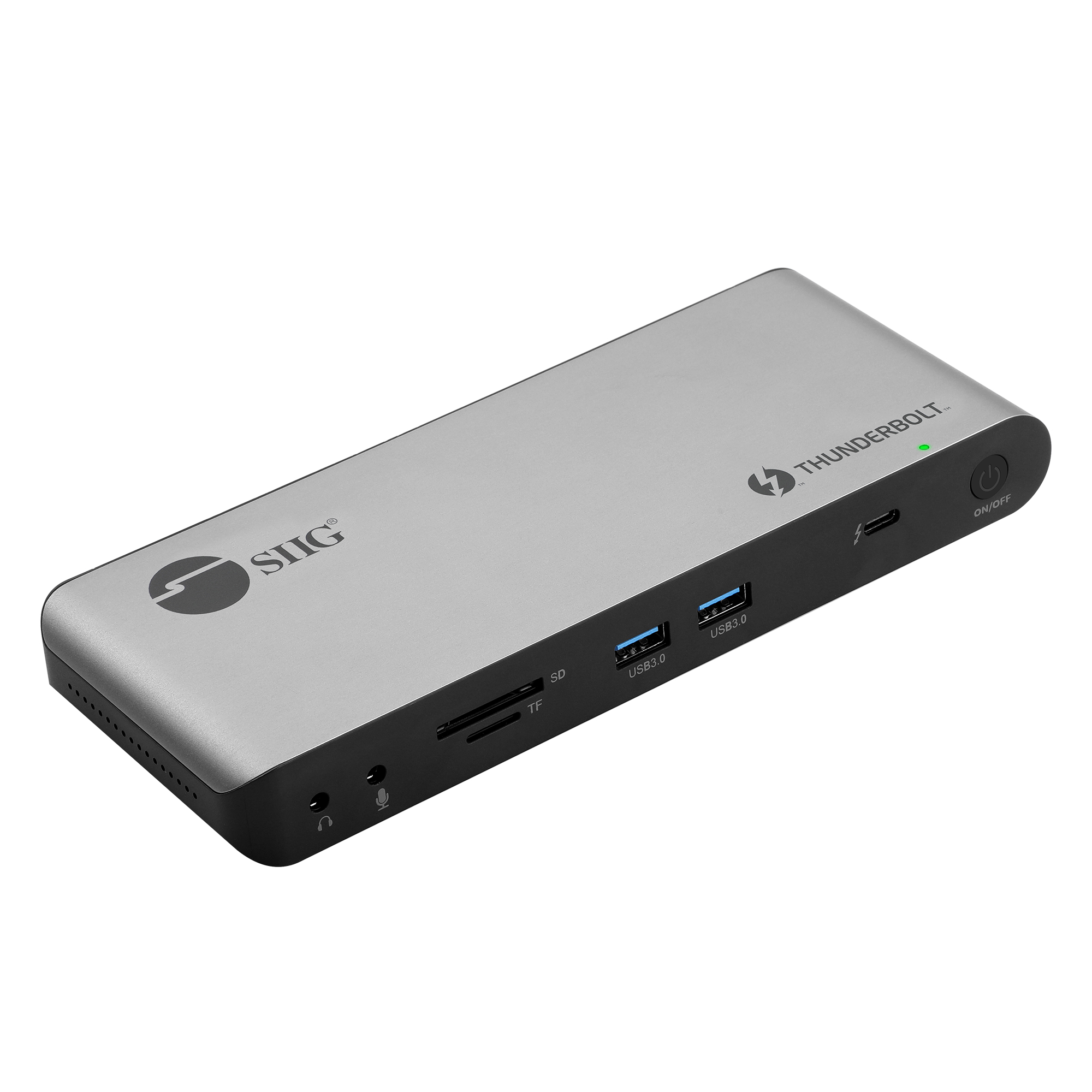

Quad Display Thunderbolt 4 Docking Station & PD

  • Category: Audio/Video, Dock
SIIG, Inc.
Operating System:
Operating System:
Operating System:
Chrome OS
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
Thunderbolt Version:
Thunderbolt 4

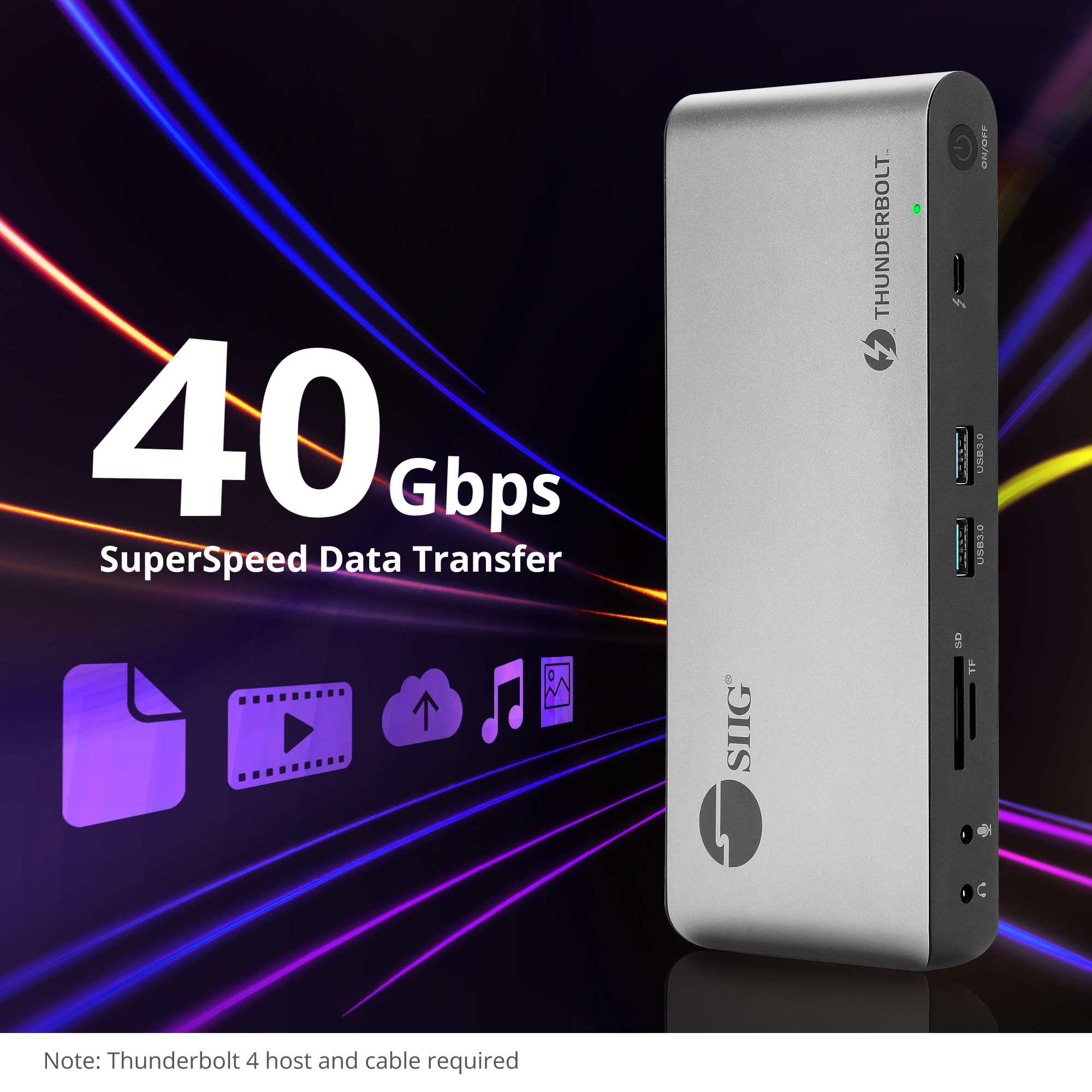

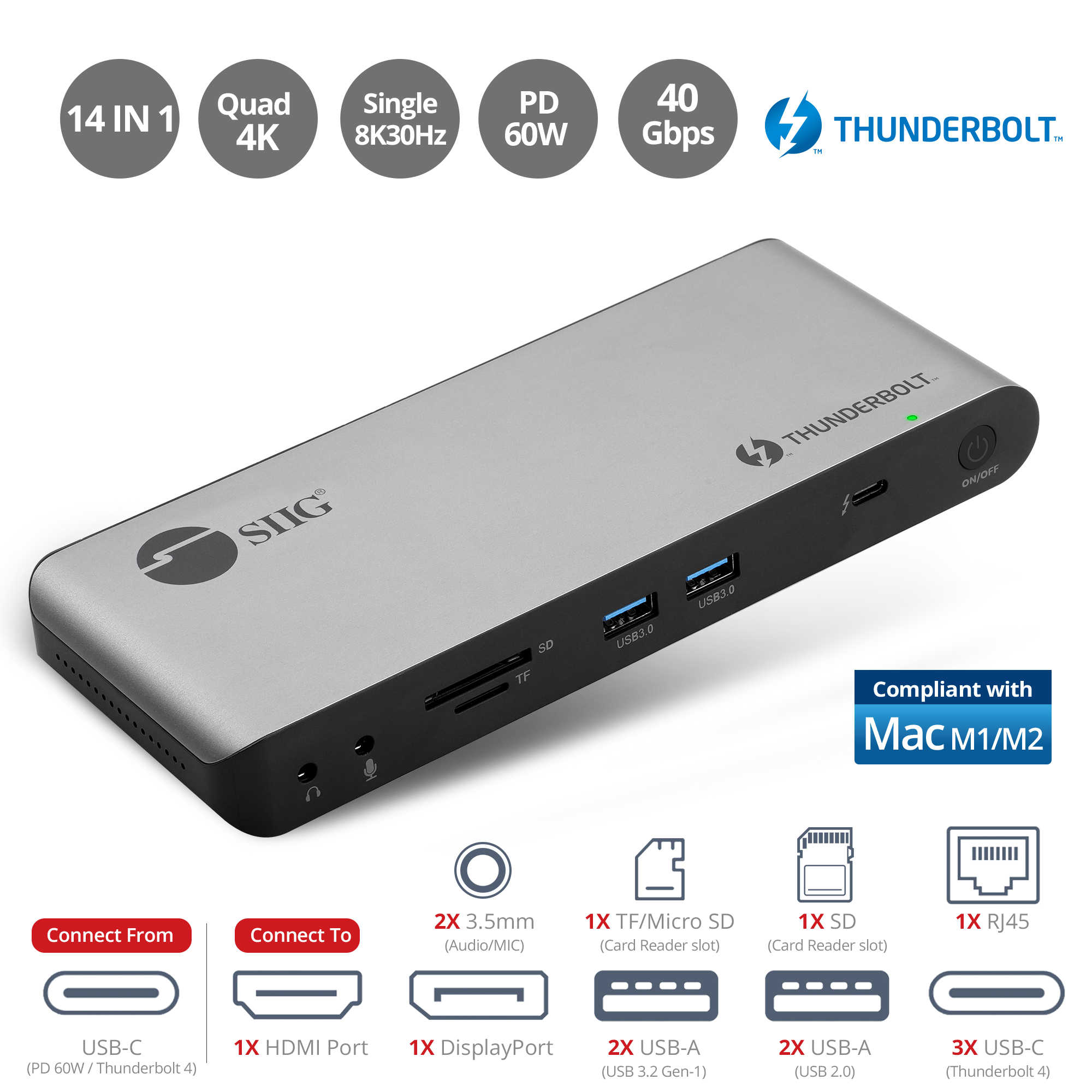

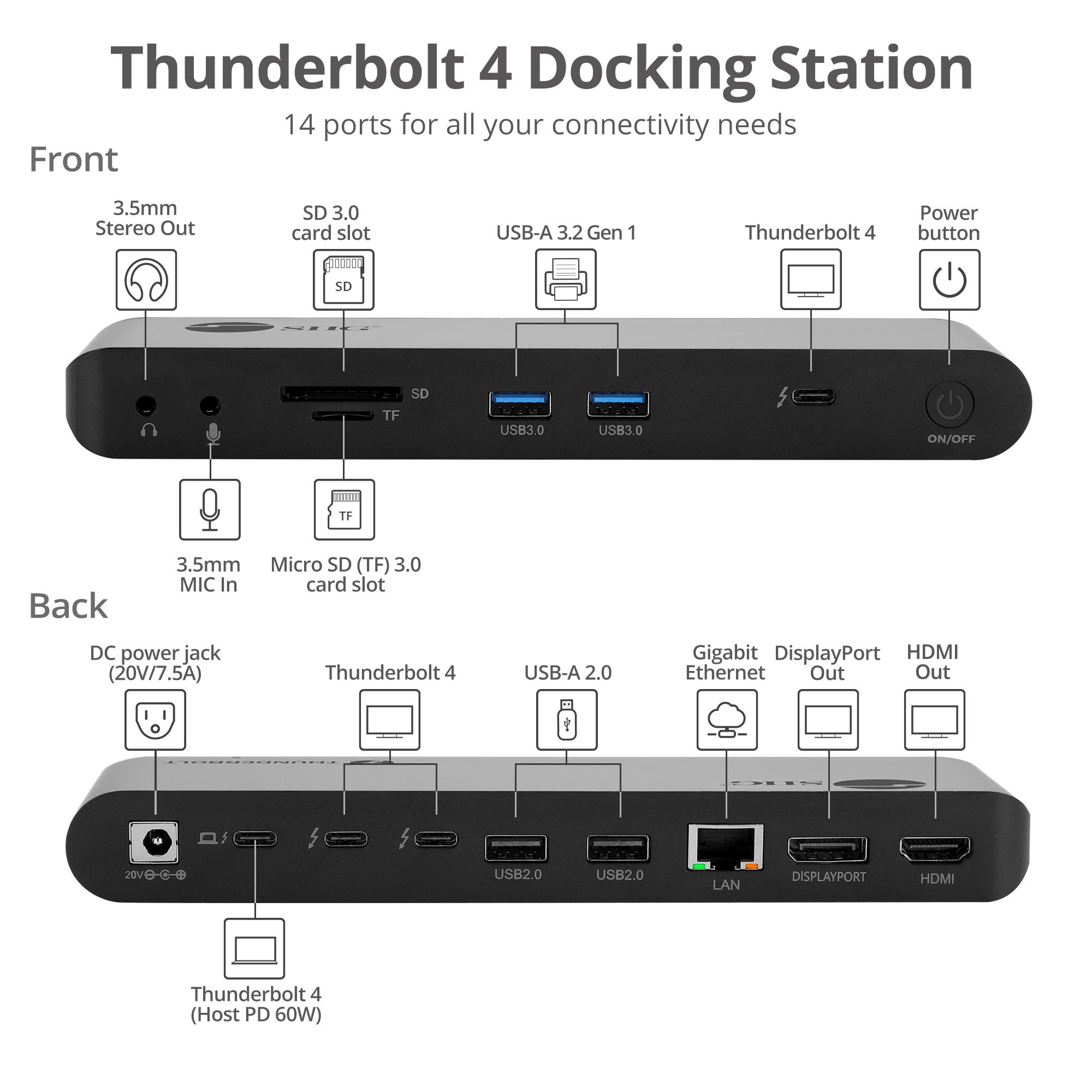

- Connect a Thunderbolt 4 port (USB-C compatible) into multiple connectivity options such as 3 Thunderbolt 4 USB-C, 2 USB 3.2 Gen 1 Type-A, 2 USB 2.0 Type-A, DisplayPort & HDMI Video ports, Gigabit Ethernet port, SD/TF Card Reader, 3.5mm Audio and MIC port. Supports up to 8K@30Hz or 4K@144Hz resolution and 40Gbps Data Transfer

- Supports single 8K@30Hz / 4K@144Hz Ultra HD video output via Thunderbolt 4 USB-C port, or dual 4K @60Hz displays outputs through two Thunderbolt 4 port or DisplayPort and HDMI port.

- Compatible with the latest Thunderbolt 4 equipped laptops. Enjoy 8K 30Hz high resolution graphics and 40Gbps data transfer speed with New Generation Goshen Ridge Intel IC which compatible with USB Type-C System. NOTE: The device performance will be limited when you are using USB Type-C system.

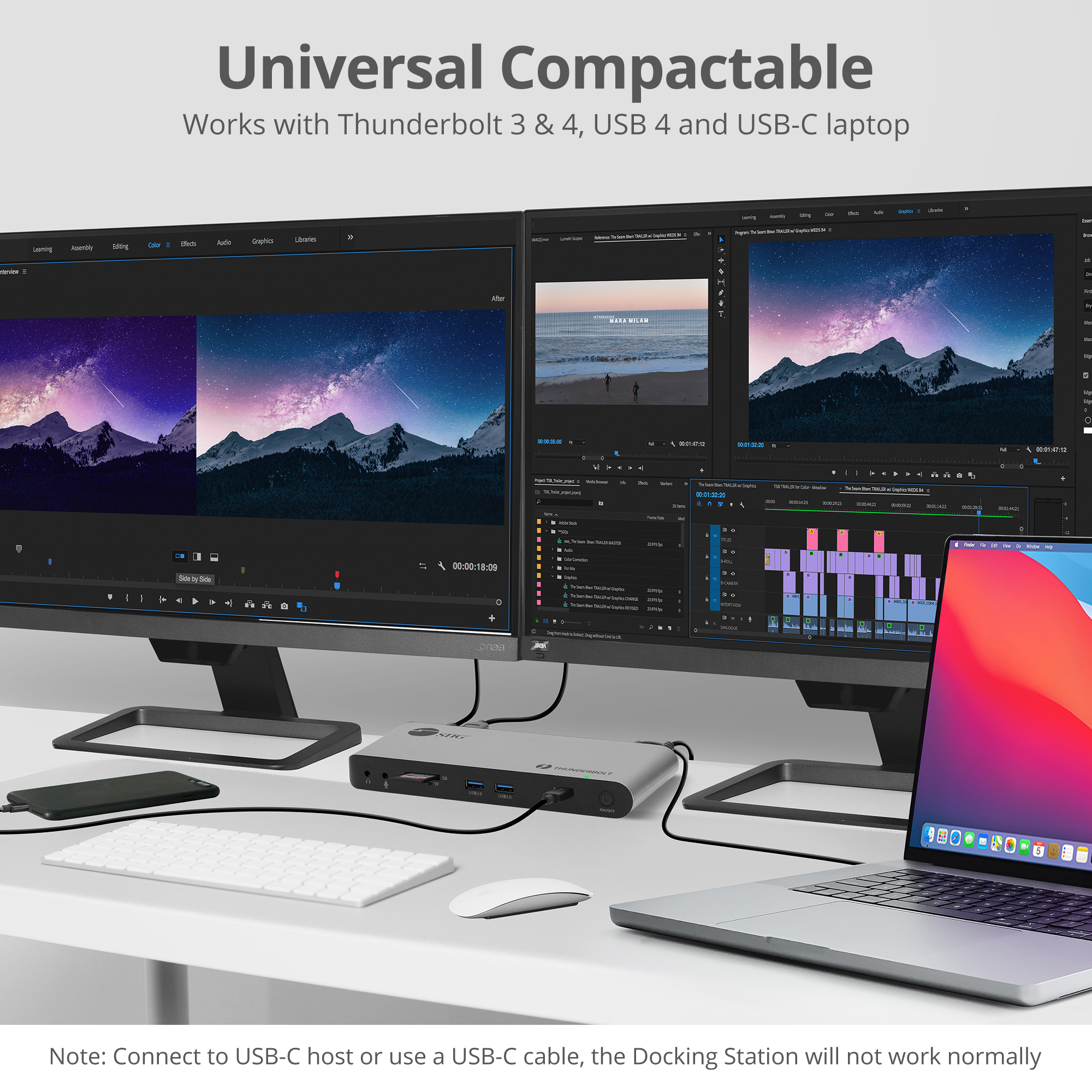

- Adds multiple devices to your Thunderbolt 4 enabled MacBook Pro or Windows PC to increase efficiency

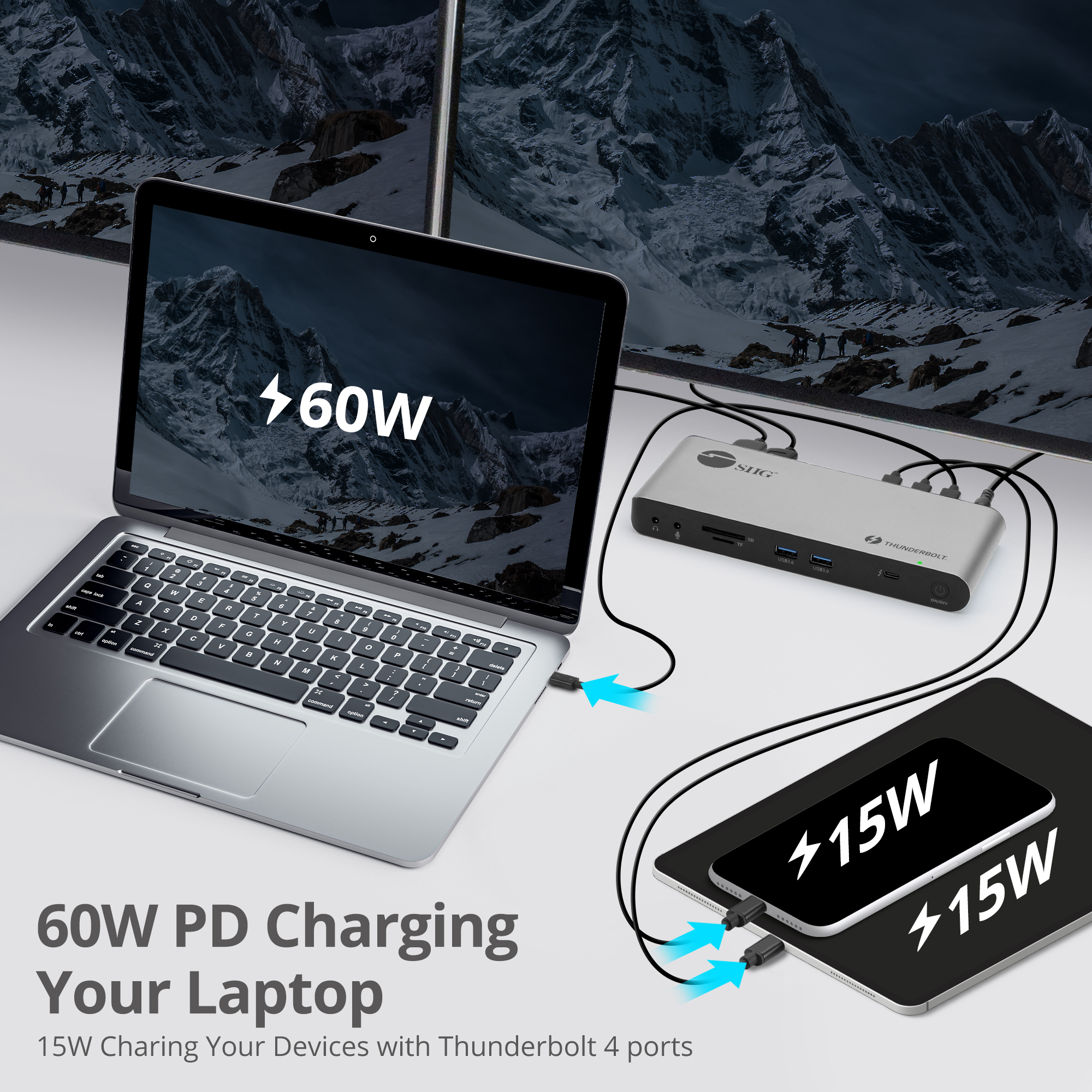

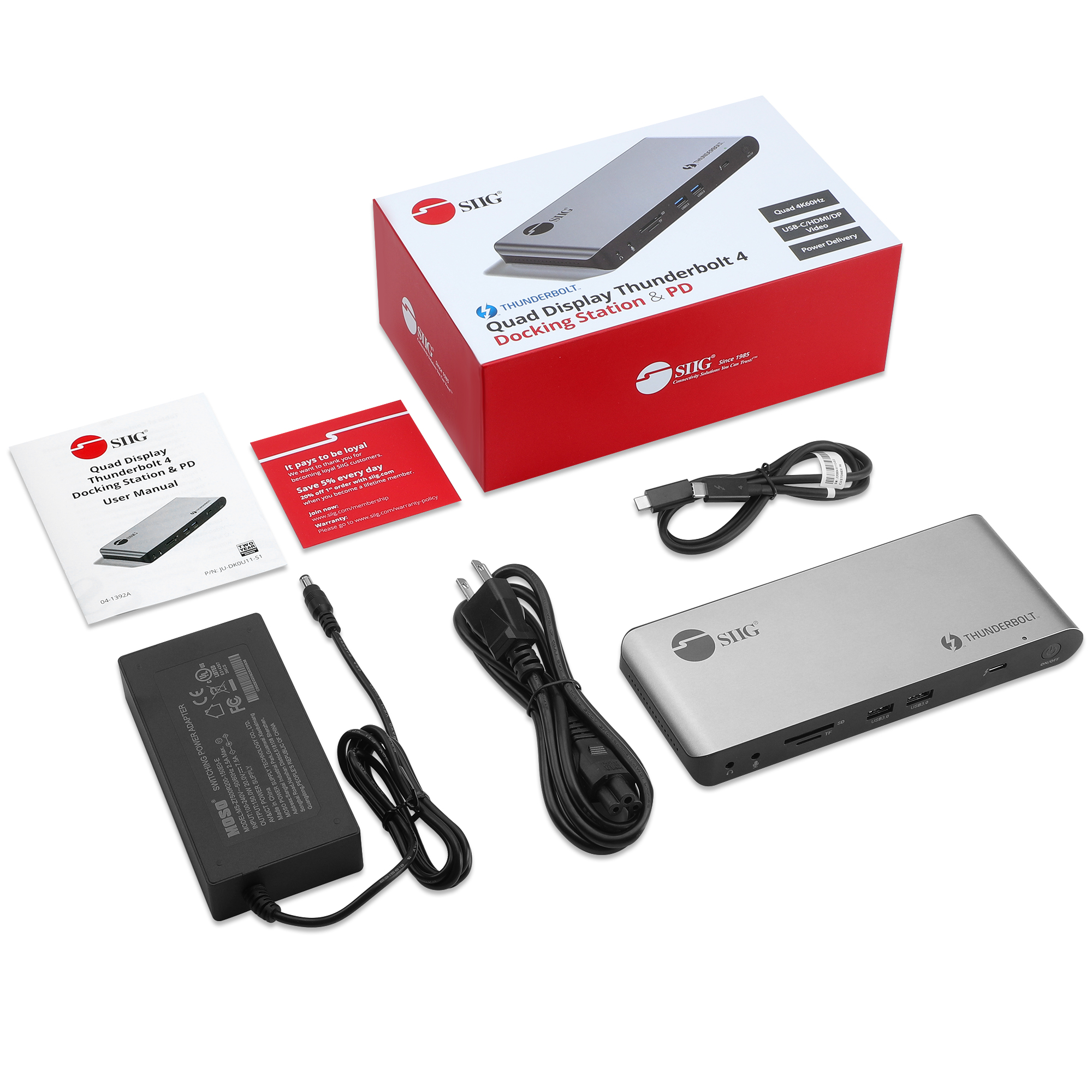

- Includes 150W power adapter, supports PD charging up to 60W to charge your laptop and other 90W provide enough power for connected peripherals, such as external SSD, flash drive, smart phone or any other USB devices. (2x 5V/1.5A Fast Charging Port for your devices)

Video Resolution

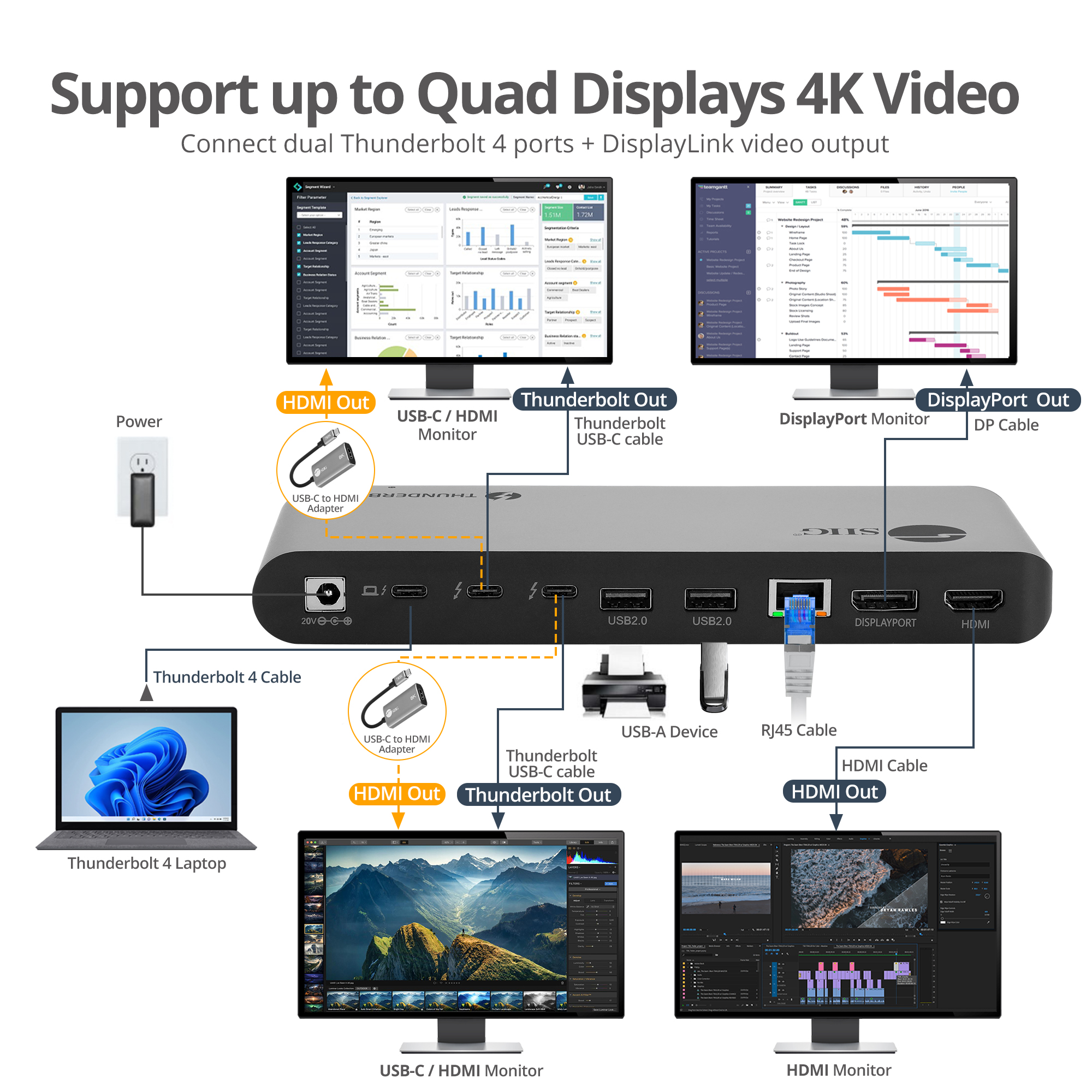

- Quad view: up to 4K (3840x2160@60Hz) (2xTBT4+1xDP+1xHDMI)
- Triple view: up to 1x8K (7680x4320@30Hz) (TBT4)+2x4K (3840x2160@60Hz) (DP / HDMI)
- Dual vide: up to 1x 8K (7680x4320@30Hz) (TBT4)+1x4K (3840x2160@60Hz) (DP or HDMI)

- USB 3.2 Gen 1 Type-A x2, up to 5Gbps data transfer rate and 5V/0.9A power charging
- USB 2.0 Type-A x2, up to 480Mbps data transfer rate and 5V/1.5A fast charging
- Fast charging port

- 5.1 channel surround sound from HDMI/DisplayPort output ports
- 2 channel stereo audio from 3.5mm audio port and microphone port

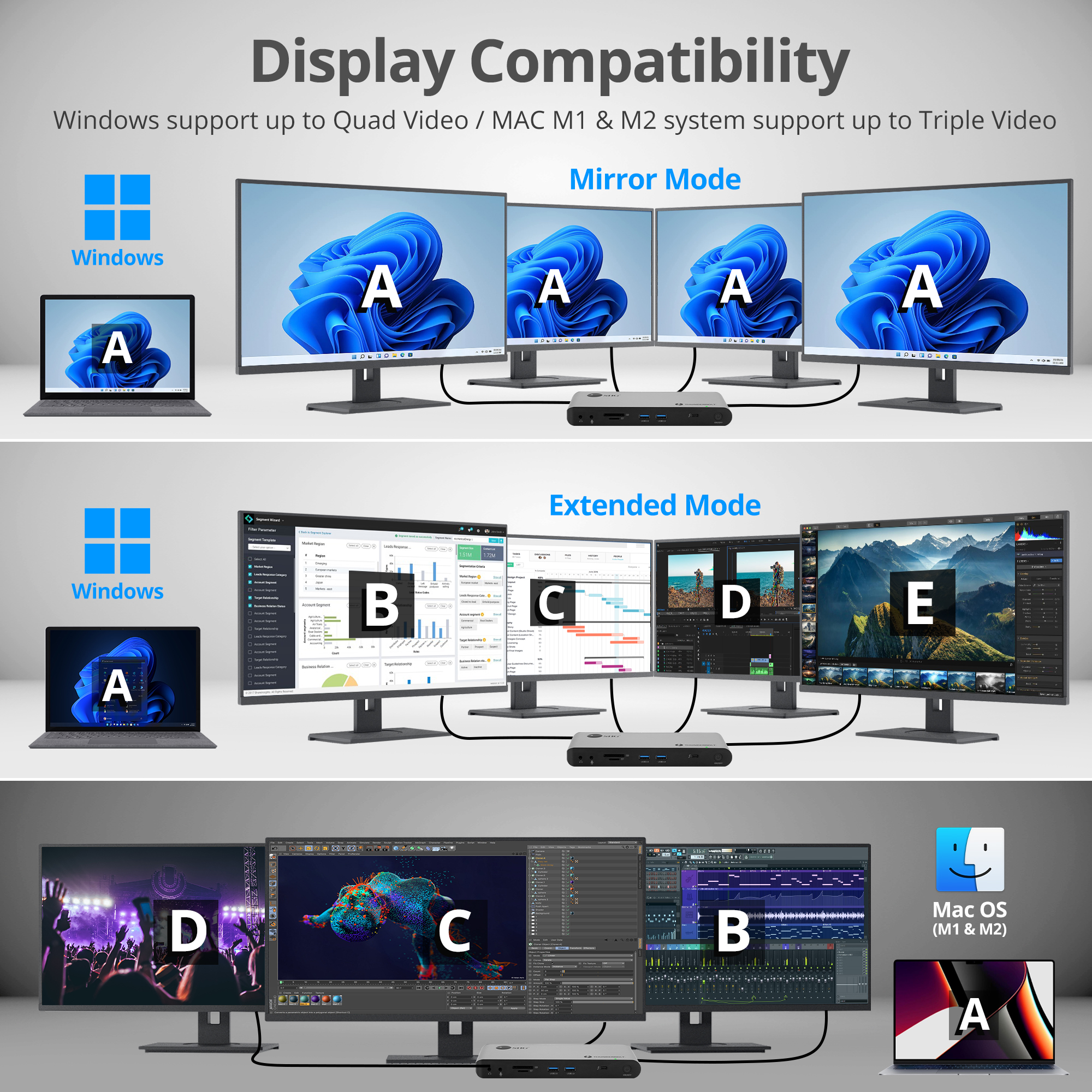

Display mode
- Mirror and Extended mode

Memory card slot
- SD 3.0, UHS-I, up to 104MB/s
- Micro SD (TF), UHS-I, up to 104MB/s

- USB Power Delivery 3.0, provides up to 60W PD via Thunderbolt 4 (Host) for laptop charging
- Power adapter Input: AC 100-240V / 50-60Hz, Output: DC 20V/7.5A, UL listed: E314357/Level: VI

- Data transfer rate up to 1G (1000Mbps), backward compatible with 10/100Mbps
- Supports IEEE 802.3x Full Duplex flow operation, crossover detection, and auto-correction
- Enterprise features: Wake on LAN and PXE boot
*Note: Mac address pass-through not supported
- Compatible with IEEE 802.3, 802.3u

Product Info
- Dimensions: 7.80” (L) x 1.14” (H) x 3.27” (W)
- Weight: 0.96 lbs
- Color: Space gray/black
- Housing material: Aluminum with plastic

OS Compatibility
- Windows® 11
- MacOS® 10.12 or newer (Compatible with M1 & M2 system)

- FCC, CE, RoHS 2.0, REACH
- Warranty: 2 years limited
- Country of origin: China
