ProDock TB4 (TUCN8121)

  • Category: Dock
Kingtron Electronics Technology Co.,Ltd
Operating System:
MacOS
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
4
Thunderbolt Version:
Thunderbolt 4

With 11 versatile ports, Brydge ProDock provides the power, speed and port expansion to instantly transform the MacBook Pro into a powerhouse desktop.
Featuring 3 Thunderbolt™ 4 ports, 3 USB-A Ports, 1 USB-C port, Gigabit Ethernet, 3.5mm Audio Out & 1 x SD Card Reader , the Brydge ProDock is the ultimate desktop accessory.
With the Brydge ProDock, there is no need to reach for countless cables to connect to your device. Simply insert your MacBook into a vertical stand and you’re done. Instant connectivity meets instant productivity.

Up to 90 Watts of Power
Single 4K Display at 60Hz
Dual 4K Display at 60Hz (14" & 16" MacBook Only)
Dual 5K Studio / 6K Pro XDR Displays (14" & 16" MacBook Only)
Thunderbolt™ 4 Speeds

Compatibility
MacBook Pro 2021 (16-inch and 14-inch)
M2 MacBook Air 2022

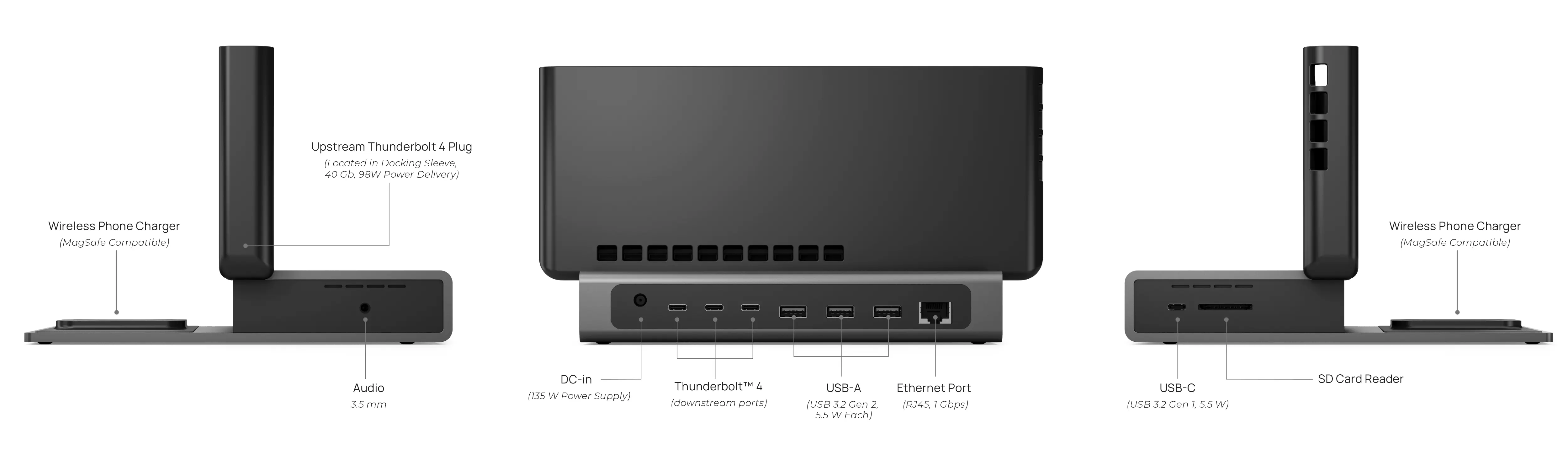

Port
1 x Integrated Upstream Thunderbolt 4™ Port (90W Power Delivery)
3 x Downstream Thunderbolt 4 Ports
1 x USB-C (USB 3.2 Gen 1, 5.5 W)
3 x USB-A (USB 3.2 Gen 2, 5.5 W Each)
1 x Ethernet Port ( 1 Gbps)
1 x 3.5 mm Audio
1 x SD Card Reader

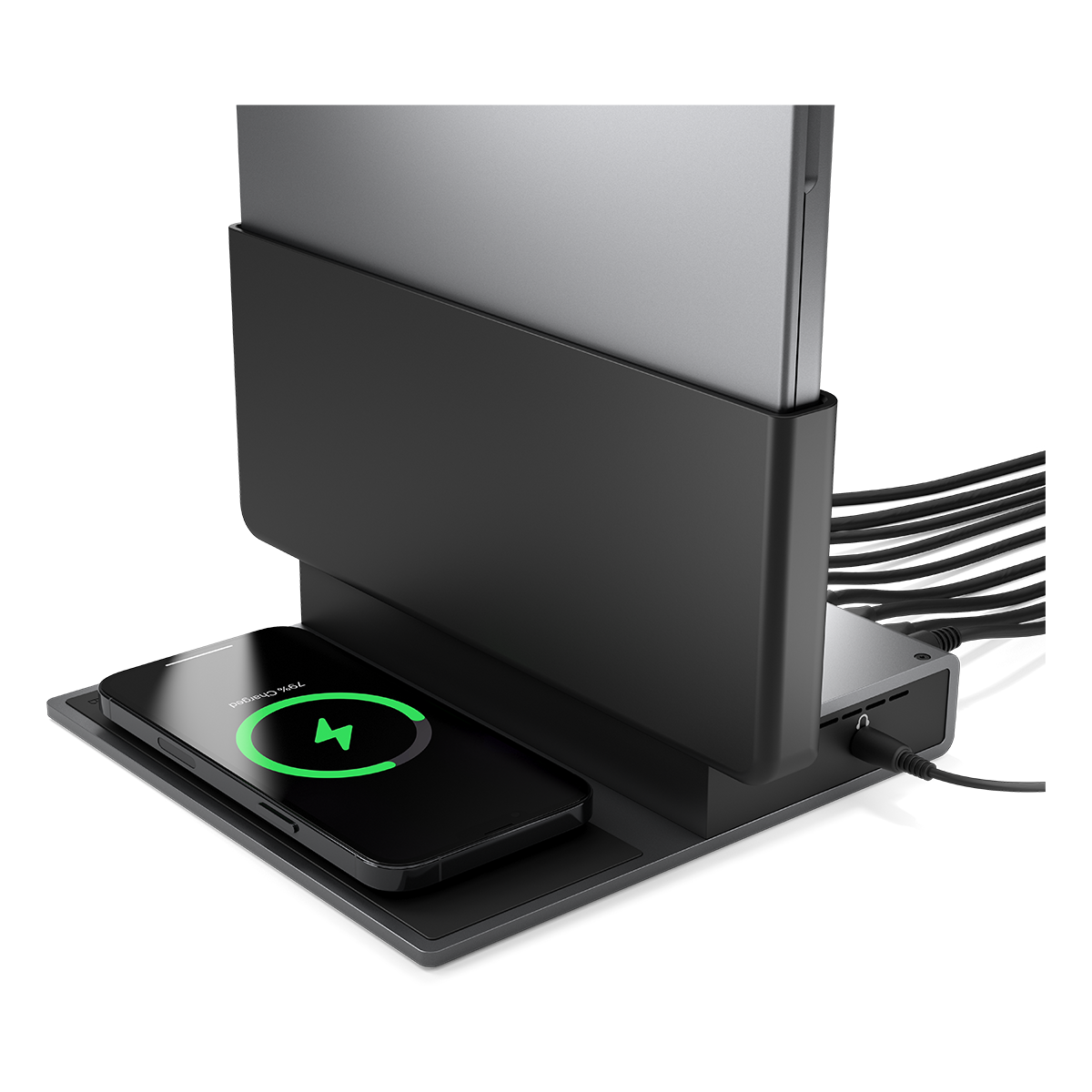

1 x Wireless Phone Charger (MagSafe Compatible)
1 x DC-in (135 W Power Supply)
