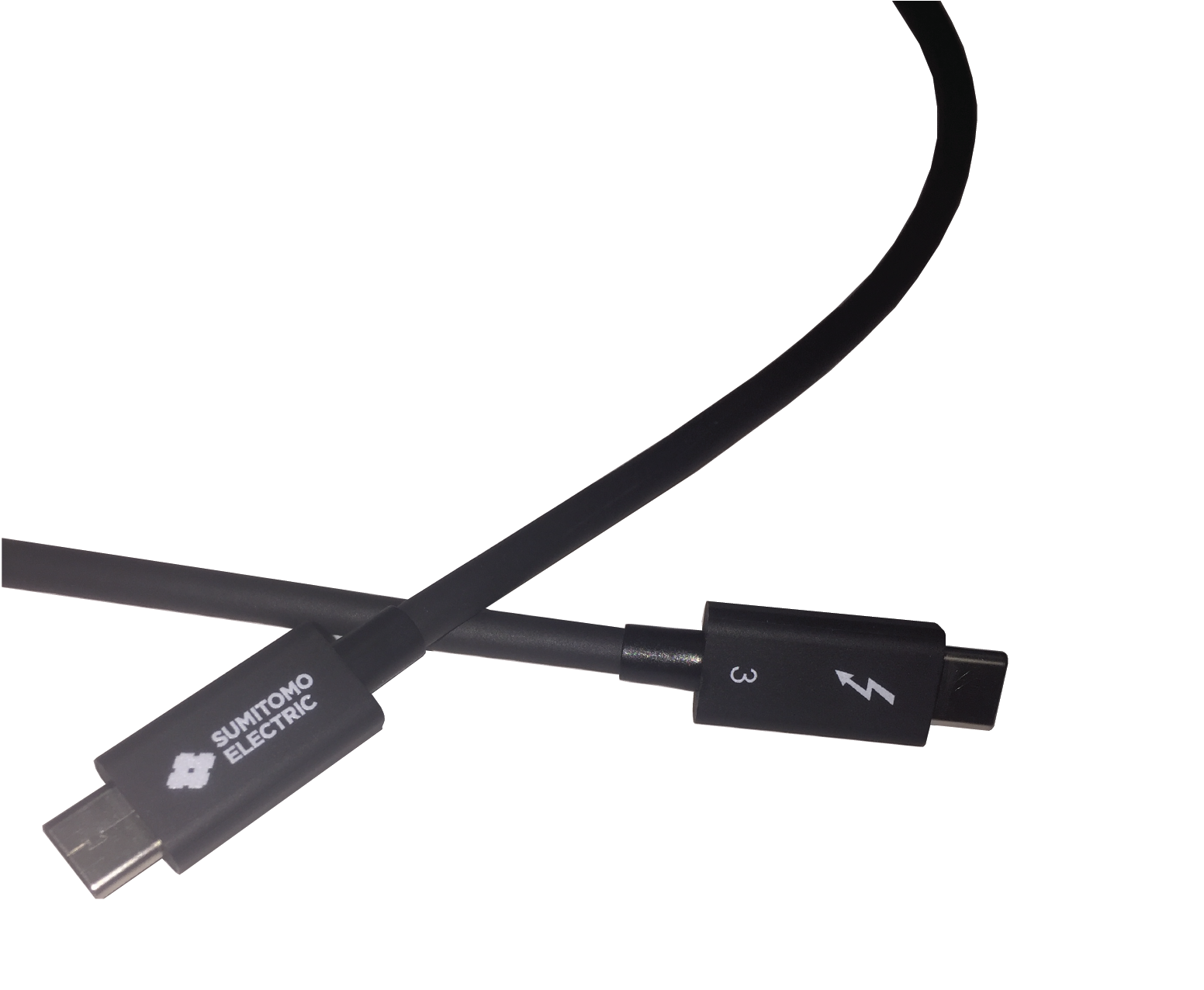

Passive 0.8 meter Thunderbolt™3 40Gbps from Sumitomo

  • Category: Cable
Sumitomo Electric Industies, Ltd.
Operating System:
Operating System:
Self or Bus Powered:
Bus Powered
Thunderbolt Version:
Thunderbolt 3

Sumitomo has launched a new full feature 0.8 meter passive Thunderbolt cable supporting 40Gb/s speeds.
Our cable is known for its flexibility, durability, and soft touch. Our Intel certified cables are customizable, so please contact us with your requirements.


• Thunderbolt,™ USB, DisplayPort, and power on USB-C
• USB-C connector and cables (small, reversible)
• 40 Gb/s Thunderbolt™ 3 – double the speed of Thunderbolt™ 2
• Bi-directional, dual-protocol (PCI Express* and DisplayPort*)
• Four lanes of PCI Express Gen 3
• Eight lanes of DisplayPort 1.2 (HBR2 and MST) – supports two 4K displays (4096 x 2160 30bpp @ 60 Hz)
• USB 3.1 Gen 2 (10 Gb/s) – compatible with existing USB devices and cables
• DisplayPort 1.2 – compatible with existing DisplayPort displays, devices, and cables
• Connect DVI, HDMI, and VGA displays via adapters
• Power (based on USB 3.1 power delivery)
• Up to 100W system charging
• 15W to bus-powered devices
• Daisy chaining (up to six devices)
• Lowest latency for PCI Express audio
• 4.6 mm outer diameter
