OWC Thunderbolt 3 Dual HDMI Adapter

  • Category: Audio/Video
Other World Computing, Inc.
Operating System:
Operating System:
Self or Bus Powered:
Bus Powered
Thunderbolt Version:
Thunderbolt 3

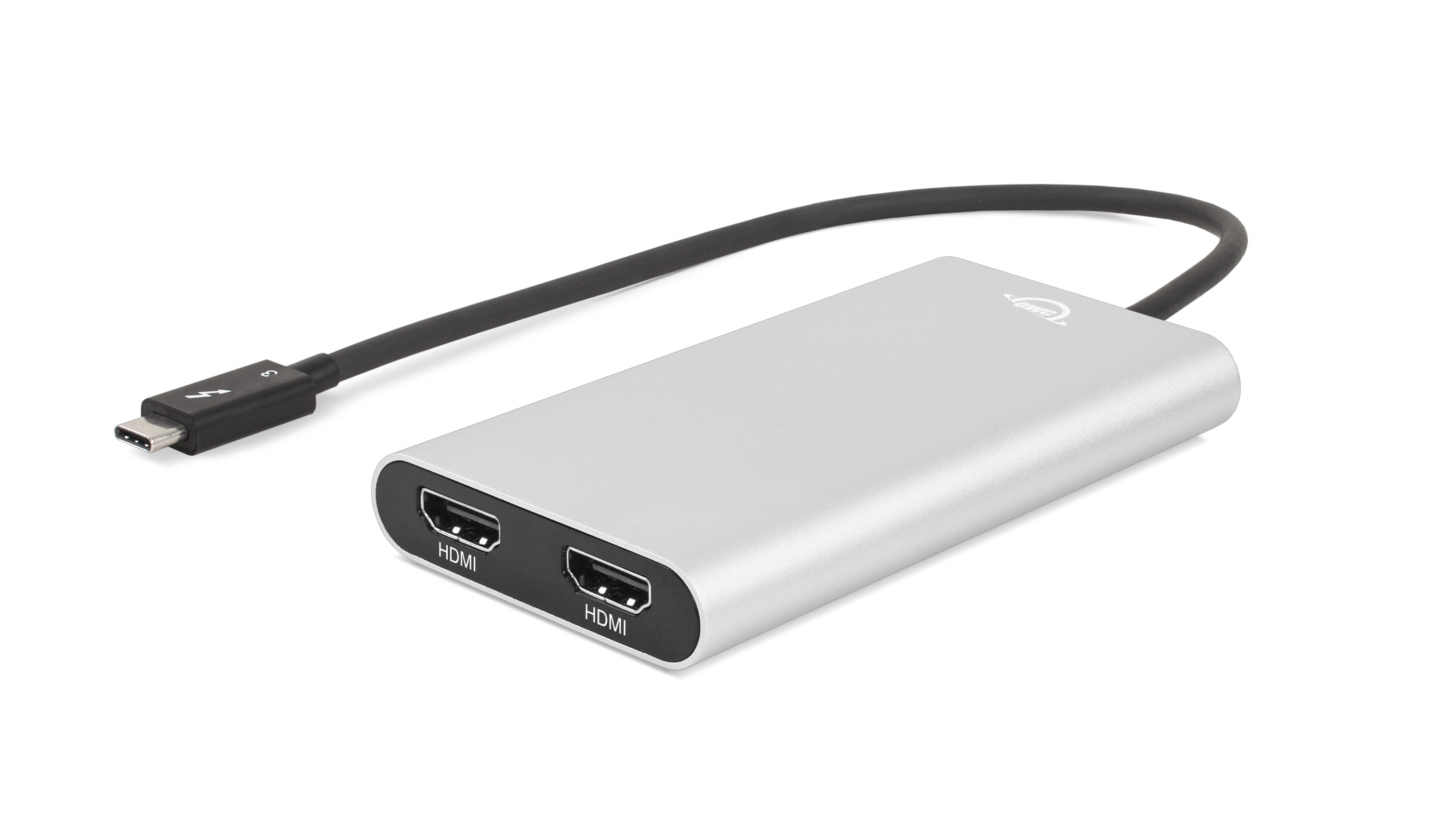

Thunderbolt 3 to dual HDMI adapter works with both Windows and Mac computers.
It is bus powered, with a rugged aluminum body, compact and portable with integrated audio support.
Connect two HDMI monitors up to 4K 3840 x 2160 @ 60Hz. Thunderbolt 3 technology won't drain system resources and won't impact system performance, unlike USB video solution.
- Input: 1 x Thunderbolt 3 (USB-C 24-pin) male

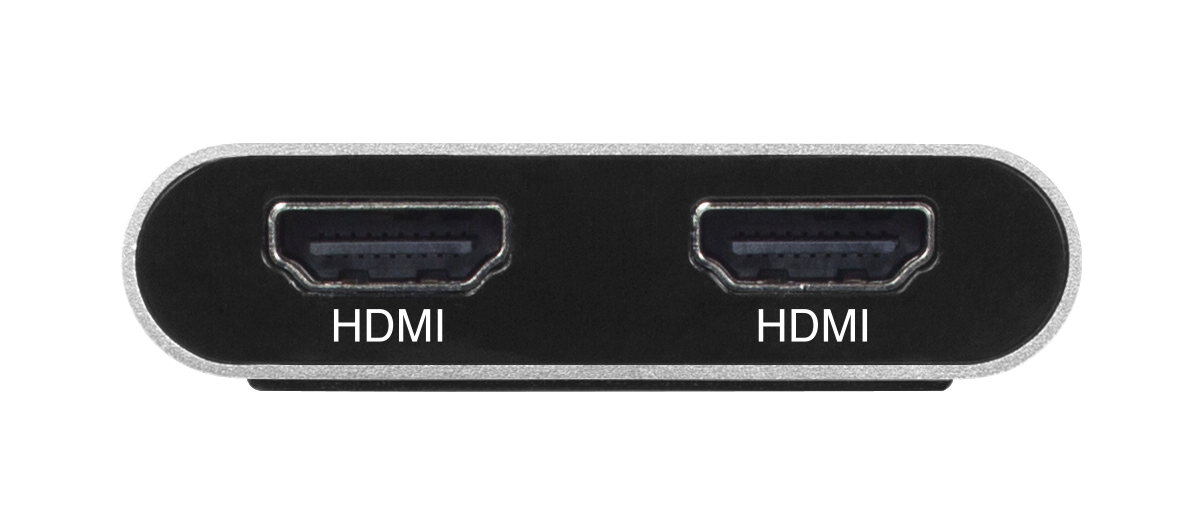

- Output: 2 x HDMI female
Power Supply: bus-powered
Data Rate: Up to 40 Gbps
Software Requirements
-macOS 10.12 or later
-Windows 10 or later
Driver not required for macOS
Driver not required for Windows
Hardware Requirements
-Mac or Windows PC with native Thunderbolt 3 port
Interface (chipset)
-(1) Thunderbolt 3 (Alpine Ridge JHL6540)
-(2) HDMI 2.0 (Parade PS176)
Maximum Resolution
-(2 Displays) 3840 x 2160 @ 60Hz
Environmental (Operating)
Temperature: (°F) 32° — 107°
Temperature: (°C) 0° — 42°
Height: 16 mm (0.6 in)
Width: 59 mm (2.3 in)
Length: 113 mm (4.5 in)
Cable Length: 260 mm (10.2 in)
Weight: 96 g (3.4 oz)
