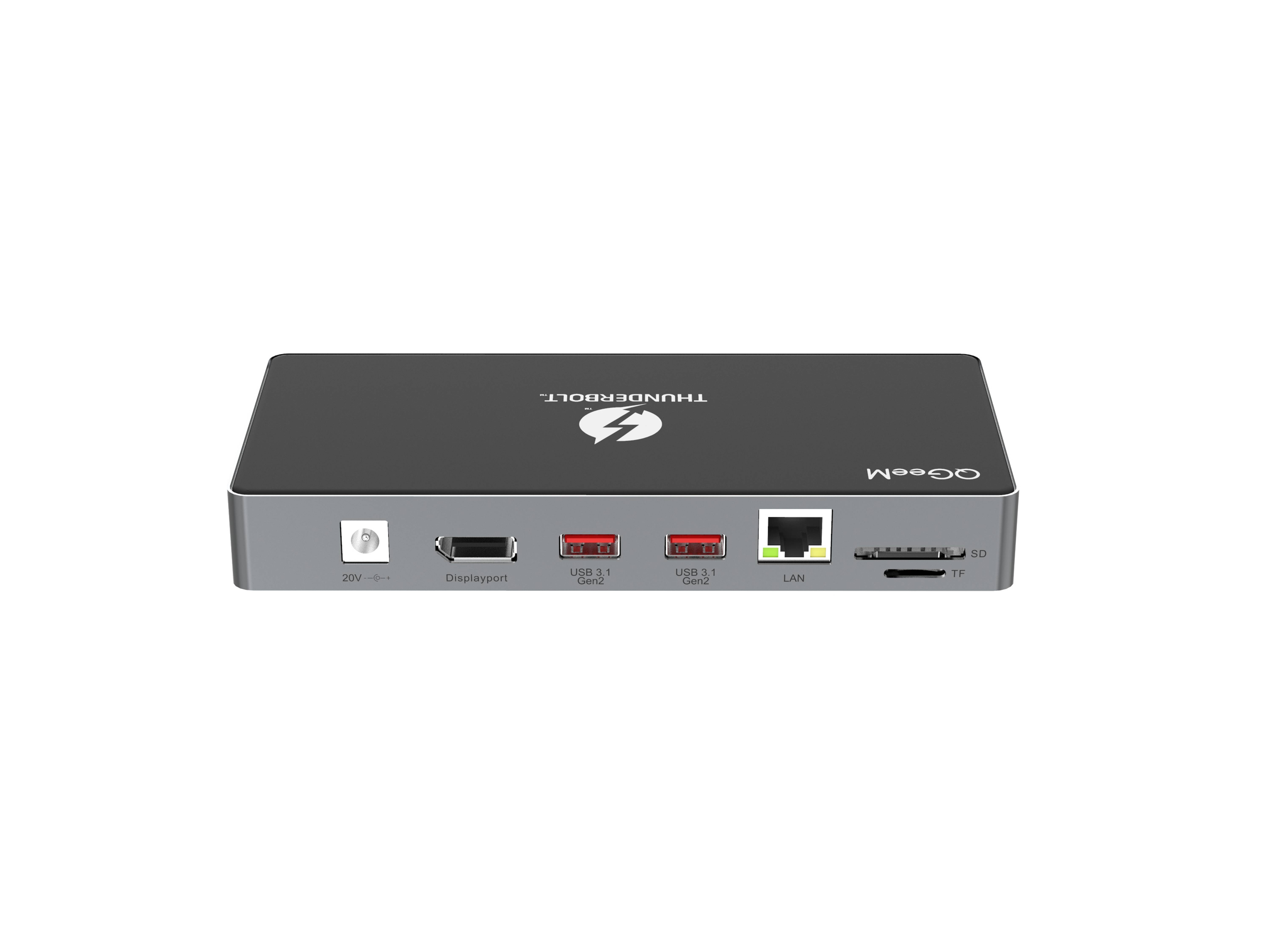

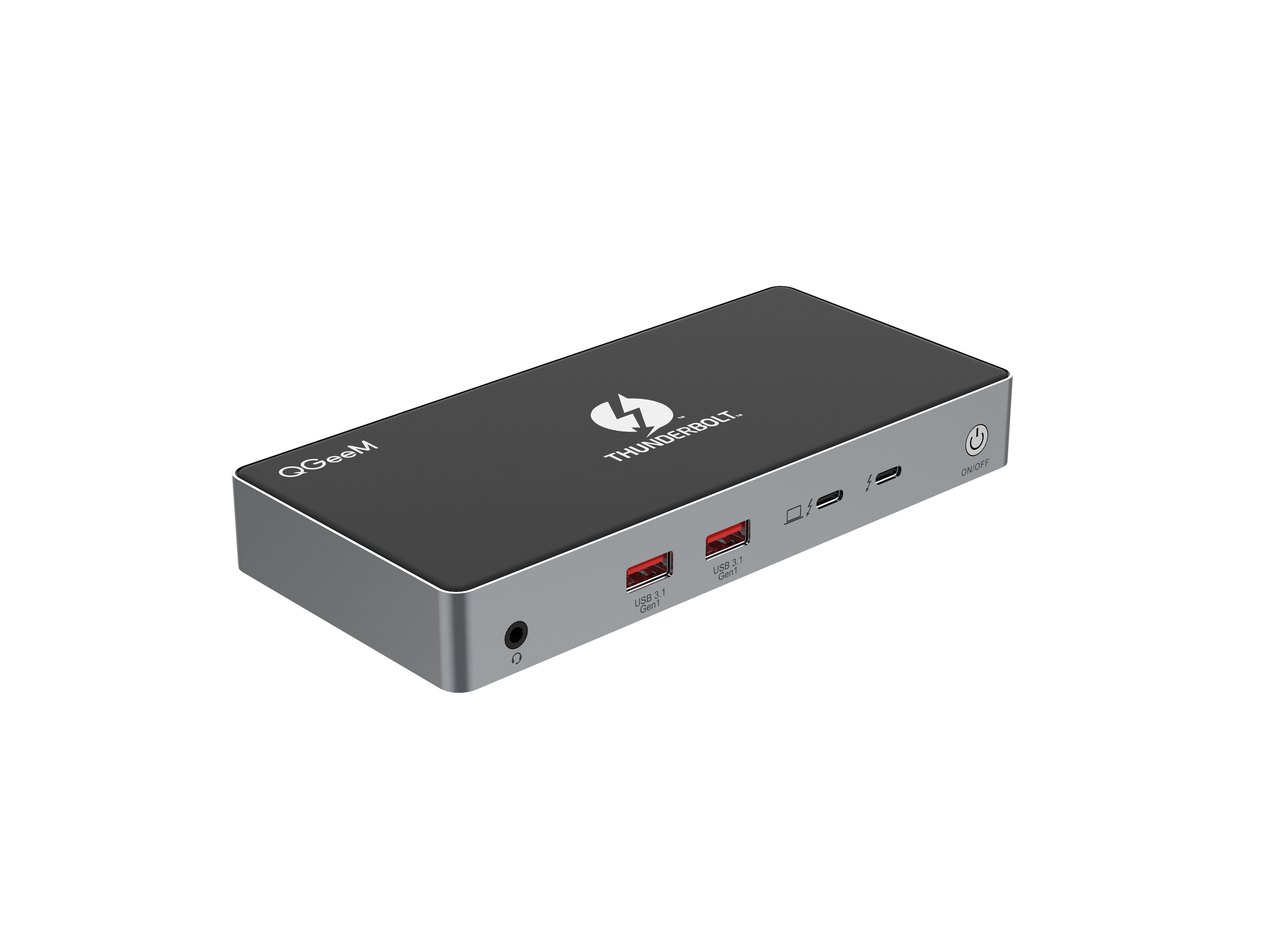

LTT Thunderbolt3 Docking Station 8K with PD60W

  • Category: Dock
Shenzhen LTT Electronic Co.,Ltd.
Operating System:
Operating System:
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
Thunderbolt Version:
Thunderbolt 3

T3101 Thunderbolt 3 Titan USB-C 8K DP display and 60Wat charged of power delivery Docking Station. Upstream USBC port (TB3 usbc port with Laptop icon)connects to your Windows or Mac OS X laptop through a single Thunderbolt 3 (USB-C to C) cable. Downstream USBC port (TB3 usbc port without Laptop icon) allowing you to daisy chain up to six Thunderbolt devices and provide 15W power to the Thunderbolt device. Total four USB downstream ports to extension USB devices. connectivity including two 10G USBA port and two 5G USB-A ports .features addition of a Gigabit Ethernet port, 3.5mm stereo jack for audio output and mic in,and usb3.0 card reader
Provides 60W of upstream(usb c port with computer icon) power to Thunderbolt 3 PC systems and MFDP PC systems.
Provides standard Thunderbolt downstream port*1(usb c port without computer icon)
one DP 1.4 Display support for HBR (2.7GHz), HBR2 (5.4GHz) and HBR3 (8.1GHz), maximum resolution up to 8K/30Hz.
Downstream two USB-A Gen2 ports provide 10Gps data rate transfer.
Downstream two USB-A Gen1 ports provide 5Gps data rate transfer.
Expand a Gigabit Ethernet network provide secure, reliable high speed wired networks.
Expand a combo audio 4-pole jack provide audio headset and microphone.
Expand a UB3.0 Card reader. Support SD and TF card write and read same time.
