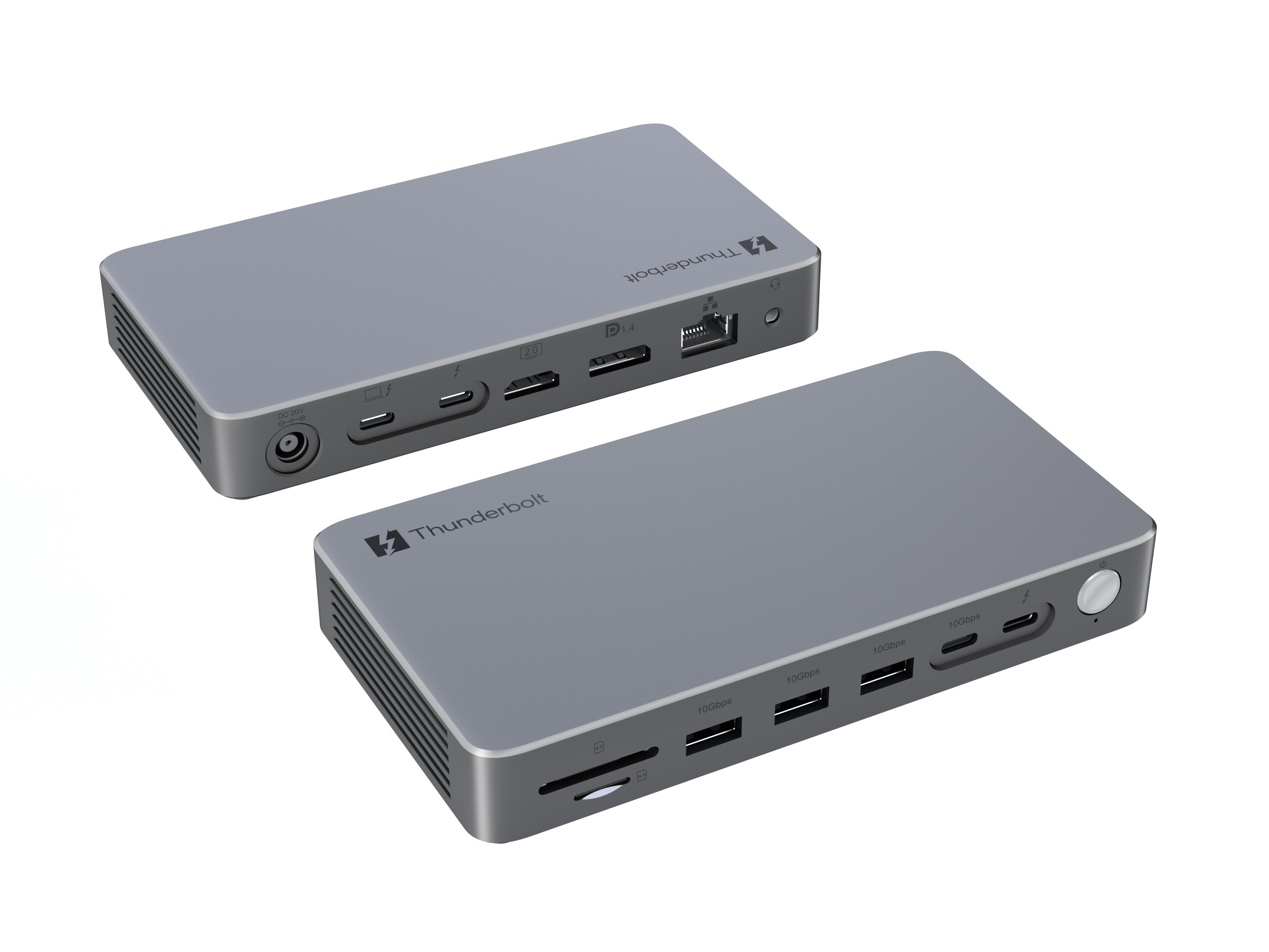

Guanchen Thunderbolt5 SSD Dock

  • Category: Dock
Shenzhen Guanchen Electronics Co., Ltd.
Operating System:
MacOS
Operating System:
Windows
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
3
Thunderbolt Version:
Thunderbolt 5

Guanchen Thunderbolt5 SSD Dock

Upstream:
Thunderbolt 5：Max 80G/120Gbps, 140W Upstream Charging

Downstream:
Stream1：Thunderbolt 5 Port 1: 80G/120Gbps, 30W downstream Charging
Stream2：Thunderbolt 5 Port 2: 80G/120Gbps, 15W downstream Charging
Stream3：HDMI*1(8K@30Hz or 4K@120Hz)
Stream4：Display Port*1(8K@30Hz or 4K@120Hz)

USB-C 10G *1
USB-A 10G *3
SD(UHS-II) *1(312MBps)
TF(UHS-II) *1(312MBps)
Lan Port *1(10/100/1000/2500 Mbps)
3.5mm Combo Audio Jack *1
DC 180W (Smart power, Max 140W host charging）
M.2 Slot: NVme 2280 Gen4x4(Max 7000MBps)
