CalDigit TS5 Plus

  • Category: Dock
CalDigit
Operating System:
MacOS
Operating System:
Windows
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
3
Thunderbolt Version:
Thunderbolt 5

The TS5 Plus is by far the most powerful Thunderbolt 5 Dock. This next-generation dock is compatible with Thunderbolt 5, Thunderbolt 4, Thunderbolt 3, USB4 v2 or USB4 host devices. With the Space Black color, TS5 Plus can match perfectly with your latest Apple and Windows laptops while fully utilizing Thunderbolt 5 bandwidth from builtin Thunderbolt, USB and PCIe controllers up to 120Gbps.

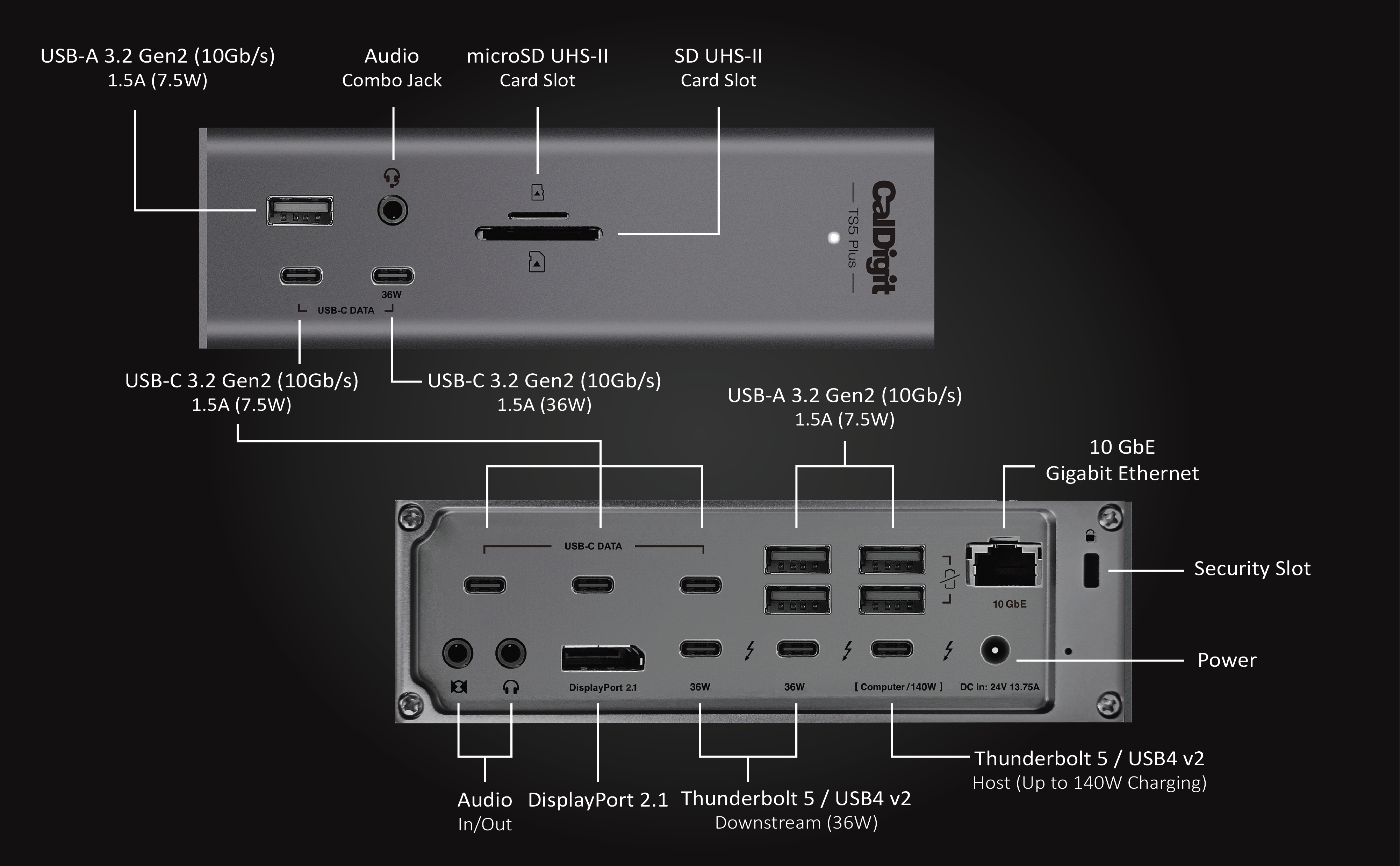

Interface

1 x Thunderbolt 5 Host Port (Up to 120Gb/s)
2 x Thunderbolt 5 Downstream Ports (80Gb/s)
5 x USB-C (10Gb/s)
5 x USB-A (10Gb/s)
1 x DisplayPort 2.1
1 x SD 4.0 (UHS-II)
1 x microSD 4.0 (UHS-II)
1 x 10 Gigabit Ethernet
1 x Front Combo Audio In/Out (3.5mm)
1 x Rear Audio Out (3.5mm)
1 x Rear Audio In (3.5mm)
1 x DC In (24V 13.75A)

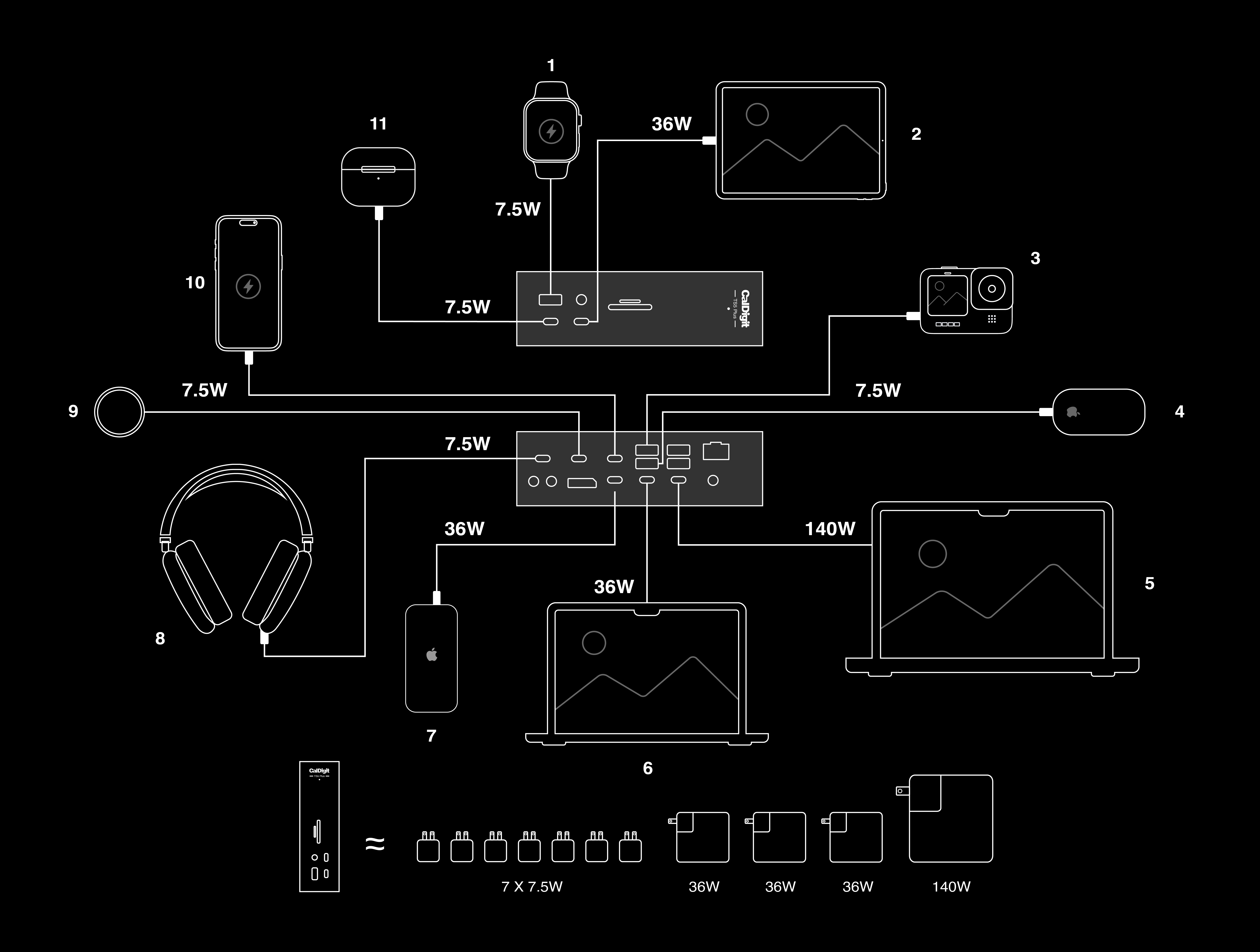

Power Delivery

Thunderbolt 5/USB4 Host Port: Up to 140W
Each Downstream Thunderbolt 4/USB4 Port: 36W
Front 36W USB-C Port: 36W
Remaining USB-C Ports: 7.5W
USB-A Ports: 7.5W
