Action Star Technology EB-IT01

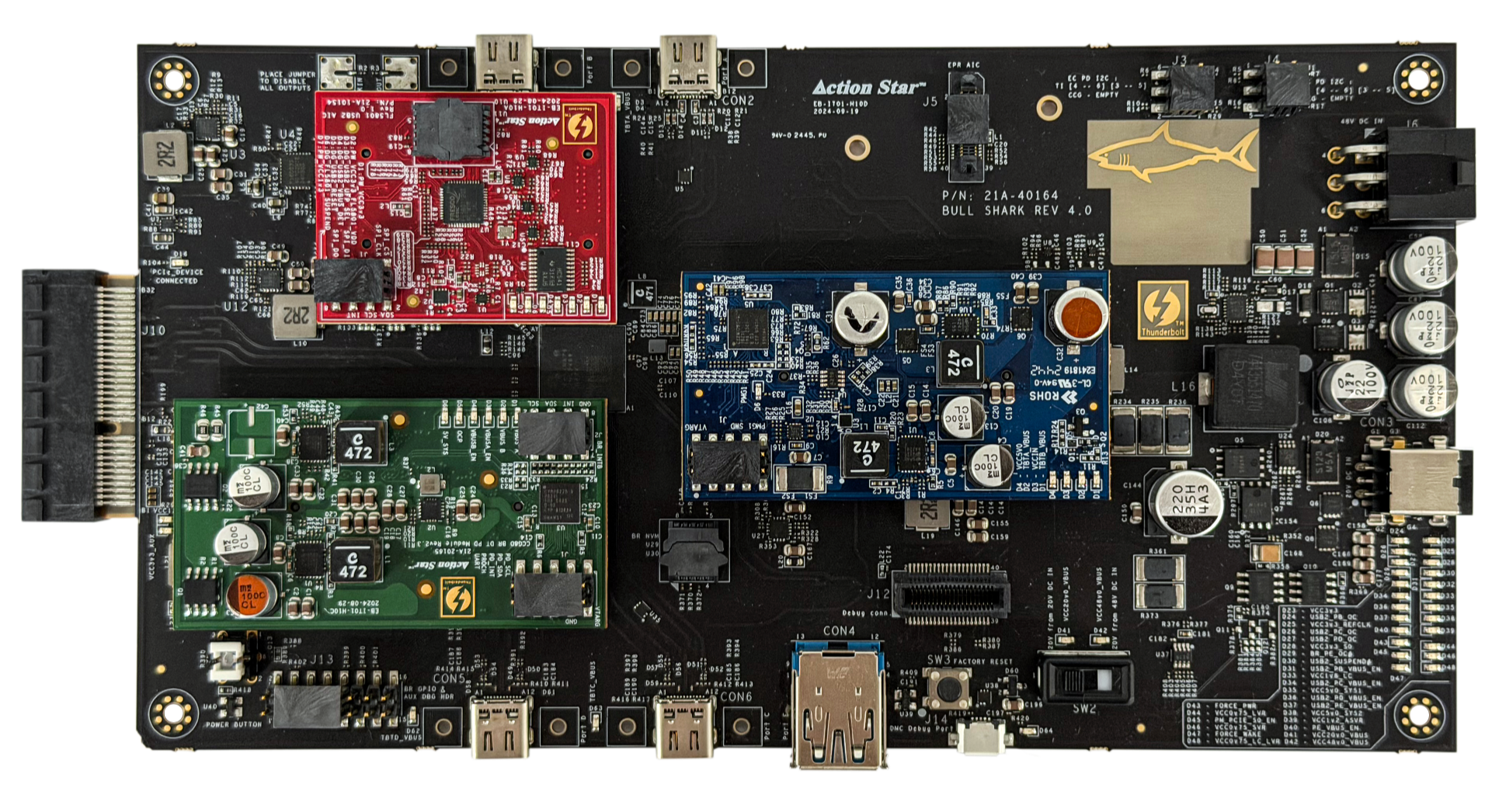

Thunderbolt 5 evaluation board based on Intel's Bull Shark EVB reference design.

Highlights:

- Thunderbolt 5 controller: JHL9480 (Barlow Ridge)
- PD AIC: Infineon PMG1 (DMC, Ports A/B PD)
- PD AIC: Infineon CCG8 (Ports C/D PD)
- USB 2.0 AIC: Parade FL5801

Upstream:

- 1x Thunderbolt 5

Downstream:

- 3x Thunderbolt 5
- 1x USB-A 10 Gbps
- 1x PCIe Gen4 x4

In the box:

- 1x Bull Shark EVB
- 3x AIC (PD, USB 2.0)
- 1x Power supply (180W, DC jack OD 7.5mm)
- 1x Thunderbolt 5 cable (1m)
