Broway Thunderbolt3 Dock

  • Category: Dock
Shen Zhen Broway Electronic Co.,Ltd
Operating System:
Operating System:
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
Thunderbolt Version:
Thunderbolt 3

Product description:

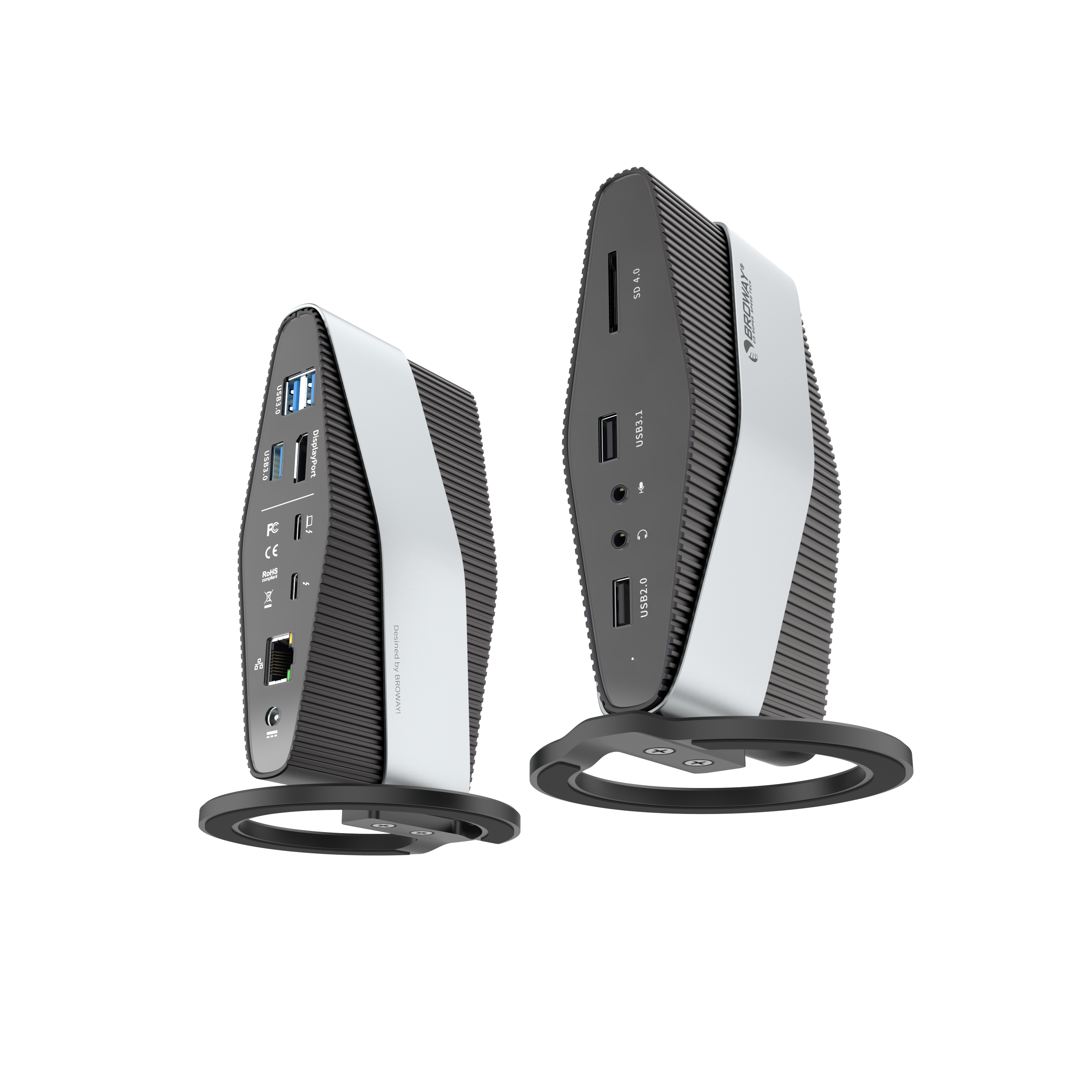

Thunderbolt 3 multifunction 12 in 1 40Gbps high speed docking, with Thunderbolt 3 cable, compatible with macOS / Windows, 2x DisplayPort connection (4K at 60 Hz), data transfer with 40 Gbps, 60W Power Delivery, SD card reader

1, Equipped with 2 USB3.1 Gen2 (A&C) ,1 USBA2.0 , USB A 3.0 ,4 K HDMI , RJ45, Audio & Mic, SD card reader slot,power delivery port(PD), expand more functions than ever.

2, USBA 3.1\USBC3.0 Ports : Allow you to connect keyboard, mouse, thumb drive and high speed Hard Disk to your laptop; provide high speed transfer rate up to 480Mbps/5Gbps/10Gbps, match your variety inquiry .

3, 4K display Adapter: This docking enables you to mirror the display to your HDTV, HD monitor or projector in up to ultra HD (3840*2160) at 60Hz or Full HD (1920*1080) at 120Hz resolution.

4, 1Gigabit Ethernet port: Connect your laptop to ethernet and get faster downloads/upload connection up to 10/100/1000 Mbps, more stable video calls, less buffering, and less waiting around.

5, SD4.0 card slot: Support SDXC (up to 2TB), SDHC, SD @SD4.0 HSF-II, speed up to 300MB/s .

6, 3.5MM audio & mic jack:Standard 3.5mm audio port support 16 bit 48KHZ output.

7, Power delivery port:Power is shared between all dock-connected USB-C devices and adjusted based on needs. The Thunderbolt 3 multifunctional high speed docking delivers about 60W for charging a connected laptop .

8. Thunderbolt 3 40Gbps port: Offer a Thunderbolt 3 daisy chain connection, enable user to expend one more Thunderbolt 3 40Gbps output signal, support up to 40Gbps data transfer speed and DP1.4 display to largely extend your laptop.


20V 6A power adapter

70CM(2.3 ft) Thunderbolt 3 certified cable.
