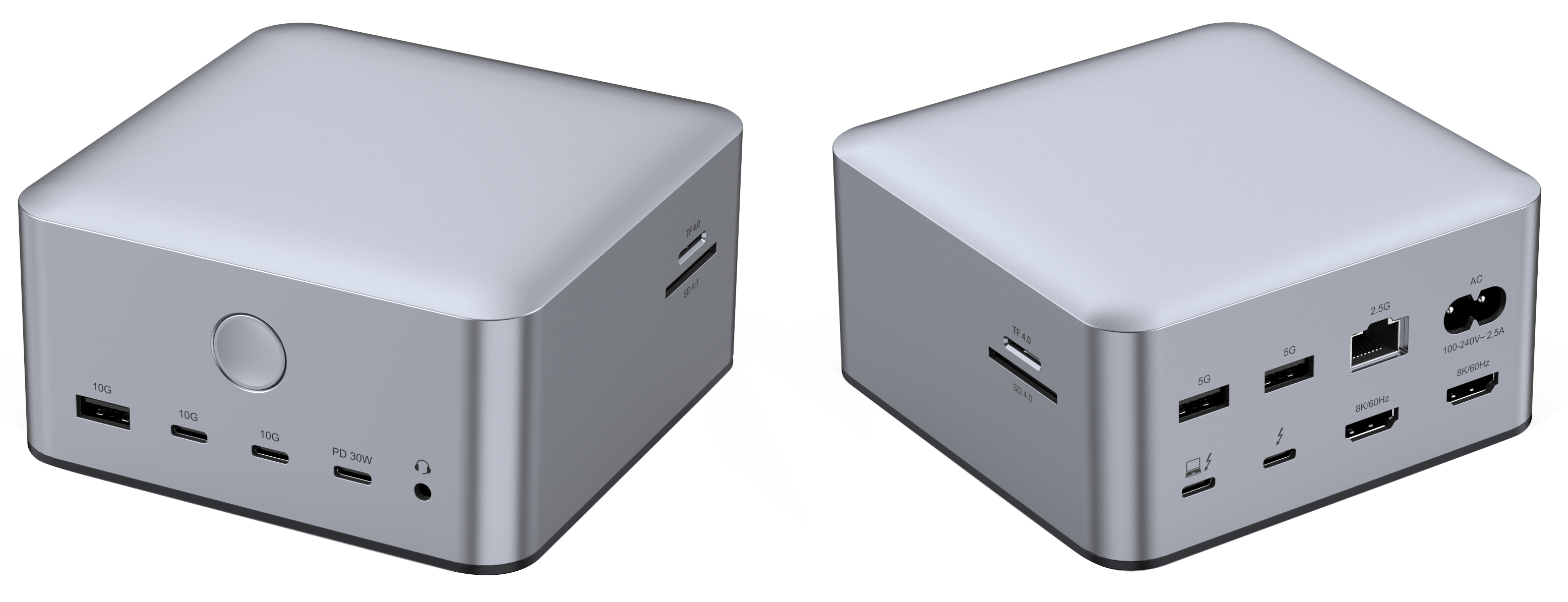

Input/Output Connector:

Upstream:Thunderbolt™ 5 Female x1（to host）
Downstream:
Thunderbolt™ 5 x1
HDMI x2(Max 7680x4320@60Hz )
USB-C PD30W*1(charging for phone,pad)
USB-C 10G x2
USB-A 10G x1(max 1.5A)
USB-A 5G x2
SD/TF 4.0 x1(312MBps)
RJ45 x1(2.5G)
3.5mm Audio Jack x1(384KHz)
AC Power Jack x1(Max 180W power in)

Introduction:

This is a Thunderbolt™ certified Thunderbolt™5 docking station that provides the most advanced, efficient, and versatile I/O solution available with up to 80Gbps or 120Gbps for data and video.
One Thunderbolt 5 port allows you to create five daisy chains of devices, or connect to one max 7680x4320@120Hz monitor. Two HDMI ports enable you to connect to HDMI displays with max 7680x4320@60Hz per port. These three ports can output dual (max 8K/60Hz+8K/30Hz), or max triple (max 4K/144Hz*3) for videos output simultaneously when used with some Windows Thunderbolt 5 laptops.
There are 5 USB data ports (2 Type-C 10G, 1 USB-A 10G, 2 USB-A 5G) for data transmission, and one USB-C charging port supports up to 30W PD charging for mobile phones, iPads, and more. The RJ45 port supports a maximum 2.5G bandwidth for ultra-fast Ethernet. The 3.5mm audio jack allows you to connect headphones for enjoying music. SD/TF supports SD4.0 with data transmission rate of 312MBps
Additionally, an AC power jack for connecting the AC power cable and
the DOCK is Powered by a built-in 180W AC power adapter, the dock employs Smart Power technology to support dynamic power allocation.

It is designed for Thunderbolt 5 or Thunderbolt 4 based PCs and Thunderbolt 3 or newer Macs utilizing the latest macOS

Features:

1.Adopting Barlow Ridge solution
2.Designed for Thunderbolt 5 or Thunderbolt 4 based PCs and Thunderbolt 3 or newer Macs utilizing the latest macOS
3.Support ultra-fast data transfer rates of up to 80Gbps, with Bandwidth Boost technology that can enhance performance to a staggering 120Gbps.
4.1 Thunderbolt 5 downstream port allows you to create five daisy chains of devices
5.1 Thunderbolt 5 downstream port supports Type-C dongle/adapter/dock, not support PD power adapter
6.1 Thunderbolt 5 downstream port theoretically supports max 8K/120Hz
7.2 HDMI ports support max 7680x4320@60Hz video output per port
8.Above 3 video ports allow to output dual (max 8K/60Hz+8K/30Hz), max triple (max 4K/144Hz*3) for videos output at the same time when used with some Windows Thunderbolt 5 laptops.
9.5 USB data ports (2 Type-C 10G, 1 USB-A 10G, 2 USB-A 5G) for data transmission, and one USB-C charging port supports up to 30W PD charging for mobile phones, iPads, and more.
10.The RJ45 port supports a maximum 2.5G bandwidth for ultra-fast Ethernet.
11.The 3.5mm audio jack allows you to connect headphones for enjoying music.
12.SD/TF supports SD4.0 with a maximum data transmission rate of 312MBps.
13.1 AC Jack supports max 180W power in
14.Support smart power which means it will reallocate power dynamically according to the actual power consumption of each port.
15.Compatibility Details:
Windows 11 version supported Thunderbolt 5 host
Windows 10 or 11 version supported Thunderbolt 4 host
MacOS 14.4 or above version supported Thunderbolt 4 or USB4 host
MacOS 15.0 or above version supported Thunderbolt 3 host
