Input/Output Connector：

Upstream：Thunderbolt™ 5 Female x1（to host）
Downstream：
Thunderbolt™ 5 x2，HDMI x1 (Max 7680x4320@60Hz ) or DisplayPort x1 (Max 7680x4320@60Hz )，
USB-C 10G x2(one supports PD 30W output)，USB-A 10G x1，USB-A 5G x2，SD/TF 4.0 x1(312MBps)，RJ45 x1(2.5G)，3.5mm Audio Jack x1(384KHz)，DC Power Jack x1(180W)

Introduction：

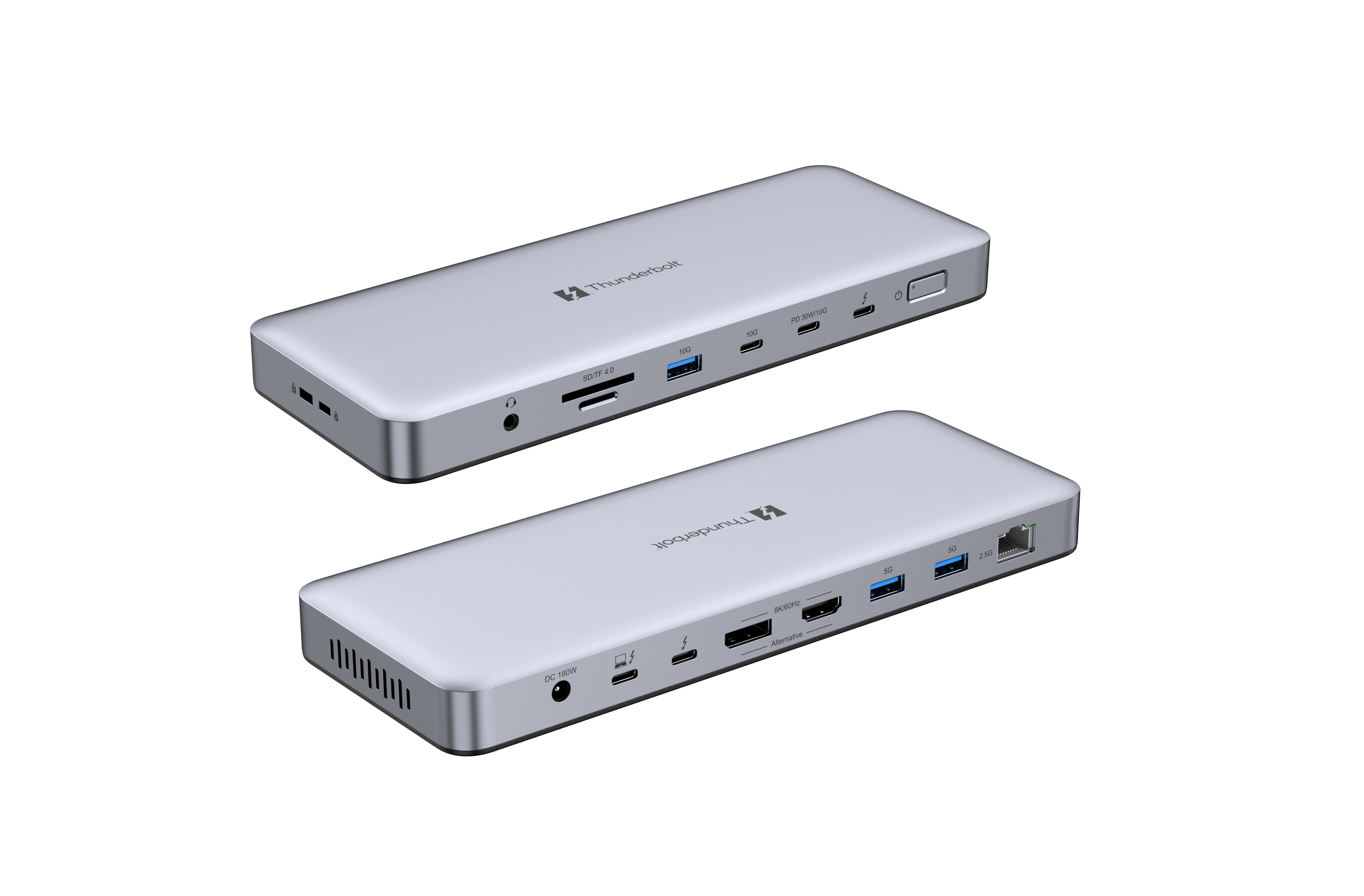

This is a Thunderbolt™5 portable dock that provides the most advanced, efficient, and versatile I/O solution available with up to 80Gbps or 120Gbps for data and video.
Two Thunderbolt 5 ports allow you to create five daisy chains of devices per port, or connect to two 7680x4320@120Hz monitors. One HDMI and one DisplayPort ports enable you to connect to HDMI or DisplayPort displays with max 7680x4320@60Hz per port. These four ports theoretically can output dual 8K/60Hz, or max triple 4K/144Hz for videos output simultaneously when used with some Windows Thunderbolt 5 laptops.
There are 5 USB data ports (2 Type-C 10G, 1 USB-A 10G, 2 USB-A 5G) for data transmission, and one of the USB-C 10G ports supports up to 30W PD charging for mobile phones, iPads, and more. The RJ45 port supports a maximum 2.5G bandwidth for ultra-fast Ethernet. The 3.5mm audio jack allows you to connect headphones for enjoying music. SD/TF supports SD4.0 with data transmission rate of 312MBps
Additionally, it supports smart power function which enables to distribute power according to the power consumption of the connected device, making full use of external power supply. Self-powered from DC power adapter with max 140W for host, max 180W for host and Dock. It is designed for TBT5/TBT4/USB4 based PCs and compatible with TBT3/DP-Alt-mode PCs.

Features ：

1. Adopting Barlow Ridge solution.Designed for TBT5/TBT4/USB4 based PCs and compatible with TBT3/DP-Alt-mode PCs.
2. Support ultra-fast data transfer rates of up to 80Gbps, with Bandwidth Boost technology that can enhance performance to a staggering 120Gbps.
3. 2 Thunderbolt 5 downstream ports allow you to create five daisy chains of devices per port
4. 2 Thunderbolt 5 downstream port supports Type-C dongle/adapter/dock, not support PD power adapter
5. 2 Thunderbolt 5 downstream port theoretically supports max 8K/120Hz per port
6. 1 HDMI and 1 DisplayPort ports support max 7680x4320@60Hz video output per port
7. When both video ports (1 HDMI and 1 DisplayPort) are connected, only one port allows to work, HDMI is prior to DisplayPort
9. Above 4 video ports theoretically allow to output dual 8K/60Hz, or max triple 4K/144Hz for videos output at the same time when used with some Windows Thunderbolt 5 laptops.
8. 5 USB data ports (2 Type-C 10G, 1 USB-A 10G, 2 USB-A 5G) for data transmission, and one of the USB-C 10G ports supports up to 30W PD charging for mobile phones, iPads, and more.
9. The RJ45 port supports a maximum 2.5G bandwidth for ultra-fast Ethernet.
10. The 3.5mm audio jack allows you to connect headphones for enjoying music.
11. SD/TF supports SD4.0 with a maximum data transmission rate of 312MBps.
12. Self-powered from DC power adapter with max 140W for host, max 180W for host and DOCK.Support smart power which enables to flexibly distribute power to PC and DOCK in real time according to the consumption of connected devices
