Input/Output Connector:

Upstream:
Thunderbolt 5：Max 80G/120Gbps
Downstream:
Stream1&2：HDMI*2(max 8K/60Hz or 4K/144Hz)
Stream3：Thunderbolt 5 Port 1: max 80Gbps or 120Gbps, max 8K/120Hz theoretically, 15W downstream Charging
USB-C 10G*1(PD30W)
USB-C 10G*1
USB-A 10G*1
USB-A 5G*2
SD/TF4.0*1(312MBps)
RJ45*1(2.5G)
3.5mm Combo Audio Jack*1(384KHz)
DC 180W (Smart power, max 140W host charging）
M.2: NVme PCIe Gen4x4(Max 6000MBps)

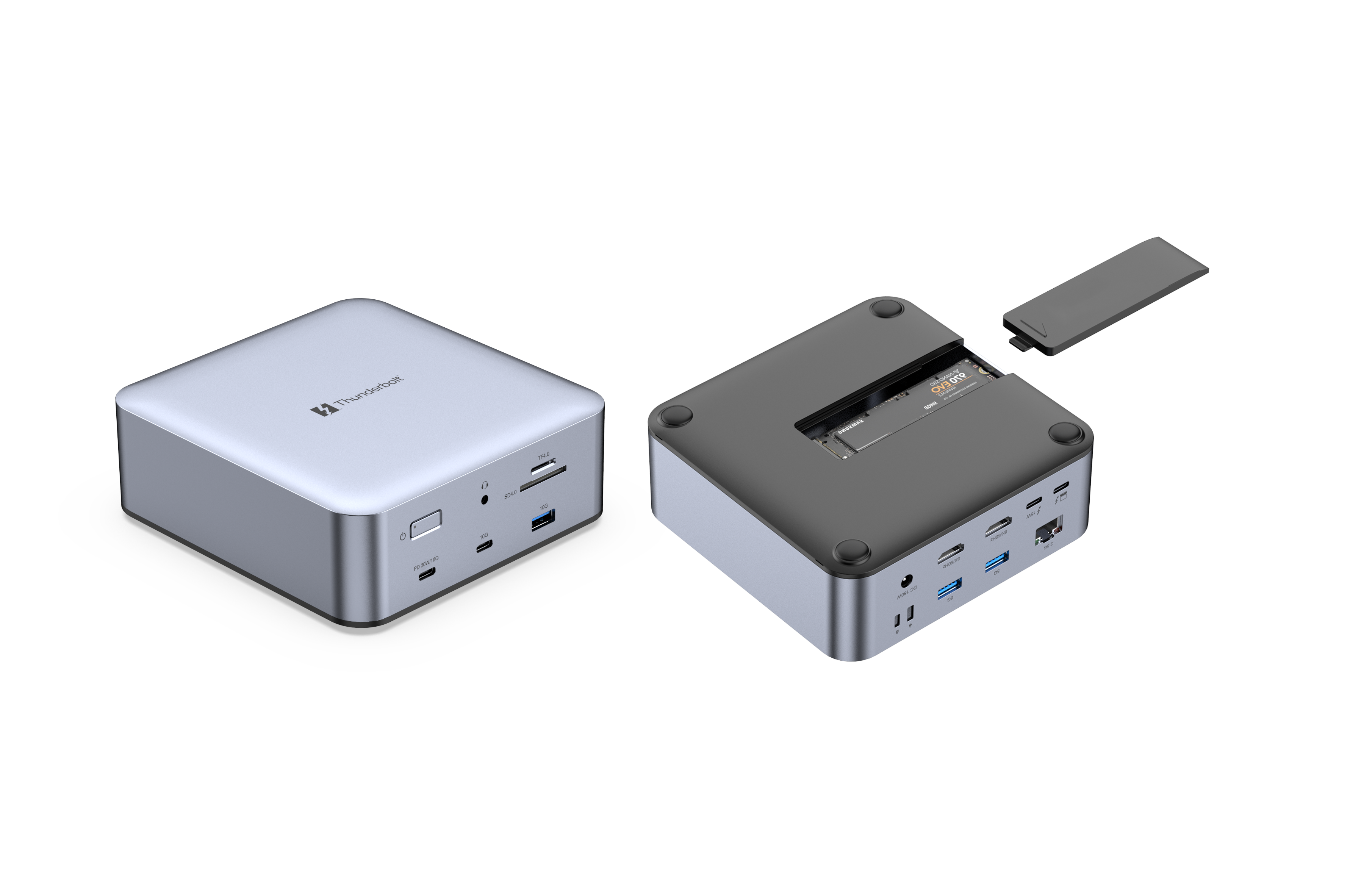

Introduction:

This is a Thunderbolt™ certified Thunderbolt™5 portable dock that provides the most advanced, efficient, and versatile I/O solution available with up to 80Gbps or 120Gbps for data and video.
One Thunderbolt 5 port allows you to create five daisy chains of devices, or connect to one 7680x4320@120Hz monitor. Two HDMI ports enable you to connect to HDMI displays with max 7680x4320@60Hz per port. These three ports theoretically can output max dual 8K/60Hz, or max triple 4K/144Hz videos output simultaneously when used with some Windows Thunderbolt 5 laptops.
There are 5 USB data ports (2 Type-C 10G, 1 USB-A 10G, 2 USB-A 5G) for data transmission, and one of the USB-C 10G ports supports max 30W PD charging for mobile phones, iPads, and more. The RJ45 port supports max 2.5G bandwidth for ultra-fast Ethernet. The 3.5mm audio jack allows you to connect headphones for enjoying music. SD/TF supports SD4.0 with data transmission rate of 312MBps. The NVMe M.2 port allows you to connect to an SSD for data storage.
Additionally, it supports smart power function which enables to distribute power according to the power consumption of the connected device, making full use of external power supply. Self-powered from DC power adapter with max 140W for host, max 180W for host and Dock. It is designed for TBT5/TBT4/USB4 based PCs and compatible with TBT3/DP-Alt-mode PCs.

Features:

PCB is halogen-free, plastic shell with PCR material, which is designed for a Greener Future
Adopting Barlow Ridge solution
Designed for TBT5/TBT4/USB4 based PCs and compatible with TBT3/DP-Alt-mode PCs.
Support ultra-fast data transfer rates of up to 80Gbps, with Bandwidth Boost technology that can enhance performance to a staggering 120Gbps.
1 Thunderbolt 5 downstream port allows you to create five daisy chains of devices
1 Thunderbolt 5 downstream port supports Type-C dongle/adapter/dock, not support PD power adapter
1 Thunderbolt 5 downstream port theoretically supports max 8K/120Hz
2 HDMI ports support max 7680x4320@60Hz video output per port
Above 3 video ports theoretically allow to output max dual 8K/60Hz , max triple 4K/144Hz for videos output at the same time when used with some Windows Thunderbolt 5 laptops.
5 USB data ports (2 Type-C 10G, 1 USB-A 10G, 2 USB-A 5G) for data transmission, and one of the USB-C 10G ports supports up to 30W PD charging for mobile phones, iPads, and more.
The RJ45 port supports max 2.5G bandwidth for ultra-fast Ethernet.
The 3.5mm audio jack allows you to connect headphones for enjoying music.
SD/TF supports SD4.0 with data transmission rate of 312MBps.
The NVMe M.2 port allows you to connect to an SSD for data storage, and it supports PCIe Gen4*4(16G*4Lane) with max 6000MB/s writing and reading speed
Self-powered from DC power adapter with max 140W for host, max 180W for host and DOCK
Support smart power which enables to flexibly distribute power to PC and DOCK in real time according to the consumption of connected devices
