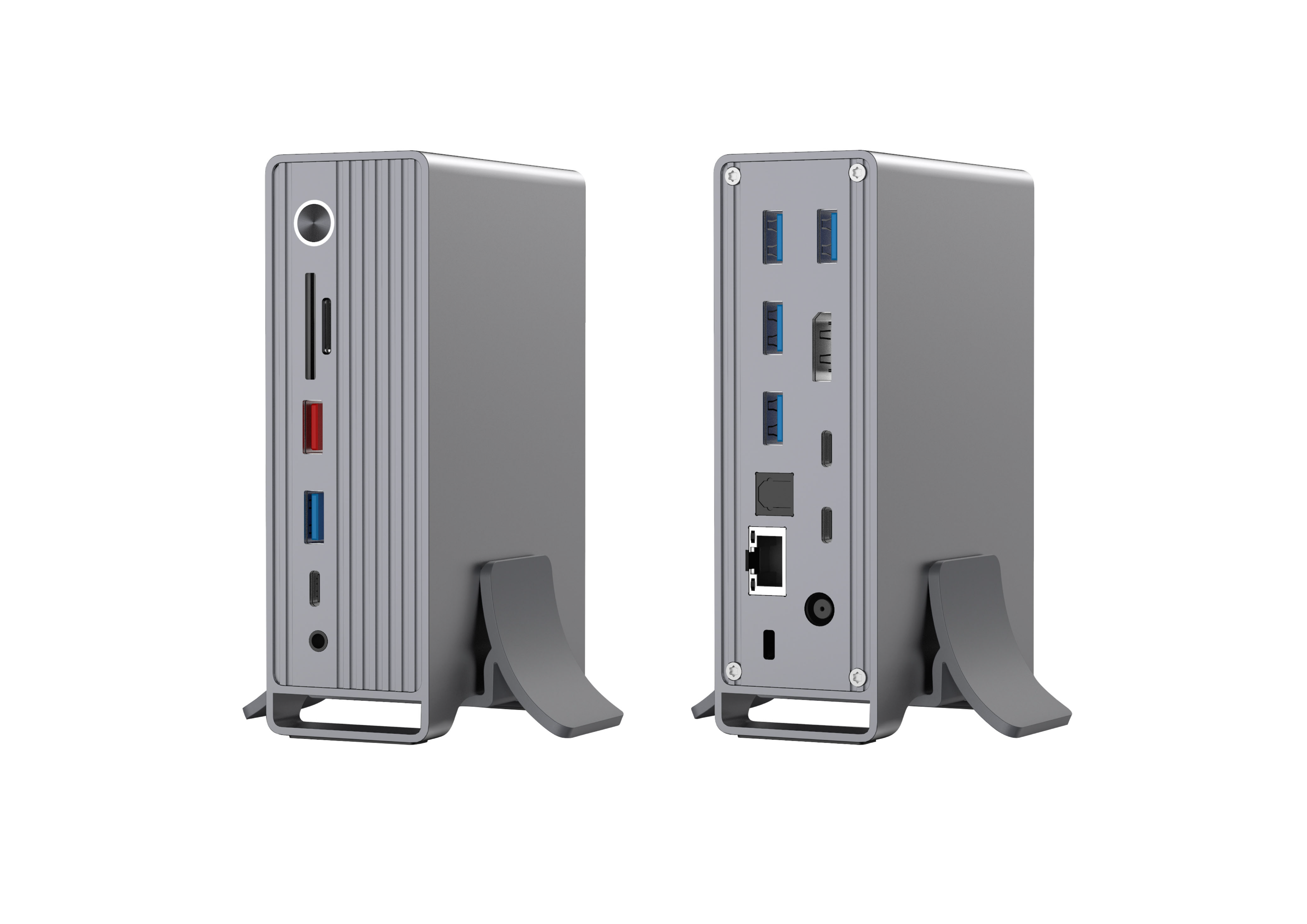

15-in-1 Thunderbolt™ 3 Daisy Chain Docking Station (Model: TB3-DOCK07)

  • Category: Dock
Operating System:
Operating System:
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
Thunderbolt Version:
Thunderbolt 3

Product Description:
This is an Thunderbolt Certified 15-in-1 Thunderbolt™ 3 Docking Station. With Intel Thunderbolt 3 Titan Ridge solution, this docking enables you to extend your TBT3/Multi-Function DisplayPort (MFDP) Type-C host to be multiple ports like video/USB/Ethernet/SD/Micro SD/audio ports which can be connected to displays, USB devices, Ethernet source,memory cards, headset,etc, offering an integrated solution for high quality office working and home entertainment. Besides, it has a USB-A smart charging port which is compliant with multiple charging protocol, providing quick charging experience when charging mobile devices. A 180W power adapter is provided to support the functioning of this product and meanwhile charge for the host with max 85W.

Thunderbolt™ 3 Receptacle x2
DC Power Jack x1
DisplayPort Receptacle x1
RJ45 Receptacle x1
USB3.2-A 5G Receptacle x3
USB3.2-A 10G Receptacle x2
USB Type-C 10G Receptacle x1
SD4.0 socket x1
mSD4.0 socket x1
USB-A Charging x1
Audio 3.5mm combo jack x1

Support to work on Thunderbolt3 or Multi-Function DisplayPort (MFDP) Type-C Host;
When working on Thunderbolt3 Host (Mac OS and Windows),the features of each port are as below:
Power Switch: be able to control the power on/off of the Docking Station; when connect to DC power,the default state is power off; touch the button to switch the machine state.
Thunderbolt 3 Port 1 (near DC port): support input bandwidth up to 40Gbps (data+video) and host charging up to 85W;
Note: It is required to connect this product with host via a certified TBT3 cable, a non-TBT3 cable may result in non-function.
Thunderbolt 3 Port 2 (near DP port): support TBT3 daisy chain up to 6 levels with source capability of 15W (5V/3A); support to connect TBT3 / Type C device; support DP1.4 resolution up to 8k/30Hz;
DP port: support 4 lane DP1.4 resolution up to 8K/30Hz; support dual video output(MST): TBT3 port + DP port, resolution up to 8K/30Hz + 4K/30Hz;
Type-C Female: support max 10Gbps data transmission and max 1.5A downstream charging;
USB-A Female 5GX3: support max 5Gbps data transmission and max 900mA downstream charging per port;
USB-A Female 10GX2: support max 10Gbps data transmission and max 900mA downstream charging per port;
USB-A Quick Charging PortX1: for smart charging only, not for data transmission; support QC2.0 / QC3.0 / Apple 5V2.4A / AFC / FCP;
Audio 3.5mm combo jack: support phone out with digital audio max 96KHz/24bit sampling rate; mic in with digital audio max 96KHz/24bit sampling rate; support CTIA&OMTP auto detection;
Toslink SPDIF port: support digital audio max 96KHz/24bit sampling rate;
SD4.0 & Micro SD4.0 port: support dual LUN UHS-II, support UHS-I: SDR12/ SDR25/ SDR50/ DDR50/ SDR104, support UHS-II: Full Duplex Mode and Half Duplex Mode. Up to 312MB/s data rate; support 2 card slots to work simultaneously;
RJ45: support Gigabit Ethernet (10M/100M/1000M);
DC Jack: support 180W(20V, 9A) power supply

Operation Temperature: 0℃ to +45℃
Storage Temperature: 0℃ to +70℃
Size: 139*44*90(mm)
Weight: 575g
