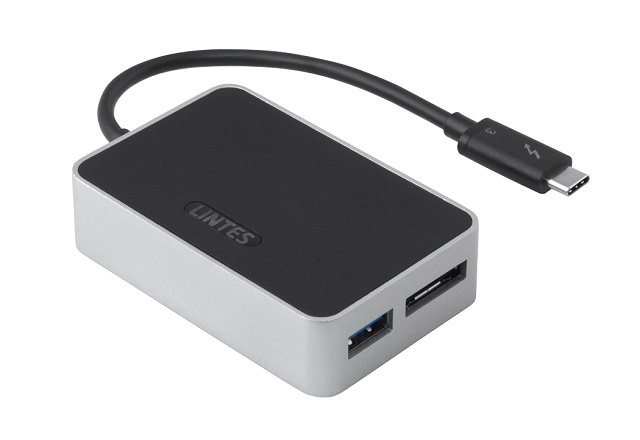

LINTES Thunderbolt 3 eSATA+USB3.1 Dongle

  • Category: Adapter/Expansion
Lintes Technology
Operating System:
Operating System:
Self or Bus Powered:
Bus Powered
Thunderbolt Version:
Thunderbolt 3

* An electrical cable that transform Thunderbolt 3 signal to eSATA and USB 3.1 signal in order to provide great responsiveness with data and an easy turn-key solution for Thunderbolt applications and devices
* Can only be used for last Thunderbolt end-point devices in a daisy-chain link
* Tether design is optimized with respect to providing tethers with high flexibility, good durability, natural buoyancy and minimum drag.


* Operating Voltages: VBUS: 5V
* Support Thunderbolt 3 operation
* Transmission data rate: TBT3 side: 40Gbps
* Max Power Consumption : 7.5W
* Support USB power : 5V/ 900mA
* Support USB 3.1: 1.5/12/480Mbps,5/10Gbps
* Support SATAIII(6.0Gbps), SATAII(3.0Gbps), SATAI(1.5Gbps), eSATA: 6 Gbps
* Outside diameter: 4.2mm
* OS Compatibility
-Windows 10 (32-bit or 64-bit), 8 / 8.1 (32-bit or 64-bit), 7 (32-bit or 64-bit)
-macOS 10.12 (Sierra)
* Storage Temperature: Intel Thunderbolt Standard -20~85°C ambient.
* Operation Temperature: Intel Thunderbolt Standard 0°C ~40°C ambient.
