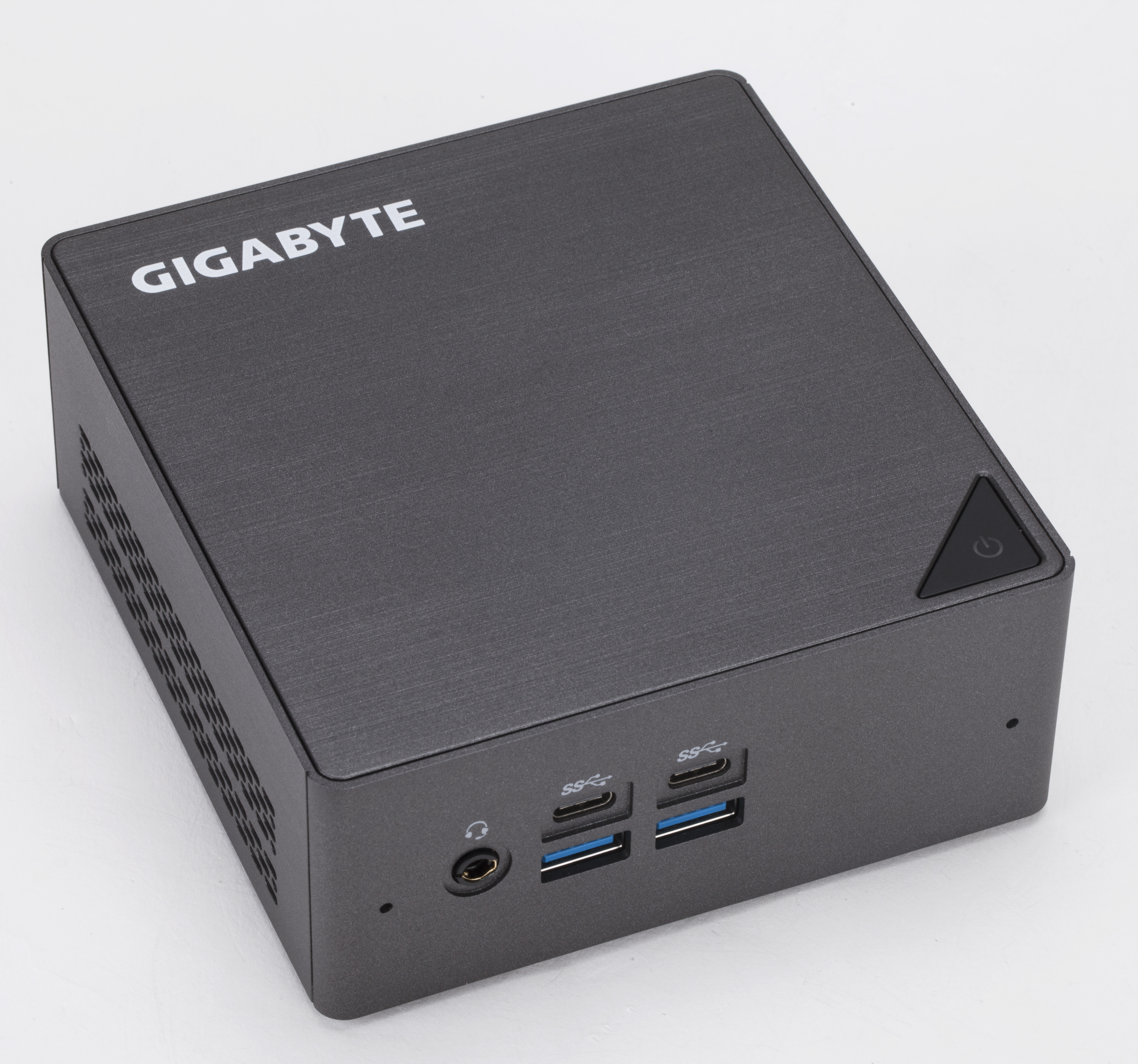

GB-BKi7HT2-7500

  • Category: Notebook/Computer
GIGABYTE
Operating System:
Windows
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
1
Thunderbolt Version:
Thunderbolt 3

The new BRIX raise the bar once again with the new Intel® 7th Gen Core™ processor family—delivering more responsive performance than ever before. This 7th Gen Core processor utilizes a power efficient microarchitecture, advanced process technology, and silicon optimizations to deliver faster performance than previous generation processors. By leveraging Turbo Boost 2.0 Technology, performance and power is dynamically controlled—for cores and graphics—boosting performance precisely when it is needed, and saving energy when it counts.

The new Thunderbolt™ 3 protocol, which also supports USB 3.1 over a Type-C™ connector on the back panel of the GIGABYTE BRIX T models, brings an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation of Thunderbolt! This incredible increase in bandwidth is also accompanied with support for different protocols such as DisplayPort 1.2, which is able to drive a 4K resolution display at 60 FPS, and USB 3.1, also backwards compatible with USB 3.0 and USB 2.0, opening up a world of new possibilities.

Features Latest Intel® 7th generation Core Processors
Ultra compact PC design at only 0.6L (46.8 x 112.6 x 119.4mm)
Supports 2.5” HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
1 x M.2 SSD (2280) slot
2 x SO-DIMM DDR4 slots (2133 MHz)
Intel® IEEE 802.11ac, Dual Band Wi-Fi & Bluetooth 4.2 NGFF M.2 card
Intel® HD Graphics 620
1 x Thunderbolt™ 3 port (USB 3.1 Type-C™ )
4 x USB 3.0 (2 x USB Type-C™ )
1 x USB 2.0
HDMI 2.0
HDMI plus Mini DisplayPort Outputs (Supports dual displays)
Intel Gigabit Lan
Headphone/Microphone Jack
VESA mounting Bracket (75 x 75mm + 100 x 100mm)
